Research Article - (2017) Volume 6, Issue 2

Training of Multilayer Perceptrons with Improved Particle Swarm Optimization for the Heart Diseases Prediction

Kelwade JP1* and Salankar SS2
1Bapurao Deshmukh College of Engineering, RTM Nagpur University, India
2G. H. Raisoni College of Engineering, RTM Nagpur University, India
*Corresponding Author: Kelwade JP, Bapurao Deshmukh College of Engineering, RTM Nagpur University, India, Tel: +917755903397 Email:


The study of Heart rate variability is recently gained momentum for an estimation of heart health. This paper suggests a new approach for enhancement of the prediction accuracy of Multi-Layer Perceptrons (MLP) neural network using improved Particle Swarm Optimization (IPSO) technique. The IPSO computes the weights and biases of MLP for the more accurate prediction of the cardiac arrhythmia classes. This study for heart condition prediction involves selection of Three types of heart signals including Left Bundle Branch Block (LBBB), Normal Sinus Rhythm (NSR), Right Bundle Branch Block (RBBB) from MIT-BIH arrhythmia database, formation of heart rate time series, extraction of features from RR interval time series, implementation of training algorithm and prediction of arrhythmia classes. Several experiments on the proposed training method are carried out to superior the convergence ability of MLP. The experimental results gives comparably better evaluation over gradient based Back-Propagation (BP) learning algorithm.

Keywords: Cardiac arrhythmia; Particle swarm optimization; Multilayer perceptron; Heart rate variability; Back propagation learning; Training algorithm


The graphical depiction of the heart beats in the form of electrical signals is known as electrocardiogram (ECG). The abnormal rhythms of the heart beats are termed as cardiac arrhythmias. Some arrhythmias are life threatening. Therefore there is need to identify the heart conditions of cardiac patients. The identification of cardiac arrhythmias in early stage can save the patients from sudden cardiac arrest.

A variation in the consecutive cardiac beats is referred to as heart rate variability (HRV). By means of HRV analysis technique cardiac health can usually be computed. An estimation of HRV is recently being adopted as investigation tool for recognition of heart abnormalities in cardiology.

Some methods have been suggested in reported literature for recognition, classification or prediction of cardiac arrhythmia. Özbay and Karlik presented Artificial Neural Network (ANN) and built up ECGWin Software to interpret and classify more number of cardiac arrhythmias [1]. Habboush et al. compared neural networks with Karhunen-LoGve transform for compression and classification [2]. Saini and Saini used multilayer perceptron (MLP) feedforward neural network to classify four arrhythmias [3]. Franklin and Wallcave utilized ANN to categorize heartbeat into 6 types with 85% correct identification rate [4].

Deshmukh and Patil proposed Empirical Mode Decomposition and feed-forward propagation neural network to classify different types of Abnormal beats [5]. Ozbay et al. studied MLP and fuzzy clustering Neural Network for classification of 10 different arrhythmias [6]. Wang et al. suggested methods to distinguish eight types of ECG using principal component analysis (PCA), linear discriminant analysis (LDA) and a probabilistic neural network (PNN) [7]. The generalized linear model (GLM) algorithm to discriminate arrhythmias classes using AR coefficients of normal and abnormal ECG signals [8,9].

These techniques are generally based on extraction of morphological and temporal features from processing of ECG signals. The main disadvantages of ECG signal processing for features detection are 1) requirement of large computation time and 2) Introduction of noise in the ECG at the time of processing. An alternative approach is to extract HRV signals from RR time intervals of ECG signal. The main advantages of HRV analysis for features detection include 1) RR time intervals are less prone to the noise and 2) HRV signals signify the function of autonomic nervous system (ANS) and cardiovascular system [10].

HRV signal is useful tool for estimation of overall cardiac health and condition of the ANS. Therefore, HRV analysis can be treated as valuable investigation tool in detection, prediction of arrhythmias classes in the medical field of cardiology [11].

Some of proposed approaches for analyzing the HRV signal in detection and prediction of cardiac arrhythmia classes are reported in the given literature.

Yaghouby et al. investigated four cardiac arrhythmias such as left bundle branch block, first degree heart block, Supraventricular tachyarrhythmia and ventricular trigeminy based on the Generalized Discriminant Analysis (GDA)feature reduction technique and MLP [10]. Acharya et al. proposed ANN and Fuzzy equivalence relationship for classification of eight types of cardiac arrhythmias [12]. Anuradha and Reddy employed non-linear methods such as Spectral entropy, Poincaré plot geometry, Largest Lyapunov exponent and detrended fluctuation analysis to extract features from HRV signal for fuzzy classifier [13]. Asl et al. studied four types of cardiac arrhythmias for adaptive-learning-rate neural network classifier adopting linear, nonlinear, and chaotic features of the RR interval signals [14]. Dallali et al. presented combined approach using fuzzy c-means (FCM) clustering, wavelet transform and PCA to classify four kinds of heart diseases [15]. Asl and Setarehdan proposed automatic detection and classification method using ANN classifier for five classes of arrhythmia [16].

Kelwade and Salankar predicted classes of cardiac arrhythmia with MLP and radial basis function Neural (RBFN) network [17,18]. Goshvarpour focused on the Lyapunov Exponents and Entropy features to train Quadratic classifier and compare the result with Fisher and k-Nearest Neighbor (k-NN) classifiers [19]. Kampouraki et al. used statistical methods and signal analysis techniques to extract features of heartbeat time series [20]. Rawther and Cheriyan investigated support vector machine (SVM) for Life threatening arrhythmias such as Ventricular Tachycardia (VT) and Ventricular Fibrillation (VF) to detect and classify by make use of temporal and wavelet features [21]. Asl et al. developed an effective algorithm based on GDA and SVM classifier using HRV [22].

This paper for prediction of arrhythmia classes is organized in remaining sections as follows. Materials and methods section presents the overall methods such as MLP and PSO. Followed by experimental results and discussions of the proposed algorithm. Finally, the paper ends with significant remarks in conclusion section.

Materials and Methods

The ECG records for analysis and prediction are captured from standard MIT-BIH arrhythmia database. The filtering of ECG signals is performed with bandpass filter to remove powerline interferences. Pan and Tompkins algorithm for detection of QRS complexes and then R peaks is utilized in this study. Three kinds of heart rhythms including LBBB, NSR and RBBB are selected. The Records 109, 233 and 118 of ECG signals possessing LBBB, NSR and RBBB rhythms are particularly selected. The RR interval time series (RRITS) signals from the records to estimate the HRV is detected. The segments of the RRITS signals to extract the features are formed. The features such as normalized Low Frequency (nLF) and High Frequency (nHF) power components, SD1/ SD2 ratio, Spectral Entropy (SE), Largest Lyapunov Exponent (LLE) and Hurst exponent (HE) extracted from HRV signal using linear and nonlinear methods are presented to train MLP for better prediction accuracy [12,13,16-18].

Training of multi-layer perceptrons

The MLP is a most popular multilayer feed-forward neural network. The adopted neurons configuration, shown in Figure 1, includes 6 neurons, 10 neurons and 3 neurons in input, hidden and output layers, respectively.


Figure 1: The MLP structure with 6:10:3 neurons configuration.

For prediction problems, The MLP is generally trained with a Back Propagation (BP) learning algorithm by computing the connection weights and biases. The BP learning algorithm, which is largely depends on selection of initial values of weights for faster convergence and a minimum generalization error, is an extension of the Least Mean Square (LMS) rule.

Many training algorithms have been reported in the literature to optimize the generalization errors and convergence speed of the MLP. Recently, extensive research and significant progress have been made in the area of nonlinear system. However, when a neural system is used to handle unlimited examples, including training and testing data, an important issue is how well it generalizes to patterns of the testing data, which is known as generalization ability. Many algorithms have been proposed so far to deal with the problem of appropriate weight-update by doing some sort of parameter adaptation during learning. Singhal and Wu illustrated the application of extended Kalman algorithm which converged quickly compared to BP algorithm but required more computation [23]. Sarkalehm and Shahbahrami suggested several training algorithms such as Gradient Decent algorithm (GDA) with adaptive Learning Rate, Resilient and Levenberg-Marquardt algorithms for MLP to classify Paced Beat (PB), Atrial Premature Beat (APB) and NSR [24]. Suykens and Vandewalle determined output weights of single hidden layer MLP classifier using SVM method [25].

Tzikas and Likas effectively utilized incremental Bayesian learning method for linear models to train the MLP [26]. Ni and Song provided online learning algorithm for the neural tracking control system [27]. Battiti reviewed first and second order optimization methods for feed forward neural networks learning [28]. Riedmiller and Braun proposed new learning algorithm-Resilient backPropagation (RPROP) for MLP to improve generalization error a gradient-descent algorithm [29].

Moller introduced new supervised learning algorithm, scaled conjugate gradient (SCG) to speed-up convergence rate than BP, conjugate gradient algorithm with line search (CGL), Broyden-fletcher- Goldfarb-Shanno (BFGS) memory less quasi-Newton algorithm [30]. Nasir et al. demonstrated ability of Bayesian Regulation algorithm and LM to train MLP and Simplified Fuzzy ARTMAP (SFAM) for classifying the acute leukemia cells in blood sample [31]. Sut and Celik predicted mortality in stroke patients using MLP trained with algorithms namely quick propagation (QP), LM, BP, quasi-Newton (QN), delta bar delta (DBD), and CGD [32]. Abid et al. proposed learning algorithm based on combination of Least Square (LS) and Least Fourth (LF) criterion [33].

In fact the gradient-based training algorithms often require large iterations so as to evade from being spellbound in local optima and tuning of learning rate. Numerous modifications have been suggested to overcome the limitations of the gradient-based algorithm.

The evolutionary approaches such as Genetic algorithm, Ant Colony Optimization, artificial bee colony, Cuckoo search, PSO are usually being used in avoiding local minima and improving convergence rate of training algorithm [34-40].

In latest years, swarm intelligence algorithm such as PSO has been applied to solve real life problems in the area of optimization [40].

Particle swarm optimization

The PSO algorithm replicates social intelligence of particle swarm namely flock of birds and school of fishes. PSO is most popular among other evolutionary algorithms because of ease of implementation and requirement of tuning of few parameters. PSO has recently been employed in the field of an optimization problem such as training of neural network [41].

In many literatures, the PSO has been proposed as an effective tool for training neural networks [42]. The basic PSO often get trapped in local optima and resulted in poor convergence. To efficiently control the local search and convergence to the global optimum solution, time varying acceleration coefficients (TVAC) are introduced in addition to the time varying inertia weight factor in PSO to estimate the new velocity of each particle and particles are reinitialized whenever they are stagnated in the search space [43].

The particle of the PSO possesses two characteristics namely position and velocity. A solution of any optimization problem contains updating of personal position and velocity in response with cognitive and social experience [40].

At current iteration time (t), current velocity vij and new position хij are modified using equation (1) and equation (2) respectively


Where w(t), c1 and c2, r1 and r2, pij(t) and pgj(t), хij(t) represent inertia weight, cognitive and social acceleration coefficients, random variables, personal best position, global best position and previous personal best position respectively.

The inertia weight may be randomly chosen. In improved PSO, inertia weight can be computed using time linear decreasing method. Equation (3) gives inertia weight as follows [44]:


Where Wmax, Wmin T and t represent maximum and minimum value of inertia weights, maximum iteration and current iteration respectively.

The performance of PSO is dependent to the proper tuned parameters that results in the optimum solutions. Normally, cognitive (c1) and social acceleration coefficients (c2) are randomly selected to constant values. If value of c2 is selected higher than value of c1, the PSO will converge prematurely [45].

Initially choosing high c2 and small c1 will make particles to move towards optimum solution. As optimization progresses, the values of c1 and c2 will get modified, which direct the particles to the global solution [45]. The acceleration coefficients are determined according the following equations (4) and (5) [46].


Where c1 and c1, c2 and c2 are minimum and maximum values of cognitive coefficients, minimum and maximum values of social coefficients respectively.

In the simulation, the parameters of PSO algorithm are set initially as shown in Table 1.

wmin wmax c1 c2 c1" c2" No. of particles Maximum iteration
0.8 2 0.8 0.8 3.5 3.5 50 50

Table 1: Parameters setting of IPSO.

Each particle possesses fitness value and fitness of the particle is measured by a fitness function. In this approach, mean squared error is used as the fitness function to test the performance of individual particle.

The fitness of kth particle at tth iteration is assessed using equation (6).


Where P, On and On denote number of training datasets, desired output and actual network output, respectively.

A personal best position pbestk and a global best position gbestk of kth particle will be adapted in tth iteration using equation (6).


Results and Discussion

In this study, our aim was to train the MLP using the IPSO to enhance the performance of MLP to predict the classes of cardiac arrhythmia. The experiments are carried out on arrhythmia data segments to make the MLP to effectively evolve the weights and biases with the help of IPSO. The experimental result of IPSO is compared with standard gradient based learning algorithms namely gradient decent algorithm with adaptive learning rate (GDX), RPROP, SCG and one-step secant method (OSS). Figures depict the training and Prediction results in confusion matrices. The Training performance of IPSO, GDX, RPROP, SCG, OSS learning algorithm is measured by plotting MSE against iterations. The plotted result is shown in figures. The IPSO enables the MLP to dynamically evolve weights and biases effectively. The performance of IPSO algorithm is found to be quite competitive in comparison with other algorithms (Figures 2-11).


Figure 2: The performance of MLP-PSO.


Figure 3: Training result of PSO.


Figure 4: Training and prediction result using gradient decent with adaptive learning rate.


Figure 5: Experimental training results using gradient decent with adaptive learning rate.


Figure 6: The performance of MLP with OSS training method and prediction of arrhythmia classes.


Figure 7: Training performance using OSS method.


Figure 8: Training by SCG method and prediction of classes.


Figure 9: Training with SCG method.

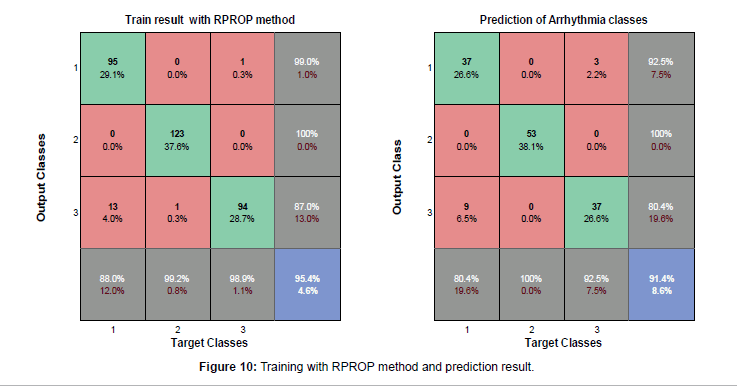

Figure 10: Training with RPROP method and prediction result.


Figure 11: Training with RPROP method.


The several experiments are carried out on datasets of three classes of cardiac arrhythmia. The learning of MLP is performed using IPSO, GDX, RPROP, SCG, OSS learning algorithm. The experimental results are compared with the existing learning algorithms and it shows that evolutionary method such as IPSO outperform GDX, RPROP, SCG, OSS learning algorithm. The IPSO makes MLP to converge faster in very little iterations as compared with other training methods The IPSO is proved to be used as another alternative learning algorithm for enhancing the ability of MLP to predict the arrhythmia classes. The presented technique increases the prediction capability of MLP using few linear and nonlinear parameters, which are obtained from datasets of normal and abnormal HRV signals. The condition of heart health can be assessed using the proposed hybrid approach.
