Research Article - (2022) Volume 13, Issue 2

**Received: **30-Mar-2022, Manuscript No. JPP-22-15908;
**Editor assigned: **06-Apr-2022, Pre QC No. JPP-22-15908(PQ);
**Reviewed: **13-Apr-2022, QC No. JPP-22-15908;
**Revised: **20-Apr-2022, Manuscript No. JPP-22-15908(R);
**Published:**
29-Apr-2022, DOI: 10.35248/2157-7463.22.13.006

Drug-mediated blockade of the voltage-gated potassium channel (hERG) and the voltage-gated sodium channel (Nav1.5) can lead to severe cardiovascular complications. This rising concern has been reflected in the drug development arena, as the frequent emergence of cardiotoxicity from many approved drugs led to either discontinuing their use or, in some cases, their withdrawal from the market. Predicting potential hERG and Nav1.5 blockers at the outset of the drug discovery process can resolve this problem and can, therefore, decrease the time and expensive cost of developing safe drugs. One fast and cost-effective approach is to use in silico predictive methods to weed out potential hERG and Nav1.5 blockers at the early stages of drug development. Here, we introduce two robust 2D descriptor-based QSAR predictive models for both hERG and Nav1.5 liability predictions. The machine learning models were trained for both regression, predicting the potency value of a drug, and multiclass classification at three different potency cut-offs (i.e., 1 μM, 10 μM, and 30 μM), where ToxTree-hERG Classifier, a pipeline of Random Forest models, was trained on a large curated dataset of 8380 unique molecular compounds. Whereas ToxTree- Nav1.5 Classifier, a pipeline of kernelized SVM models, was trained on a large manually curated set of 1550 unique compounds retrieved from both ChEMBL and PubChem publicly available bioactivity databases. The hERG model yielded a multiclass accuracy of Q4=74.5% and a binary classification performance of Q2=93.2%, sensitivity=98.7%, specificity=75%, MCC=80.3%, and a CCR=86.8% on an external test set of N=499 compounds. The proposed inducer outperformed most metrics of the state-of-the-art published model and other existing tools. Additionally, we are introducing the first Nav1.5 liability predictive model achieving a Q4=74.9% and a binary classification of Q2=86.7% with MCC=71.2% and F1=89.7% evaluated on an external test set of 173 unique compounds. The curated datasets used in this project are made publicly available to the research community.

Cardiotoxicity; Drug discovery; QSAR models; Machine learning; Deep learning

Drug discovery is an immensely expensive and time-consuming process posing numerous formidable challenges. The development of a new drug requires 6 to 12 years and costs as much as $2.6 billion [1-3]. Computer-Aided Drug Discovery (CADD) holds a significant promise to reduce the costs and to speed up the development of lead candidates at the outset of drug discovery [3,4]. In recent years, toxicity prediction algorithms have attracted growing attention from researchers in academia and industry alike. They represent an increasingly important component of modern CADD, with cardiotoxicity prediction algorithms being at the forefront of these methods [4].

The main motivation driving this new direction is the significant
losses endured by pharmaceutical companies in withdrawing several
drugs from the market or in halting many drug discovery programs
in their pipelines due to unforeseen cardiotoxicities during the early
stages of drug development. Furthermore, an additional motivation
inspiring the field is the exponential increase of bioactivity data
on cardiac ion channel blockers deposited in public databases (e.g.
ChEMBL and PubChem). These huge data pools made cardiac ion
channels an excellent avenue to apply modern statistical models
to predict their drug off-target interactions and to achieve high
performances *via* the use of Machine Learning (ML) algorithms.

Quantitative Structure-Activity Relationship (QSAR) is a wellestablished strategy in the field of chemistry and pharmacy for the reliability and reproducibility of the constructed models [5]. As most of the earlier research was focused only on predicting hERG liability and ignored other cardiac ion channels (e.g. voltage-gated sodium channel(Nav1.5) and the voltage-gated calcium channel (Cav1.2)), this paper represents a major step towards closing this gap. Here we follow the best practices methodology of QSAR to build an alternative hERG liability prediction model. Our hERG solution competes with model [6]. While our model is trained on the same large development hERG dataset and tested on the same evaluation set used, but further cleaned from existing duplicates, it outperformed most of their metrics with higher performances and with more in-depth details of the sub-models’ characteristics. Furthermore, we transferred this knowledge to build and introduce the first Nav1.5 liability classification model in the field of computational toxicology, achieving an accuracy of Q2=86.7% for binary classification and multiclass classification accuracy of Q4=74.9%.

**Related work**

Over the last two decades, scientists and researchers made significant use of several ML algorithms to build robust models to predict mainly hERG inhibition. In their review papers, summarized previous hERG liability ML models published in the field [7,8]. Based on their findings, the most used machine learning algorithms in the early 2000s were Bayesian, Partial Least Squares (PLS), and Neural Network Inducers. However, during the current decade, scientists shifted towards the use of Random Forest (RF) and Support Vector Machine (SVM) due to their higher empirical performances in the field.

As of recent related works on hERG classification models, trained a RF model with descriptors calculated on 3,721 compounds measured in a biding assay and 765 compounds measured in a functional assay from the ChEMBL database showcasing a mean prediction accuracy of ~0.80. In a different research publication used SVM to build a predictive model combining both 4D-fingerprints and 2D and 3D molecular descriptors on a training set of 876 compounds from the PubChem BioAssay database [9- 13]. Their model achieved an accuracy of 0.87 on an evaluation set of 456 compounds. Another interesting work using Bayesian classification models was published [14]. The group gathered a dataset of 2,389 compounds from the FDA-approved drugs and from instances tested on hERG in the literature. Then, they trained their model using four molecular properties (MW, PSA, AlogP, and pKa_basic), as well as extended-connectivity fingerprints (ECFP_4). The development set was split into a training set of 2,389 instances and a test set of 255 compounds. The model achieved an accuracy of 0.91 on the test set and was further evaluated in another work on an external set of 60 molecular compounds achieving an accuracy of only 0.58 [15]. In 2015 deployed a model, named Pred-hERG, in a web-based platform to predict hERG liability [16]. The model was trained on 5,984 compounds combining both Morgan fingerprints and Chemistry Development Kit descriptors using RDkit and PaDEL [17]. The model was reported to achieve a correct classification rate of 0.84. Whereas, the most recent hERG inhibition model published in 2019 represents a consensus model following a one-vs-rest approach to build a pipeline of trained RF models to perform a multiclass classification at different inhibition levels of a given molecular compound [6]. By far, Kumar’s model was the most superior in terms of making use of data as well as performance. It employed 8705 claimed unique compounds from the ChEMBL database. Their methodology consisted of applying different sets of 2D descriptors to build each sub-model in the pipeline. The authors claimed achieving state-of-the-art performance with a Q2=0.92, sensitivity=0.963, specificity=0.786, and MCC=0.786 evaluated on an external set of 499 compounds from PubChem and literature mining.

**Figure 1** represents a graphical representation of the hERG and
Nav1.5 models building procedure abiding by the best practices
of data science and QSAR methodology [18]. Our methodology
involves data gathering; curation, and normalization; feature
generation and feature selection; splitting data into training,
validation, and test sets; fine-tuning and building a set of models
to pick the most performing model with the optimal configuration
of hyper parameters; and finally evaluation of the best model on
the test set.

**Figure 1:** QSAR/Data Science best practices to perform best model
selection and battle over fitting.

**Data collection and curation**

Preparing data for both hERG and Nav1.5 is the main step in our machine learning models building pipeline. Artificial Intelligence (AI) predictive models can be very sensitive if wrong or biased data is used during learning. Hence, careful curation of all data entries was essential to have reliable models and results. Below is a description of the process we followed in data collection, curation, and organization while constructing the hERG and Nav1.5 models.

hERG data collection and curation: For hERG liability predictions, we gathered data from literature and other open bioactivity data sources. We started first by the dataset published as one of the largest gathered and preprocessed hERG set publicly available to the research community [6]. The set was derived from three data sources of molecular compounds including ChEMBL v22, PubChem, and external instances from the literature. Data collected from ChEMBL v22 resulted in 8705 unique molecular compounds [12,19]. From PubChem BioAssay 9,383 molecular records were retrieved under the gene id 3757 [11,6,20,21]. Kumar and his fellow researchers performed initial data curation on this set and reported 277 unique molecules. From the literature mining they got a set of 561 compounds from the published research work [22]. Then, they performed normalization and redundancy reduction to report 222 unique molecular records.

We conducted further investigations and checks on the whole set of 9204 compounds and found many anomalies (detailed procedure to clean the set is explained in the Supplementary Online Material, section 1). The curation process led to a high-quality final set of 8879 entries, where 8380 unique compounds are retrieved from ChEMBL, and used solely for training, while the remaining 499 compounds gathered from both literature and PubChem were used for final evaluation only [23].

**Nav1.5 data collection and curation: **To build a Nav1.5 model,
we made use of two publicly available databases, namely the
ChEMBL v25 database and the PubChem database. We retrieved
2051 molecular compounds from the ChEMBL v25 database
with Nav1.5 liability information. Similar to hERG data curation
and standardization process, different potency records were
reported by different laboratory assays [9,24]. These data entries
had records reporting IC_50, K_i, and EC_50 potency values. To
keep data conformity, only records reporting IC_50 values were
considered. For the rest of the redundant observations reporting
different potency values, redundancy reduction procedure was
conducted. The curation process was done as follows: First, for the
same compound with multiple potencies, only the latest reported
value in the last reference was kept. Second, if no latest reference
is available, the mean value was computed and discarded the
observations with large standard deviations. Finally, we normalized
the IC_50 value for each unique compound by converting it to
a negative logarithmic value, named the PIC_50. The curation
process resulted in 1655 unique normalized records with reported
IC_50 values through assays.

From the second publicly available dataset, namely, PubChem BioAssay 2381 molecular records were retrieved under the gene id 6331 (SCN5A-sodium voltage-gated channel alpha subunit 5 for human) [20-25]. Manual curation again of all the records was carried out. From the retrieved compounds, 721 molecules were discarded as they had no potencies reported, resulting in 1660 instances with potencies. To keep data conformity, only records reporting IC_50 values were considered, resulting in 1654 molecules with IC_50 potencies including redundant elements. Redundancy reduction was then conducted to filter out duplicate molecular compounds (detailed procedure is explained in the Supplementary Information, section 2). The final Nav1.5 development set consists of 1550 unique molecular compounds, denoted as Dev-Set-Nav in the rest of this manuscript, while the final evaluation set contained 173 instances, denoted as EV-Set-Nav and visualized in Figure S1- S4, in the Supplementary Information section [26].

**Machine learning algorithms**

In this work, we opted for Python as the current widely used computational and statistical programing language. To classify blockers from non-blockers, we adopted for state-of-the-art supervised machine learning algorithms used for classification. The three classifier algorithms we studied are:

Deep Learning (DL/MLP) [26-28]

Additionally, hERG liability predictions were analyzed using both regression models and pure classification models. For Nav1.5 data, PCA was used to reduce the high dimensional feature set of descriptors before building the machine models.

3.2.1 Principal Component Analysis (PCA): Data often lies on a low dimensional manifold embedded in a higher dimensional space. PCA can help finding an approximation of the data in a target low dimensional space. The approach adopted by PCA is to find a new coordinate system in which the data points, that might be originally correlated, are linearly uncorrelated. After the linear transformation, dimensions with no or low variance can be ignored. In other words, we can apply a feature/dimension selection based on the principal components exhibiting higher eigen values. Given a dataset X € R^NxD, where N is the number of instances and D is the dimensionality of the features in the original set, applying PCA to reduce dimensionality from D to K dimensions is outlined in the mathematical notations as follows:

Center the data by deducting the mean (This can also be achieved *via* z-score normalization)

Pick the top-K eigenvectors corresponding to the K largest eigenvalues of the covariance matrix Ʃ

Project the data

A main question to ask here is; How to choose K? The 90% rule is frequently used by practitioners in the field. We usually pick the first K variances/eigenvalues explaining 90% of the energy.

**Deep learning/MLP:** The first supervised learning classifier
investigated was a feed-forward network, also called a Multi-Layer
Perceptron (MLP) or artificial neural network. The ultimate goal of
using an MLP is to project input data points to a new dimensional
space, also called latent space, using non-linear basis functions to
allow for better probabilistic decision boundaries. This is achieved
by fixing the number of basic functions in advance but allowing
them to be adaptive *via* the use of parametric forms for those basis
functions in which the parameter values are adapted/learned
during training time [33]. All those functions are represented as a
compute graph in a network, and their parameters are adapted *via* the use of a loss function that guides the training/update of all the
parameters of the network during what is called back-propagation.
For larger problems, neural networks may contain multiple layers,
each with a predefined number of hidden neurons, stacked on top
of each other to increase the capacity of the network. A multiple
stacked layers network is referred to as a deep neural network or
Deep Learning (DL) within the AI community. **Figure 2** represents
a network diagram of a two-layer neural network [33].

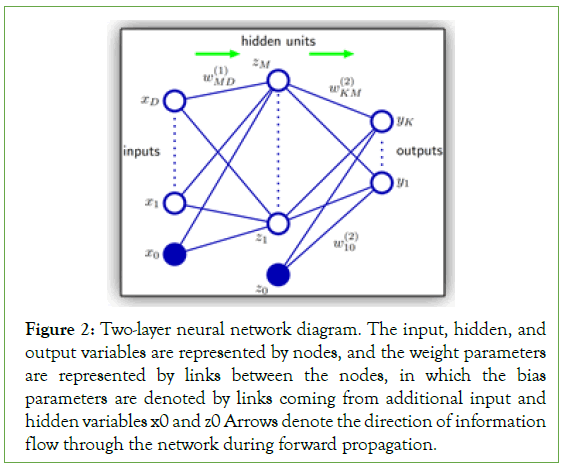

**Figure 2:** Two-layer neural network diagram. The input, hidden, and
output variables are represented by nodes, and the weight parameters
are represented by links between the nodes, in which the bias
parameters are denoted by links coming from additional input and
hidden variables x0 and z0 Arrows denote the direction of information
flow through the network during forward propagation.

**Kernelized SVMs:** Support Vector Machine (SVM) is a wellknown
algorithm used for binary classification of data points. It
is an algorithm categorized under the family of maximum margin
classifiers. The main intuition behind the algorithm is that a wide
margin around the dividing decision boundary makes the new
samples more likely to fall on the correct side of the separating
line. An important property of SVMs is that the determination
of the model parameters corresponds to a convex optimization
problem, and so any local solution is also a global optimum [34].
The objective function of SVMs is mainly solved *via* LaGrange
multipliers [25] resulting in a dual function that can be re-written as
a quadratic function which then can be solved with many efficient
algorithms for quadratic programming problems [35]. LIBSVM
is a widely used algorithm to solve such quadratic problems for
SVMs and it is implemented in sklearn. svm SVC python library
that we used in our modeling analysis. Additionally, since the
data points may not be linearly separable (including noisy data)
we opted for two solutions to elevate this problem: The use of
the kernel trick [30] for non-linear decision boundaries, and the
relaxation/punishment of the constraints by introducing slack
variables symbolized as ε_i [36]. The above explanation is formally
summarized in the following constrained objective function that
will be optimized using LaGrange multipliers:

**Random forest:** Random Forest (DF) algorithm is the third
investigated approach to classify blockers from non-blockers [31,32].
It is an ensemble method of multiple decision trees used to make
a classification decision based on the majority vote. Decision trees
implement a greedy heuristic algorithm to build the tree using a
top-down approach by picking the best splitting features with the
best improvement based on a given impurity measure. An ensemble
of decision trees usually suffers from the problem of high variance
which may result in biased results.

To elevate this problem, we combined the decision forest with bagging (bootstrap aggregation) method to reduce the variance of the model. The main idea behind bagging is to create an ensemble of decision trees from randomly selected samples of data points from the training set with replacement. We made use of sklearn ensemble random forest classifier python library implementing a bootstrap aggregation RF [37].

**Feature generation and selection**

To perform statistical analysis and build our models, we needed numerical metrics for each molecular compound instance. The features used in this setting were called molecular descriptors. A molecular descriptor is the final result of a logical and mathematical procedure that transforms chemical information encoded within a symbolic representation of a molecule into a useful number or the result of some standardized experiment [38]. We made use of PaDEL-Descriptor v2.21, a tool implemented in Java to compute the molecular descriptors [17,39]. The tool takes as an input a “.smi” file containing the smile format of the molecular compound and outputs a CSV file of the set of descriptors. It currently computes 1875 descriptors, including 1444 1D and 2D descriptors and 431 3D descriptors, and 12 types of fingerprints (a total of 16,092 bits).

Literature manuscripts reported that 2D descriptors provide better predictive results, and at the same time, require less computational resources compared to 3D descriptors [6,40-42]. Therefore, we compiled only 2D descriptors using PaDEL-Descriptor v2.21 with a maximum runtime of 〖10〗^5 milliseconds per molecule. The process resulted in 1444 2D descriptors [17,39]. As the number of generated features was huge, feature selection and dimensionality reduction were required.

**Feature selection for hERG dataset:** As a first step of our feature
selection procedure, we started by percent missing value analysis
combined with information analysis of each single feature. This
step reduced the feature space from 1444 to 1364. We followed this
step by a pairwise correlation analysis supported by a predictive
power strategy to decide on which feature to drop in case of
collinearities of the features. The analysis reduced the set to 208
features using a correlation cut-off=65%. To further reduce feature
set, we applied LASSO as a context-dependent and an embedded
dimensionality reduction technique. Splitting the development set
into 80% training and 20% validation, we run a grid search to find
the best regularization parameter λ. λ=0.01 was found to be the best
hyper parameter. Applying LASSO on the whole development set
of 8380 molecular compounds, the final feature space was reduced
to 144 best features modeling the data.

**Feature selection for Nav1.5 dataset:** Through a percent missing
value and an information analysis of each single feature, we reduced
the feature space from 1444 to 551 (details in Supplementary
Information section 3). The number of features was still high;
therefore, a variance-based analysis was conducted as shown in **Figure 3**. The graph gives a nice representation of the importance
of features in our data based on their variances, ranging from
10-5 to 1021. The visual shows that an arbitrary cut-off at 1010
would lead to 7 features to be selected. However, this analysis was
done on the original dataset and picking such cut-off or even a bit
lower for more features, may lead to wrong results. Also, applying
a Principal Component Analysis (PCA) directly on this data will
result in biased and wrong analysis, as PCA will tend to focus more
on the features with a high variance. The 27-order of magnitude
difference of the variances is mainly due to the drastic different
scales of the data features and the existence of outliers. Therefore,
standardization and normalization of our feature values proves
itself to be crucial. We used standard scaling, also called Z-score
normalization, in our analysis to elevate this problem:

**Figure 3:** Dev-Set-Nav variance-based analysis of the 551 features. Very
few features exhibit very high variance, and many are very low with a
27-order of magnitude variance difference.

Where x is the value to be normalized, µ is the empirical mean
value of the column and σ is the empirical standard deviation. The
result of the normalization transformation of the data features is
visualized in Figure S5 available in the Supplementary Information section. The figure shows how the variances of each of the 551
features are distributed after the standard normalization applied
using Standard Scalar library implemented in python [43]. The
graph demonstrates that 7 features are of great importance in our
dataset, as they exhibit the highest variance. However, since all the
variance values fall between 0.95 and 1.05(tight range), a variancebased
feature selection is hard to make, and an arbitrary cut-off
might still provide wrong results. Also, some of the selected features
could be highly correlated, which would include some bias to the
trained models. The idea is then to décor relate the system first,
and then to base the selection of features on their energy (**Figure 4**).

**Figure 4:** Training results of the best 2-layer network with 40N (HL).
(a) Represents the loss change with respect to the number of epochs of
both training and validation sets. (b) Represents the accuracy change
with respect to the number of epochs of both training and validation
sets. The best hyperparameter configuration is: L2-norm weight decay,
512 batch size, ReLu as activation function, and Xavier initialization.

To achieve that, we conducted an unsupervised learning study called Principal Component Analysis (PCA) on the entire normalized Dev-Set-Nav of 551 features. The results will be discussed in Nav1.5 result section.

**Training, validation, and test set splitting**

To abide by QSAR and data science best practices, we applied
different strategies of model validation for each algorithm. For
the DL classifier, we split the development set into 90% training
and 10% validation sets as we wanted to use most of our data
for training. However, for the kernelized SVMs and RF training,
we used a technique named k-fold cross-validation *via* scikit-learn
library in Python [44].

In k-fold Cross-Validation (CV), sometimes called rotation estimation, the dataset D is randomly split into k mutually exclusive subsets (the folds) D1, D2……DK of approximately equal size. The inducer is trained and validated k times; each time t ∈ {1, 2,…k} it is trained on D\Dt and tested on Dt. After a grid-based search for the optimal number of folds, we opted for 10-fold cross-validation for our hyperparameter optimization of the sub-models, as being the one giving the best CV estimate of accuracy for both SVM and RF. The cross-validation estimate of accuracy is the overall number of correct classifications, divided by the number of instances in the dataset. It may also be seen as the mean accuracy of all the folds accuracies in case of stratified split. Formally, let D(i) be the validation set that includes instance x_i=(v_i,y_i), then the crossvalidation estimate of accuracy [45].

Applying just a plain CV may lead to biased accuracy estimates of the validation set. The problem is frequently present when the data is not equally distributed among classes, which causes a random selection of k-folds to have a dominance of instances, often only instances, of the majority classes. Therefore, to elevate this issue, we used a technique called stratification for both normal training/ validation split, case of MLP, and k-fold CV, case of SVM and RF training. A stratified split is a split that maintains a similar percentage distribution of classes in the original set.

**Performance evaluation metrics**

As we are following the approach of one-vs-rest methodology for multiclass classification, we used a set of six measurements for binary classification during our modeling analysis evaluation to assess the quality of trained models:

Where TP stands for True Positive (TP) and represents the number of correctly predicted blockers, TN stands for True Negative (TN) and represents the correctly predicted non-blockers, FP stands for False Positive (FP) and represents the number of non-blockers predicted as blockers, and FN stands for False Negative (FN) and counts the number of blockers predicted as non-blockers.

Here, we want to stress on the F1 measurement, also called the F-score. It considers the sensitivity and the precision in its formula measuring the harmony of both metrics. F1 score, as a comprehensive statistical parameter, is considered to be a better evaluation criterion than accuracy when dealing with imbalanced datasets which is our case [40].

The above metrics are used in the context of binary classification. For multiclass classification measures, we provide a multiclass accuracy denoted as AC mul and formally computed as follows:

Where T is the set of instances used for evaluation containing observations each one denoted by the pairx_i=(v_i,y_i). Whereas, I function represents the inducer or the predictor, and δ is the indicator function returning 1 if the predicted class is matching the ground truth and 0 otherwise.

Whereas, for regression we considered two measurements, the Sum of Squared Error and the R-Squared metric:

**Data labeling and sampling techniques for classification**

With multiclass classification algorithms, QSAR models were trained on datasets of molecular compounds labeled as follows: A compound with PIC50 ≥ 6 is labeled as “strong blocker”, a compound with 6>PIC50 ≥ 5 is labeled as “moderate blocker”, a compound with 5>PIC50 ≥ 4.5 is labeled as “weak blocker” and a compound with 4.5>PIC50 is labeled as “non-blocker”.

Following a one-vs-rest approach to build a multiclass classifier, QSAR models were built and analyzed on 3 differently labeled development sets on each of hERG and Nav1.5 curated and normalized datasets. From each curated development set, we derived three labeled datasets by applying each time a different threshold based on the IC50 values of 1, 10, and 30 µM, corresponding to the PIC50 values of 6, 5, and 4.5, which corresponds eventually to the level of potency blockage intensities of strong, moderate, and weak blockers respectively.

For hERG, each time we applied a different threshold, we obtained a different class distribution of hERG Blockers (BLK) and Non- Blockers (NBLK). For a threshold of PIC50=6 the class distribution was (blk: 1596 vs. nblk: 6784). For a threshold of PIC50=5, the class distribution was (blk: 5116 vs. nblk: 3264). For a threshold of PIC50=4.5 the class distribution was (blk: 7003 vs. nblk: 1377). We observed the same case for Nav1.5 after applying a different threshold each time. We obtained imbalanced class distribution of Nav1.5 blockers (blk) and non-blockers(nblk). For a threshold of PIC50=6, the class distribution was (blk: 160 vs. nblk: 1390). For a threshold of PIC50=5 the class distribution was (blk: 1018 vs. nblk: 532). For a threshold of PIC50=4.5 the class distribution was (blk: 1442 vs. nblk: 108).

To distinguish which development set was used for building
a particular model, the 〖PIC〗_50 potency value applied for
compounds tagging on the dataset was attached to the ML algorithm
used (ex. ‘6RF’ means that the random forest is trained on a dataset
labeled according to a cut-off of PIC50=6. For the two thresholds
of 6 and 4.5, the class distributions were very imbalanced. Such
data distributions make learning algorithms to often be biased
towards the majority class as the algorithms main focus is trying
to reduce the error rate without taking the data distribution
into consideration. There exist four main ways to deal with class
imbalances: re-sampling, re-weighing, adjusting the probabilistic
estimate, one-class learning. In our research work, we opted for resampling
methodology to deal with this issue as a simple approach
of biasing the generalization process. We wanted to analyze the
results of both a balanced dataset and an imbalanced one. We
tried two different approaches for this analysis: over-sampling and
under-sampling. For over-sampling, we used the Synthetic Minority
Over-sampling Technique (SMOTE). SMOTE generates synthetic
examples in a less application-specific manner, by operating in
“feature space” rather than “data space” [46]. The minority class is
over-sampled by taking each minority class sample and introducing
synthetic examples along the line segments joining any/all of the
k minority class nearest neighbors. Depending on the amount of
over-sampling required, neighbors from the k nearest neighbors are
randomly chosen explained the synthetic generation of samples
as follows: First, we take the difference between the feature vector
(sample) under consideration and its nearest neighbor. Second, we
multiply this difference by a random number between 0 and 1 and
we add it to the feature vector under consideration. This causes
the selection of a random point along the line segment between
two specific features. This introduced algorithm effectively forces
the decision region of the minority class to become more general
[46]. The approach was applied *via* the imblearn over-sampling
library in Python implementing the explained SMOTE algorithm
[47]. Concerning under-sampling, we used near miss algorithm, a
negative example selection method implemented in the Python
library imblearn over-sampling [48,49].

All computations reported in this manuscript were conducted on a
personal workstation. The machine system memory size was 16Gib
with an Intel^{®} Core^{TM} i7-8750H 8th generation CPU with 12
logical processors and maximum speed of 3.5 GHz. The machine
contains also a NVIDIA GeForce GTX 1050 Ti with a dedicated
memory of 4Gib. The GPU was used for deep learning hyper
parameter tuning (**Figure 4**).

**hERG ML models-results and discussion**

For hERG multiclass predictions, we opted for the one-vs-rest approach. To pick the best performing ML algorithm to use in our final deployed sub-models, we made our first algorithm selection analysis using one labeled dataset with a fairly balanced class distribution. The threshold of choice was PIC50=5 with a class distribution of 5117 hERG blockers and 3265 non-blockers.

**Machine learning algorithms analysis applied on literature-based
feature selection:** For literature-based features, we gathered all the
collections of best features compiled in and combined them in one
unique set of best features to be used for development [6]. These
sets of features were selected based on a greedy algorithm named
Best-First Feature Selection method. We ended up with 191 unique
literature-mined features, selected from the 1444 2D descriptors.
We used the final set for training all the sub-models of our ToxTreehERG
Classifier. This set was used to analyze and then select the
best performing classifier algorithm to choose among the MLP,
SVM, and RF.

**Deep learning/MLP: **In our analysis, we used a grid-based search
for hyperparameter tuning in order to find the best hyperparameter
configuration of our simple artificial neural network to classify
correctly the hERG blockers and non-blockers.

The search space included one single network architecture of 2 layers (1 hidden layer of 40 neurons and an output layer of two neurons), fixed learning rate of 10-3, fixed L2-norm weight decay, 2 types of activation functions (sigmoid and ReLu), 50% dropout rate or not, batch normalization or not, and 2 batch sizes: 256 and 512. The search space resulted in 16 different models, all initialized using Kaiming (for ReLu) or Xavier (for Sigmoid) initialization [50- 52]. To select the optimal model, the best hyper parameters of the architecture were saved if the loss on the validation set scored lower than the last saved best model after a complete epoch.

**Figure 4** represents the loss and accuracy results of the best 2-layer
network found during our parameter search, after 5000 epochs.
The curves show that the model converged around 4000 epochs,
and the generalization gap started increasing afterwards (**Figure 4a**).
The best model hyper parameters achieved a validation accuracy of
76.1%.

**Kernelized SVMs:** We applied again grid-based search to identify
the best parameters of the optimal kernelized SVM for our given
problem using a 10-fold stratified cross-validation. The parameters
that were used in the grid search included 4 kernel functions
(linear, polynomial, sigmoid, and radial basis function kernel). In
the case of a polynomial kernel, 9 degrees were investigated (from
2 to 10). For constraints relaxation, 10 values were evaluated of the
penalty constant C, with 5 values less or equal than 1 (0.1, 0.2, 0.5,
0.8, 1) denoting a soft margin SVM and 5 greater than 1 (3, 5, 10,
50, 100) denoting hard margin SVM. The Search space resulted
in 120 different models built with 4 types of kernels. The best
performing model achieved an ACcv of 75% with a polynomial kernel of degree 2 and a penalty constant of 0.2.

**Random forest:** To evaluate the performance of Random Forest on
our given training dataset, we applied a grid-based hyper parameter
search combined with a 10-fold stratified cross-validation. The
search space included 100 different configurations to evaluate. We
achieved a best ACcv of 81.1% with an ensemble of 100 decision
trees.

**Best performing ML algorithm based on literature-mined features:** Among the three evaluated ML algorithms (sections 4.1.1.1, 4.1.1.2,
and 4.1.1.3), RF represented the best performing model with a
validation accuracy of 81.1% compared to the kernelized SVM
and the MLP with accuracies of 75% and 76.1% respectively.
Therefore, to build our ToxTree-hERG Classifier model, RF with
bootstrapping was our algorithm of choice to build our one-vs-rest
sub-models at the three potency intensity levels.

**Model building and evaluation on external test sets using
literature-mined feature set:** We conducted a grid-based search on
a set of 11 different values starting at 10 and incrementing by 10
for each next value to define the optimal number of estimators
(decision trees) per RF classifier for each of the three separately
labeled datasets. The hyper parameter search was applied using
10-fold stratified CV technique. For each PIC50 threshold, we
compared the results of balanced datasets with imbalanced ones.
Applying the two previously explained sampling methods (over/
under-sampling); we reported the results in **Table 1**. The statistics
include the cross validation estimate of accuracy ACcv, defined in
eq. 7, as well as the cross validation estimate of F1-score F1CV
computed similarly based on single folds F1-scores.

PIC50 Threshold | Model short name | Sampling strategy | Development class distribution | ACcv | F1cv | No.of estimators | Max depth | |
---|---|---|---|---|---|---|---|---|

blk | nblk | |||||||

4.5 | 4o5rf | Original | 7003 | 1377 | 88.7 | 93.5 | 80 | 51 |

4o5rf-ovrs | Over-sampling | 7003 | 7003 | 94.8 | 94.7 | 80 | 47 | |

4o5rf-unds | Under-sampling | 1377 | 1377 | 80.8 | 80.6 | 90 | 38 | |

5 | 5rf | Original | 5116 | 3264 | 81.1 | 84.8 | 100 | 44 |

5rf-ovrs | Over-sampling | 5116 | 5116 | 85.4 | 85.2 | 110 | 35 | |

5rf-unds | Under-sampling | 3264 | 3264 | 80.4 | 80.4 | 100 | 51 | |

6 | 6rf | Original | 1596 | 6784 | 87.3 | 57.1 | 90 | 43 |

6rf-ovrs | Over-sampling | 6784 | 6784 | 93.3 | 93.2 | 80 | 57 | |

6rf-unds | Under-sampling | 1596 | 1596 | 76.1 | 75.9 | 110 | 36 |

**Table 1: **The cross-validation estimate of accuracy rate ACcv and F1-score F1cv of the best performing RF model in each of the 3 differently labeled training
datasets based on the three PIC50 cut-offs and different sampling strategies. Over/under-sampling analysis was carried out at all of the three potency
thresholds as training data was imbalanced. ACcv and F1cv measurements were calculated following a 10-fold-stratified-cross-validation applied on the
training dataset, i.e., computed on validation folds. The models with the best CV estimate of accuracy (eq. 7) rates are mentioned in bold. Similarly, we
computed the CV estimate of F1-score and reported the best inducer with its corresponding number of estimators and max depth in the RF. Grid-based
search for the optimal number of estimators was conducted on 11 different values starting at 10 and incrementing by 10 for each next value.

**Table 1** shows the results of the best performing ensemble of
decision trees for each labeled development set. For the threshold
PIC50=6 we picked 6rf-ovrs model distinguishing ‘strong hERG
blockers’ from non-blockers as being the best performing one, with
an ACcv of 93.3%, 80-ensemble of estimators, and a maximum tree
depth of 57. For the threshold of PIC50=4.5 tagging ‘weak-blockers’
and ‘non-blockers’, two models were reporting high ACcv and
comparable F1CV. They were both selected to construct the final
Model. Inducers 405 rf and 405 rf-ovrs reported an ACcv of 88.7% and 94.8%, F1CV of 93.5% and 94.7%, number of estimators per
RF of 80 and 80, and a maximum depth of the trees of 51 and 47
respectively. Whereas, we kept only the best performing classifier, 5
rf-ovrs, trained on an over-sampled development set with synthetic
samples for the PIC50=5 threshold labeled dataset to classify
‘moderate blockers.’ 5 rf-ovrs achieved an ACcv of 85.4% with a
maximum tree depth of 35 and an ensemble of 110 estimators.

The best hyper parameters along with best performing sampling
techniques were used to build our final models trained on the
entire 8380 molecular compounds for hERG liability predictions. **Table 2** shows that our individual built models exhibit higher
performances than all the models presented [6]. Our models
outperformed all the models with respect to the overall accuracies
and the F1-scores on the untouched test set EV-1 and EV-2 whereas
the specificity values are comparable.

Test set | PIC50 Threshold | Training dataset | Model | AC | SN | SP | F1 | TP | FN | TN | FP |
---|---|---|---|---|---|---|---|---|---|---|---|

EV-1 | 4.5 | Original/Imbalanced | 4o5 rf | 88 | 98 | 58 | 93 | 166 | 4 | 30 | 22 |

4o5_RFfwd | 86 | 99 | 42 | 91 | 169 | 1 | 22 | 30 | |||

Balanced | 4o5 rf-ovrs | 89 | 95 | 67 | 93 | 162 | 8 | 35 | 17 | ||

4o5_s1_RFfwd | 82 | 88 | 62 | 88 | 149 | 21 | 32 | 20 | |||

Combined | Combined_4o5 rf | 90 | 98 | 64 | 94 | 167 | 3 | 33 | 19 | ||

4o5Combined | 87 | 98 | 52 | 91 | 166 | 4 | 27 | 30 | |||

5 | Original/Balanced | 5 rf-ovrs | 82 | 85 | 77 | 86 | 119 | 21 | 63 | 19 | |

5 rffwd | 77 | 72 | 84 | 79 | 101 | 39 | 69 | 13 | |||

6 | Original/Imbalanced | 6 rffwd | 73 | 20 | 97 | 32 | 14 | 55 | 149 | 4 | |

Balanced | 6 rf-ovrs | 83 | 57 | 95 | 67 | 39 | 30 | 145 | 8 | ||

EV-2 | 4.5 | Original/Imbalanced | 4o5 rf | 96 | 99 | 83 | 97 | 211 | 1 | 54 | 11 |

4o5_rffwd | 93 | 100 | 72 | 95 | 206 | 0 | 51 | 20 | |||

Balanced | 4o5 rf-ovrs | 97 | 99 | 91 | 98 | 209 | 3 | 59 | 6 | ||

4o5_s1_rffwd | 82 | 80 | 90 | 87 | 164 | 42 | 64 | 7 | |||

Combined | Combined_4o5 rf | 96 | 99 | 88 | 98 | 210 | 2 | 56 | 8 | ||

4o5 Combined | 94 | 98 | 85 | 96 | 201 | 5 | 60 | 11 | |||

5 | Original/Balanced | 5 rf-ovrs | 89 | 93 | 86 | 89 | 125 | 10 | 122 | 20 | |

5 rffwd | 77 | 67 | 87 | 74 | 90 | 45 | 123 | 19 | |||

6 | Original/Imbalanced | 6 rffwd | 93 | 50 | 100 | 67 | 19 | 19 | 239 | 0 | |

Balanced | 6 rf-ovrs | 95 | 66 | 100 | 79 | 25 | 13 | 239 | 0 |

**Table 2:** Prediction performance of individual best performing models on the test sets EV-1 and EV-2 compared with the state-of-the-art sub-models of the
consensus model introduced [6].

Comparison between literature-mined and L1-based feature selection methods: Before applying the L1-based sparse feature selection method, LASSO, we applied a set of feature reduction techniques. Using percent missing value analysis, we first reduced the number of features from 1444 to 1364. Second, we applied a pairwise correlation analysis supported by predictive power analysis to guide the filtering out of most relevant features. This analysis reduced the feature space to 213. Finally, for a more contextdependent feature selection analysis, the embedded dimensionality reduction technique, LASSO, was applied. Splitting data to training and validation sets (80:20), the best MSE loss was achieved on the validation set at the regularization parameter alpha=0.01. This reduced the feature space to 152.

Comparing the classification performance of each best feature
selection methodology (**Table 3**) shows that the literature retrieved
set of features (Best-First) outperforms the L1-based sparse feature
selection method (Pairwise correlation+LASSO), especially in terms
of specificity and F1-score. In our modeling, we want to achieve a
good harmony between sensitivity and specificity. We don’t want
to favour only true positives or true negatives. Hence, literaturebased
selected features represent the final set of choice in building
ToxTree-hERG Classifier.

Test sets | PIC50 threshold | Training dataset | Feature selection procedure | Model | AC | SN | SP | F1 | TP | FN | TN | FP |
---|---|---|---|---|---|---|---|---|---|---|---|---|

EV-1 | 4.5 | Original/Imbalanced | Best-First | 4o5rf | 88 | 98 | 58 | 93 | 166 | 4 | 30 | 22 |

Pairwise correlation+LASSO | 4o5rf_Lasso | 84 | 98 | 38 | 90 | 166 | 4 | 20 | 32 | |||

Balanced/over-sampling | Best-First | 4o5rf-ovrs | 89 | 95 | 67 | 93 | 162 | 8 | 35 | 17 | ||

Pairwise correlation+LASSO | 4o5rf_ovrs_Lasso | 86 | 96 | 54 | 91 | 164 | 6 | 28 | 24 | |||

EV-2 | 4.5 | Original/Imbalanced | Best-First | 4o5rf | 96 | 99 | 83 | 97 | 211 | 1 | 54 | 11 |

Pairwise correlation+LASSO | 4o5rf_Lasso | 95 | 100 | 78 | 97 | 212 | 0 | 51 | 14 | |||

Balanced/over-sampling | Best-First | 4o5rf-ovrs | 97 | 99 | 91 | 98 | 209 | 3 | 59 | 6 | ||

Pairwise correlation+LASSO | 4o5rf_ovrs_Lasso | 96 | 99 | 86 | 98 | 211 | 1 | 56 | 9 |

**Table 3: **Prediction performance of individual best performing sub-models on the test sets EV-1 and EV-2. The table compares RF models trained on the
same labeled datasets but using different set of features, either the literature retrieved set of features (following Best-First greedy algorithm), or L1-based
sparse selected set of features (following a pairwise correlation feature reduction followed by LASSO).

**ToxTree-hERG regressor: **Given the large dataset (8380 molecular
compounds) with numerical values as a target, we have also built
a regression model predicting the PIC50 value. The classification
performance of the regression model, ToxTree-hERG Regressor,
was then compared to the one of multiclass inducer, ToxTreehERG
Classifier, on the same test set (section 4.1.7). The regression
model was built using a Random Forest Regressor. This choice was
supported by the fact that Random Forests are very powerful in
depicting non-linear correlations between features; hence, further
performing a feature selection step following another embedded
greedy heuristic algorithm within the final regressor model. The
best model achieved an MSE=0.59 on the evaluation set of N=499.

**Figure 5** represents the performance of the regressor in predicting
the PIC50 potency values of a molecular compound with respect to
the ground truth values. The model is denoted as ToxTree-hERG
Regrossor in the rest of the paper and achieves a coefficient of
determination r2=0.67 on the test set.

**Figure 5:** Regression scatter plot of the Predicted vs. Observed [PIC]_50 of our ToxTree-hERG
Regressor model on the test set (N=499) combining both EV-1 and EV-2.

**ToxTree-hERG classifier:** As many reports and manuscripts [6,53- 55] reported that consensus QSAR models perform better than
individual models, we combined 405 rf and 405 rf-ovrs in a single
model named ‘combined-405 rf’. The decision making of the
combined-405 rf model is done as follows: First, if both 4o5rf and
4o5rf-ovrs predictions match, the new compound is assigned the
same class. Second, if both classes differ, we pick the class inferred
by the model reporting the highest probability. Finally, if both
classes and their probabilities are similar, the decision is reported
as inconclusive. The consensus/combined model also show slightly
higher performance than Kumar et al. combined model. To have
a final multiclass classifier, we organized the one-vs-all hERG
predictive models in a form of a binary tree to filter hERG blockers
from non-blockers at the three potency thresholds. The models are
applied sequentially in a pipeline. The final model (visualized in **Figure 6**) is denoted as ToxTree-hERG.

**Figure 6:** ToxTree-hERG classifier conceptual visualization inference pathway.

To briefly summarize ToxTree-hERG Classifier prediction process of a new molecular compound with unknow potency, we introduce the following steps: Given pre-computed 2D descriptors of a new molecular compound, we first select the 191 features used by our inducer system. Second, we normalize the data with the learned empirical mean and standard deviation. Third, we run 6rf-ovrs model to predict if it is a ‘strong blocker’. If it is a non-blocker, we run 5rf-ovrs model to evaluate if it is a ‘moderate blocker’. If it is a non-blocker, we run the combined_4o5rf consensus model to evaluate if it is a ‘weak blocker’, a ‘non-blocker’, or ‘inconclusive’.

**ToxTree-hERG benchmarking evaluation:** In order to benchmark
the performance of our ToxTree-hERG classifier and regressor
models with existing hERG liability prediction tools in the market,
a set of selected tools were evaluated on the combined test set of
both EV-1 and EV-2, resulting in N=499 molecular compounds to
be assessed.

Concerning the set of tools to be analyzed, we selected 9. Four of which are web-based servers, namely admet SAR, CoFFer, pkCSM and Pred-herg. Whereas, the remaining tools are standalone software, namely PaDEL-DDPredictor v2.1, Schrödinger/ QikProp, Simulation plus/ADMET Predictor, Star Drop v6.4, and Consensus model [6,56-63]. The binary evaluation was not conducted in house by running all of those tools on the test set, but retrieved from Kumar et al. manuscript reporting the statistics. Some tools report/predict only the potency values. Therefore, and for consistency of the results, the values were all converted to binary classes with a threshold of less than 30 µM being a blocker and above as a non-blocker.

In **Table 4**, we notice that ToxTree-hERG Classifier is outperforming
all the existing tools, including ToxTree-hERG Regressor, achieving
a binary accuracy of Q2=93.2%, with an improvement of 1.2% to
53.1%. We also notice that ToxTree-hERG Regressor shows a high
sensitivity compared to all the other models, which is mainly due to
the high imbalanced training set for this binary task. This problem
is elevated in ToxTree-hERG Classifier through the re-sampling
technique (SMOTE). Another important mechanism allowing
ToxTree-hERG to show good results is the architecture of the
model that filters out the potency level of a molecular compound *via* multiple sub-models trained at different cut-offs. Though the
dataset is still the same, each sub-model is trained on a different
distribution of data points depending on the cut-off used.

Inducer | AC | CCR | MCC | SN | SP |
---|---|---|---|---|---|

admetSAR | 68.1 | 57.2 | 27.9 | 78.7 | 35.8 |

CoFFer | 40.1 | 51.8 | 20.6 | 28.7 | 74.8 |

PaDEL-DDPredictor | 45.8 | 51.1 | 21.6 | 41.1 | 61.1 |

pkCSM | 76.6 | 62.6 | 36.8 | 90.2 | 35 |

Pred-herg | 70.5 | 77.2 | 49.8 | 64.1 | 90.2 |

Schrödinger/QikProp | 75.1 | 58.8 | 30.3 | 90.5 | 27.1 |

Simulation plus/ADMET Predictor | 74.3 | 64.4 | 38.3 | 84 | 44.7 |

StarDrop | 75.8 | 57.4 | 28.1 | 93.6 | 21.1 |

Consensus | 92 | 87.6 | 78.6 | 96.3 | 78.6 |

ToxTree-hERG Regressor | 86.8 | 72.4 | 60.6 | 99.5 | 45.3 |

ToxTree-hERG Classifier | 93.2 | 86.8 | 80.3 | 98.7 | 75 |

**Table 4: **Comparing prediction performance of ToxTree-hERG with the existing models and tools on a combined test set of both EV-1 and EV-2.

Since we used a one-vs-all approach to discriminate hERG blockers
from non-blockers, we can also evaluate the multiclass classification
accuracy of our model. **Figure 7** represents a multiclass confusion
matrix at the three potency intensity levels. Using eq. 14, we
computed the multiclass classification accuracy of ToxTree-hERG
achieving 74.5% on the test sets of EV-1 and EV-2 both combined
(N=499). The confusion matrix shows the power of the model in
predicting ‘moderate blockers’ with an accuracy performance of
83.3% while predicting ‘strong blockers’ with a lower accuracy of
59.8%. We can also notice that a significant percentage of wrong
classifications (purple cells) always happen in the neighboring
classes. This is expected as we may always have data points very
close to the decision boundaries of each sub-inducer in our model.
As we are running the models sequentially, some of the molecular
compounds having potency values less than the threshold or higher,
but at the same time very close to it gets assigned to the previous
or next class. From **Table 2** we can also infer that the Consensus
model [6] achieves a ‘strong blocker’ classification accuracy of only
30.8%; while, we are achieving a 2x higher performance at this
class. We again show how ToxTree-hERG Classifier outperforms
the Consensus model in predicting strong blockers.

**Figure 7:** Multiclass confusion matrix of ToxTree-hERG inducer on the combined evaluation sets of EV-1 and EV-2.

**Nav1.5 ML models-results and discussion**

**Feature multicollinearity elimination:** To reduce multicollinearity
of the features, PCA was applied on the entire normalized Dev-
Set-Nav of 551 selected features using sklearn decomposition
PCA python library [64]. The library implements Singular Value
Decomposition (SVD) algorithm for matrix factorization. Figure
S6 in the Supplementary Information section represents a
visualization of the 551 Principal Components (PCs) with respect
to their eigenvalues [65].

The graph shows that very few principal components are of great
importance than others. However, as the visualization of the 551
PCs is condensed and hard to analyze, we chose to display the
first 40 PCs with respect to their eigenvalues for better analysis,
as shown in **Figure 8** [66]. The blue curve represents the strength
(explained variance) of each PC in the projected space. While the
orange curve represents the cumulative explained variance, which
grows as we increase the number of PCs. The green horizontal line
represents the cut-off (90%) we chose to decide on the number of
principal components space to which the data will be projected.

**Figure 8:** Principal Component Analysis (PCA) of the Dev-Set-Nav dataset 551 normalized features. The graph
represents a visualization of the first 40 Principal Components (PC), with respect to their eigenvalues, as the
visualization of the 551 PCs will not be clear. The blue curve represents the strength (explained variance) of each
PC in the projected space. While the orange curve represents the cumulative explained variance, which grows as we
increase the number of PCs. The green horizontal line represents the cut-off (90%) we chose to decide on the number
of principal components space to which the data will be projected. The intersection, the black star, shows that 90%
of the energy is preserved at 22 principal components.

The intersection, the black star, shows that 90% of the energy is preserved at 22 principal components. Using eq. 4, we perform a linear transformation of our data were represents the learned matrix of the first k=22 eigenvectors and X~ is the z-score normalized Dev-Set-Nav dataset of 551 features. The new dimensionality of the reduced development set is now of 22 dimensions. The new reduced development set is denoted as Dev-Set-Nav-Red in the manuscript.

**Model building:** As our ultimate goal from this research is to build
a multiclass classifier (non-blocker, weak-blocker, moderate-blocker,
and strong-blocker) for Nav1.5 liability predictions, we applied
three of the state-of-the-art machine learning algorithms. We
investigated the performance of deep learning, random forest, and
a one-vs-rest approach of kernelized SVM models. All models were
trained on the normalized Dev-Set-Nav reduced to 22 features/PCs.
For best model selection and hyper parameter tuning, a stratified split of 90% training and 10% validation was used to analyze deep
learning models, and 10-fold stratified CV was applied in case of
RF and SVM.

After a multiclass tagging and splitting of the Dev-Set-Nav-Red, SMOTE re-sampling strategy was used to elevate the problem of imbalanced training datasets and biasing the generalization process in the case of minority classes.

**MLP analysis: **For hyper parameters tuning, we applied grid-based
search technique on 4 parameters (Activation Function, Dropout
Rate, Batch Normalization, and Batch Size) where each one takes
two different options. This resulted in 16 different configurations to
evaluate on a 3-layer MLP of 40 hidden neurons in the first layer, 20
hidden neurons in the second, and 4 output neurons. The training
of all models was conducted following Kaiming initialization in
case of ReLu activation function or Xavier initialization in case of Sigmoid, a learning rate of 10-3, L2-norm weight decay, and
optimized *via* Adam optimizer [67-70]. To pick the optimal model,
the best hyper parameters of the architecture were saved if the loss
on the validation set scored lower than the last saved best model
after a complete epoch.

**Table 5 **shows the results of the optimal hyperparameters
configuration of each of the 16 trained deep learning models after
4000 epochs. After labeling, splitting, and re-sampling procedures,
the models were trained on a balanced dataset of 3040 data points
distributed as follows: Strong-blokers: 760, Moderate-blockers: 760,
Weak-blockers: 760, and Non-blocker: 761. The reported statistics
were validated on a validation set of 391 observations distributed as
follows: Strong-blockers: 98, Moderate-blockers: 98, Weak-blockers:
98, Non-blocker: 97. The results on the table report the multiclass
accuracy, denoted as ACmul followed by the binary classification
metrics where the binary accuracy is denoted as ACbin. The binary
classification cut-off was based on a threshold of PIC50=4.5, which
is equivalent to an IC50=30 μM.

Model # | Activation Function | Dropout rate | Batch Normalization | Batch size | ACmul | ACbin | SN | SP | F1 | MCC | TP | FN | TN | FP |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

1 | ReLu | 0.5 | Yes | 256 | 62.1 | 79.3 | 78.6 | 81.4 | 85.1 | 53.9 | 231 | 63 | 79 | 18 |

2 | ReLu | 0.5 | Yes | 512 | 61.5 | 78.3 | 78.6 | 77.3 | 84.5 | 50.5 | 231 | 63 | 75 | 22 |

3 | ReLu | 0.5 | - | 256 | 63.6 | 80.6 | 82 | 76.3 | 86.4 | 53.7 | 241 | 53 | 74 | 23 |

4 | ReLu | 0.5 | - | 512 | 62 | 74.9 | 76.9 | 69.1 | 82.2 | 41.7 | 226 | 68 | 67 | 30 |

5 | ReLu | - | Yes | 256 | 70.4 | 82.9 | 82.3 | 84.5 | 87.8 | 60.8 | 242 | 52 | 82 | 15 |

6 | ReLu | - | Yes | 512 | 69.4 | 82.4 | 82.3 | 82.5 | 87.5 | 59.2 | 242 | 52 | 80 | 17 |

7 | ReLu | - | - | 256 | 69.6 | 81.8 | 81.6 | 82.5 | 87.1 | 58.3 | 240 | 54 | 80 | 17 |

8 | ReLu | - | - | 512 | 68.5 | 76.7 | 78.2 | 72.2 | 83.5 | 45.9 | 230 | 64 | 70 | 27 |

9 | Sigmoid | 0.5 | Yes | 256 | 51.2 | 72.4 | 71.8 | 74.2 | 79.6 | 40.6 | 211 | 83 | 72 | 25 |

10 | Sigmoid | 0.5 | Yes | 512 | 50.6 | 72.1 | 71.4 | 74.2 | 79.4 | 40.3 | 210 | 84 | 72 | 25 |

11 | Sigmoid | 0.5 | - | 256 | 53.7 | 76.2 | 76.2 | 76.3 | 82.8 | 47 | 224 | 70 | 74 | 23 |

12 | Sigmoid | 0.5 | - | 512 | 55.1 | 75.4 | 76.2 | 73.2 | 82.4 | 44.4 | 224 | 70 | 71 | 26 |

13 | Sigmoid | - | Yes | 256 | 65.1 | 81.9 | 81.6 | 83.4 | 87 | 59 | 240 | 54 | 81 | 16 |

14 | Sigmoid | - | Yes | 512 | 64.8 | 81.3 | 80.6 | 83.5 | 86.7 | 57.9 | 237 | 57 | 81 | 16 |

15 | Sigmoid | - | - | 256 | 83.9 | 80.8 | 80.6 | 81.4 | 96.3 | 56.3 | 237 | 57 | 79 | 18 |

16 | Sigmoid | - | - | 512 | 63.5 | 80.6 | 81 | 79.4 | 86.2 | 55 | 238 | 56 | 77 | 20 |

**Table 5: **Performance of each model in the hyperparameter search space of the four parameters (Activation Function, Dropout Rate, Batch Normalization,
and Batch Size) on the 10% validation set. The table reports the multiclass accuracies ACmul and the binary metrics starting from the binary accuracy
ACbin onward. The binary classification is based on the threshold of IC50=30 µM. Models in bold (Model 5 and 6) represent the best performing models.
In ‘Dropout Rate’ and ‘Batch Normalizations’ columns, ‘-‘means that the model was trained without the use of this hyper parameter.

**Table 5 **illustrates that ReLu activation function provides better
performing convergence compared to sigmoid in terms of accuracy.
For both activation functions, we notice that the choice of
batch normalization without dropout gives better performance.
Concerning the best performing model, we see that models 5 and
6 have comparable binary classification (82%) and F1-score (87%);
however, model 5 performs better in multiclass classification.
Hence, the best MLP model of choice for our problem is model 5.
This decision is further supported by the evaluation on the external
test set, EV-Set-Nav, in **Table 6**, where model 5 scores higher in
both binary and multiclass accuracies as well as in the F1-score,
with 3%, 4%, and 2% improvement respectively.

Model # | ACmul | ACbin | SN | SP | F1 | MCC | TP | FN | TN | FP |
---|---|---|---|---|---|---|---|---|---|---|

5 | 69.6 | 79.8 | 81.4 | 58.3 | 88.2 | 24.6 | 131 | 30 | 7 | 5 |

6 | 65.4 | 76.3 | 78.9 | 41.7 | 86.1 | 12.5 | 127 | 34 | 5 | 7 |

**Table 6:** Performance of the comparable models 5 and 6 on the test set. Model 5 still proves to be the optimal.

**RF analysis: **This section analyses the performance of Random
Forest in our development set. Here, we used RF to model a
multiclass inducer. There are two hyper parameters to tune for
this algorithm: the number of estimators and the maxim depth. By
applying a 10-fold stratified cross validation training on a SMOTE
over-sampled Dev-Set-Nav-Red, we performed a grid-based hyper
parameter search to find the optimal number of decision trees of
our best performing RF. In our strategy, we applied what is called
by pre-pruning. The search space consisted of a set of 10 different
values starting at 10 and incrementing by 10 for each next number
of estimators to evaluate. The selection process was based on
three metrics: the multiclass (Multiclass ACcv) and binary (Binary
ACcv) cross-validation estimate of accuracy as well as the crossvalidation
estimate of F1-score (F1cv). Those metrics are derived
by computing the mean value of the accuracies achieved at each
validation fold during one complete CV run and using the same
number of estimators. The results are displayed in Table S1 under
the Supplementary Information section.

We noticed that when the number of estimators is above 30,
we achieve almost the same Binary ACcv with similar〖F1〗_
cv. Concerning the Multiclass ACcv, we noticed that it keeps
increasing slowly while increasing the number of estimators but
still stays within a comparable range. Therefore, we chose the best
performing Random Forest with the least number of estimators, i.e.,
30 numbers of estimators, as a form of regularization. The next step
is to find the best maximum depth of the trees using an ensemble of
30 estimators. The hyper parameter search is performed again *via* a
10-fold stratified CV. Table S2, in the Supplementary Information
section, shows the results of the search.

The statistics are arbitrary close to each other, in Table S2. However, a max depth of 24 shows the highest performance (in terms of fold multiclass-accuracy, binary-accuracy, and F1-score). At the same time, it is the most commonly found best max depth in the 10- fold stratified CV. Therefore, a bootstrapping-based RF with 30 estimators and a max depth of 24 will be used to build our optimal RF multiclass model on the entire re-sampled Dev-Set-Nav-Red.

**Kernelized SVM analysis: **To analyze the performance of kernelized
SVMs in this problem, we followed a one-vs-rest approach to classify
molecular compounds at all of the three potency levels. We applied
grid search on the constrained convex objective function defined
in eq. 5 to identify the best parameters of the optimal kernelized
SVMs. The grid-based search, which was conducted following a
10-fold stratified cross validation, counted 3 hyper parameters to
examine:

**Kernel function:** 4 kernels including the linear, polynomial(poly),
sigmoid, and radial basis function(rbf) kernel

**Polynomial degree: **In case of polynomial kernel, 9 degrees were
examined (from 2 to 10)

**Penalty constant C:** For constraints relaxation/penalization, 10
values were evaluated of the penalty constant C, with 5 values less
or equal than 1 (0.1,0.2,0.5,0.8, 1) denoting a soft margin SVM
and 5 greater than 1 (3, 5, 10, 50, 100) denoting hard margin SVM.

The search space resulted in 120 different models for each of the
original and re-sampling methods, and at each of the three potency
thresholds. In total, to build our final classifier, we had to evaluate
3 × 3 × 120=1080 kernelized SVM models. Each row in **Table 7** corresponds to the best performing model among the 120 models
evaluated at a given threshold and using one of the sampling
techniques. Each row shows the best model’s 〖Ac〗_cv and the 〖F1〗_cv
along with the model configuration parameters.

PIC50 threshold | Model short name | Sampling strategy | Development class distribution | ACcv | F1cv | Kernel | Penalty constant | Degree | |
---|---|---|---|---|---|---|---|---|---|

blk | nblk | ||||||||

4.5 | 4o5svm | Original | 1442 | 108 | 87.8 | 88.6 | rbf | 5 | - |

4o5svm-ovrs | Over-sampling | 1442 | 1442 | 88.2 | 88.1 | rbf | 3 | ||

4o5svm-unds | Under-sampling | 108 | 108 | 80.3 | 78.8 | rbf | 10 | - | |

5 | 5svm | Original | 1018 | 532 | 76.7 | 80 | poly | 0.2 | 3 |

5svm-ovrs | Over-sampling | 1018 | 1018 | 82.5 | 83.1 | rbf | 10 | - | |

5svm-unds | Under-sampling | 532 | 532 | 77.8 | 77.3 | rbf | 100 | - | |

6 | 6svm | Original | 160 | 1390 | 85.6 | 75.3 | rbf | 5 | - |

6svm-ovrs | Over-sampling | 1390 | 1390 | 88.5 | 88.5 | rbf | 3 | - | |

6svm-unds | Under-sampling | 532 | 532 | 79.3 | 79.7 | rbf | 5 | - |

**Table 7:** The best performing model, among the 120 models evaluated at each given threshold and using one of the sampling techniques. In ‘Degree’ column ‘-’ represents the model does not take a degree parameter.

In **Table 7**, we see that the Radial Basis Function (rbf) represents the
best performing kernel for our given problem. For both thresholds
of PIC50=6 and PIC50=4.5, performance results between training
on the imbalanced/original datasets and balanced ones does not
show that we are losing much by not adding synthetic samples.
We are already performing at a level above 85% for accuracy and
75% for F1-score. The radial basis function seems finding a better
generalizing decision boundary, with a quite hard margin, on the
original sets. Hence, we are opting for 6svm and 4o5svm as the
optimal models for our model building at this potency levels.
Concerning the threshold of PIC50=5, training on the original
dataset does not seem to generalize well enough compared to a
SMOTE over-sampled training set. We see an increase by ~6%
when adding synthetic samples to the training set.

Also, the class distribution is not skewed, where blockers represent
double the molecular compounds of non-blockers with a fair
number of total observations. Therefore, we opted for SMOTE resampling
to bias the generalization process of moderate blockers
predictor. We chose 5svm-ovrs as the best optimal model at this
level. The selected models were also evaluated individually on EVSET-
NAV and proven to be highly preformat on unseen data, as
shown in **Table 8**.

Model | AC | SN | SP | F1 | TP | FN | TN | FP |
---|---|---|---|---|---|---|---|---|

4o5svm | 85 | 85 | 83 | 91 | 137 | 24 | 10 | 2 |

5svm-ovrs | 83 | 86 | 80 | 87 | 98 | 16 | 47 | 12 |

6svm | 83 | 72 | 84 | 47 | 13 | 5 | 131 | 24 |

**Table 8: **Prediction performance of best individual kernelized SVM models on the evaluation set.

For our final multiclass classifier, we organized the one-vs-rest
Nav1.5 predictive sub-models in a form of a binary tree, where
inducers are applied sequentially, to filter Nav1.5 blockers from
non-blockers at the three potency thresholds. The final model
(visualized in **Figure 9**), is denoted as ToxTree-Nav1.5.

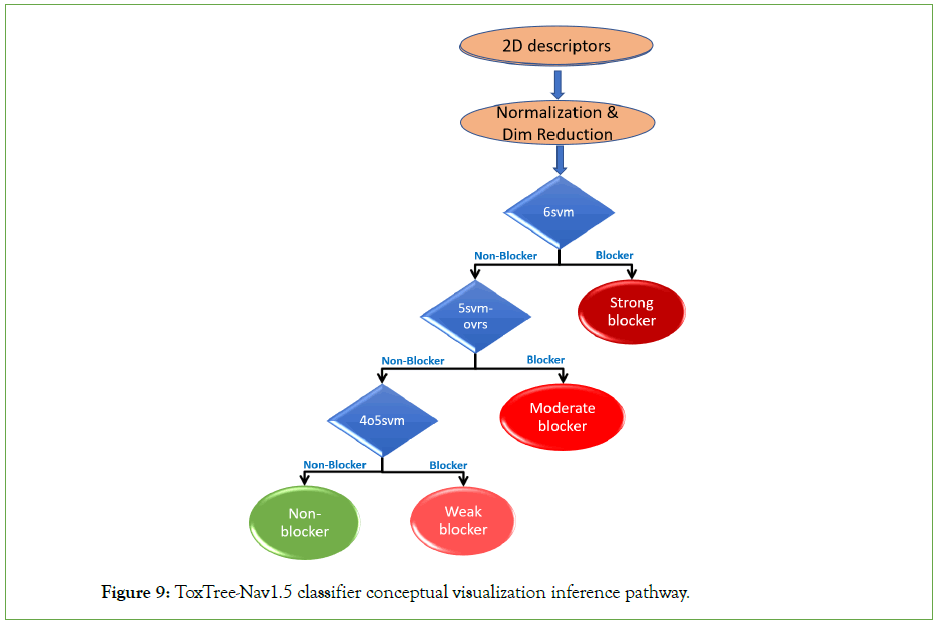

**Figure 9:** ToxTree-Nav1.5 classifier conceptual visualization inference pathway.

A new test molecule with unknown Nav1.5 potency will be evaluated by ToxTree-Nav1.5 model as follows: Given the extracted 2D descriptors using PaDEL-descriptors, we first, extract the relevant 2D descriptors, normalize those features, and then apply a linear transformation to perform dimensionality reduction. Once, we have the final 22-dimensional vector embedding of the compound, the three selected best performing SVM models (6svm, 5svm-ovrs, and 4o5svm) are applied sequentially in the given order. If the molecular compound is filtered out by one model as a nonblocker, it will be passed on to the following model, for further evaluation, in the pipeline. However, if the compound is predicted as a Nav1.5 blocker, it will be described as either ‘Strong blocker’, ‘Moderate Blocker’, or Weak blocker’ according to the model that took the decision in the order of the pipeline respectively.

**ToxTree-Nav1.5 regressor: **Similarly to hERG advanced data
analytics, we have also built a regression model, on the 1550 unique
set of molecular compounds, predicting their PIC50 potency value.
The classification performance of the regression model, ToxTree-
Nav1.5 Regressor, was then compared to the one of multiclass
inducer, ToxTree-Nav1.5 Classifier, on the same test set (section
4.2.4).

A ridge regression model was compared to a random forest regressor. The random forest regressor achieved higher performance on the cross-validation estimate of MSE. The best model achieved an MSE=0.26 on the evaluation set of N=173.

Figure S7 in the supplementary information represents the performance of our regressor in predicting the PIC50 potency values of molecular compounds with respect to the ground truth values. The model is denoted as ToxTree-Nav1.5 Regrossor in the rest of the paper and achieves a coefficient of determination r2=0.71 on the test set.

**Comparative prediction performance of the four nav1.5 models:** While comparing performances of the four Nav1.5 models (MLP,
RF, ToxTree-Nav1.5 Regressor, and ToxTree-Nav1.5 Classifier), we
notice that the one-vs-rest approach is outperforming the other
three in the binary classification task. Concerning ToxTree-Nav1.5
Regressor, the performance results were better than expected.
The composite descriptors created by the linear transformation
step captured well the embedded information of our dataset. All
of the four models were compared on the same test set of N=173
molecular compounds labeled at the threshold PIC50=5.

The observation on the one-vs-rest approach can also be derived
from the performances reported in **Table 7**, where we see the binary
cross validation estimate of accuracy of the three selected models
scoring as high as 85% with higher F1-scrores. Furthermore, the
sub-models selected to build the final inducer were trained mainly
on original labeled datasets compared to the RF and MPL that
were trained on SMOTE re-sampled datasets to achieve their best
performances. Therefore, our best final deployed model will be
ToxTree-Nav1.5 Classifier. This decision is further supported by the evaluation of the three models on the unseen test set EV-Set-Nav
(N=173). **Table 9** confirms the final decision of our best model. The
performance of ToxTree-Nav1.5 Classifier shows an improvement
of 4% to 6% for binary classification and higher performance in the
rest of the binary metrics. Concerning multiclass classification, our
selected final model demonstrates an out-performance to both the
Random Forest and the deep learning model with an improvement
of more than 4%.

Inducer | Multi AC | AC | CCR | MCC | SN | SP | F1 | TP, FN, TN, FP |
---|---|---|---|---|---|---|---|---|

MLP | 69.6 | 80.9 | 76.5 | 56.2 | 90.4 | 62.7 | 86.2 | 103, 11, 37, 22 |

RF | 70.3 | 82.1 | 79 | 59.4 | 88.6 | 69.5 | 86.7 | 101, 13, 41, 18 |

ToxTree-Nav1.5 Regressor | - | 75.7 | 73.8 | 46.9 | 79.8 | 67.8 | 81.2 | 91, 23, 40, 19 |

ToxTree-Nav1.5 Classifier | 74.9 | 86.7 | 86.2 | 71.2 | 87.7 | 84.7 | 89.7 | 100, 14, 50, 09 |

**Table 9:** Comparing prediction performance of ToxTree-Nav1.5 with MLP and RF best models on the unseen test set EV-Set-Nav.

Cardiac ion channels are a group of voltage-gated channels that function collectively and in full harmony to generate the action potential, which is needed for cardiac cells’ contraction. The ionic currents produced by the hERG and Nav1.5 ion channels form a major component of the cardiac action potential and blocking these channels by small molecule drugs can lead to severe cardiovascular complications. This rising concern has pushed scientists and researchers to look for new methods to identify hERG and Nav1.5 blockers. The recent exponential increase of bioactivity data on these channels makes them well-suited to build robust machine learning models to predict their liability. Most research work in the field has focused only on one cardiac ion channel, namely hERG. Here, we describe two models to predict both hERG and Nav1.5 drug-mediated liability. Our ML models used two large manually curated datasets of size 8380 and 1550 for hERG and Nav1.5, respectively. The two sets hold potency information of the two targets and were used to build 2D descriptor-based multiclass classification inducers at three different potency cut-offs (i.e. 1 μM, 10 μM and 30 μM). The first model, named ToxTree-hERG Classifier, represents an ensemble of Random Forest models applied sequentially to predict the inhibition of a new compound with unknown potency. The second model, named ToxTree-Nav1.5 Classifier consists of a set of one-vs-rest carefully trained kernelized SVM sub-models run sequentially to filter out the potency level of a compound. The hERG model was evaluated on an external test set of N=499 compounds achieving a binary performance of Q2=93.2% and a multiclass accuracy of Q4=74.5%. The model was also benchmarked to existing tools and inducers showing an improvement of 1.2% to 53.2% in classifying blockers from nonblockers, beating the state-of-the-art consensus model. Whereas, the first Nav1.5 liability predictive model was evaluated on an external balanced test set of 173 unique compounds extracted from PubChem. Three different robust models were built and analysed for best final model selection, namely a MLP, a multiclass RF, and a pipeline of kernelized SVMs (ToxTree-Nav1.5 Classifier). ToxTree-Nav1.5 AI was selected as the best classifier model as most of the sub-models were trained on original datasets, without any re-sampling techniques needed. Also, the selected model beats the other two classification models in binary classification and achieves a comparable Q4 performance with RF while outperforming the MLP. The final model yielded a binary classification performance of Q2=86.7% and a multiclass accuracy of Q4=74.9%.

The authors would like to acknowledge funding from the Natural Sciences and Engineering Research Council of Canada (NSERC) Discovery grant.

This research project received funding from the Natural Sciences and Engineering Research Council of Canada (NSERC).

- DiMasi JA, Grabowski HG, Hansen RW. Innovation in the pharmaceutical industry: new estimates of R&D costs. Journal of health economics. 2016; 47:20-33.
- Paul SM, Mytelka DS, Dunwiddie CT, Persinger CC, Munos BH, et al. How to improve R&D productivity: the pharmaceutical industry's grand challenge. Nat Rev Drug Discov. 2010; 9(3):203–14.
- Pu L, Naderi M, T. Liu, H. Wu, S. Mukhopadhyay, and M. Brylinski. eToxPred: A machine learning-based approach to estimate the toxicity of drug candidates. BMC Pharmacology and Toxicology (2019) 20:2.
- Hung CL, Chen CC. Computational approaches for drug discovery. Drug Dev Res. 2014; 75:412-8.
- Quantitative Structure-Activity Relationship (accessed on August 2019).
- Kumar KLS, Praba SK, Kristama R. hERG liability classification models using machine learning techniques. Computational Toxicology Elsevier B. V. 2019; 12.
- Wang S, Li Y, Xu L, Li D, Hou T. Recent developments in computational prediction of HERG blockage. Curr. Top. Med.Chem. 2013; 13:1317-1326.
- Villoutreix BO, Taboureau O. Computational investigations of HERG channel blockers: New insights and current predictive models. Adv. Drug Deliv. Rev. 2015; 86:72-82.
- Czodrowski P. HERG Me Out. J Chem Inf. Model. 2013; 53, 2240–2251.
- RDKit. Open-Source Chemiformatics.
- Gaulton A, Bellis LJ, Bento AP, Chambers J, Davies M. ChEMBL: A largescale bioactivity database for drug discovery. Nucleic Acids Res. 2012; 40:D1100–D1107.
- Shen MY, Su BH, Esposito EX, Hopfnger AJ, Tseng YJ. A comprehensive support vector machine binary hERG classifcation model based on extensive but biased end point hERG data set. Chem. Rex. Toxicol. 24, 934–49 (2011).
- Wang Y, Bryant SH, Cheng T, Wang J, Gindulyte A, et al. PubChem BioAssay: 2017 update. Nucleic Acids Res. 45 (D1) (2017) D955–D963.
- Liu L. novel bayesian classifcation models for predicting compounds blocking HERG potassium channels. Acta Pharmacol.Sin. 2014; 35:1093-1102.
- Doddareddy, M. R., Klaasse, E. C., Shagufa Ijzerman, A. P. & Bender, A. Prospective validation of a comprehensive in silico herg model and its applications to commercial compound and drug databases. Chem Med Chem. 2010; 5:716-729.
- Braga RC. Pred-HERG: A novel web-accessible computational tool for predicting cardiac toxicity. Mol Inform. 2015; 34: 698-701.
- Yap CW. PaDEL-Descriptor: An open source software to calculate molecular descriptors and fingerprints. J. Comput. Chem. 32 (7) (2011) 1466–1474.
- Günnemann S. Machine learning: Lecture1-decisiontrees, data mining and analytics, Technical University of Munich, 22.10.2018.
- Chembl target report card CHEMBL240 (accessed on January 2017).
- Kim S, Thiessen PA, Bolton EE, Chen J, Fu G. PubChem substance and compound databases. Nucleic Acids Res. 2016; 44(D1): D1202-13.
- Bioactivity health benefits (accessed on January 2017).
- Q. Li, F.S. Jorgensen, T. Oprea, S. Brunak, O. Taboureau. hERG classification model based on a combination of support vector machine method and GRIND descriptors. Mol. Pharm. 2008;5(1):117-127.
- Arab, Issar, & Barakat, Khaled. Highly curated hERG dataset of 8879 unique molecular compounds with corresponding potency values. Zenodo. 2021.
[Crossref]

- Target Report Card.
- SCN5A - sodium voltage-gated channel alpha subunit 5 (human).
- Issar A, Khaled B. (2021). Highly curated Nav1.5 dataset of 1723 unique molecular compounds with corresponding potency values [Data set]. Zenodo.
[Crossref]

- Bishop CM. (1995 3rdEdtn). Neural Networks for Pattern Recognition. Oxford University Press, Oxford.
- Haykin S. Neural Networks: A Comprehensive Foundation, second ed., Macmillan College Publishing, New York, 1998.
- Bishop CM. (2006 3rdEdtn). Pattern Recognition and Machine Learning: Multiclass SVMs. Oxford University Press, Cambridge CB3 0FB, U.K.
- Bishop CM. (2006 3rdEdtn). Pattern Recognition and Machine Learning: Kernel Methods. Oxford University Press, Cambridge CB3 0FB, U.K.
- Breiman L. Random forests. Mach. Learn. 2001; 45(1):5-32.
- Cutler A, Cutler D, Stevens J. (2011). Ensemble Machine Learning: Random Forests.
- Bishop CM. (2006 3rd Edtn). Pattern Recognition and Machine Learning: Continuous Latent Variables, third ed. Oxford University Press, Cambridge CB3 0FB, U.K.
- Bishop CM. (2006 3rdEdtn). Pattern Recognition and Machine Learning: Neural Networks, third ed., Oxford University Press, Cambridge CB3 0FB, U.K.
- Chang CC, Lin CJ. LIBSVM: A library for support vector machines. ACM Trans Intell Syst Technol. 2011;2(3):
- Scikit-learn (Accessed on August 2018).
- Scikit-learn.orgstable modules generatedRandomForestClassifier (Accessed on August 2019).
- Roberto T, VivianaC. Handbook of Molecular Descriptors, Wiley-VCH, 2000, p.303.
- Computer-Aided Prediction of Pharmacokinetic (ADMET) Properties.
- PaDEL-DDPredictor: Software to calculate pharmacodynamics, pharmacokinetics and toxicological properties of compounds. (Accessed on August 2018).
- Zhang Y, Zhao J, Wang Y, Fan Y, Zhu L, Yang Y, et al. Prediction of hERG K+ channel blockage using deep neural networks. Chem Biol Drug Des. 2019;94(5):1973-1985.
[Crossref] [Google Scholar] [PubMed]

- Keserü GM. Prediction of hERG potassium channel affinity by traditional and hologram qSAR methods. Bioorg Med Chem Lett. 2003 18; 13(16):2773-2775.
[Crossref] [Google Scholar] [PubMed]

- Sun H, Huang R, Xia M, Shahane S, Southall N, Wang Y. Prediction of hERG liability–using SVM classification, bootstrapping and jackknifing. Mol Inform. 2017; 36(4):1600126.
[Crossref] [Google Scholar] [PubMed]

- Stable modules generated.StandardScaler.(Accessed on August 2019).
- Sklearn.preprocessing.StandardScaler(accessed on August 2020).
- Kohavi R. A study of cross-validation and bootstrap for accuracy estimation and model selection. InIjcai 1995; 14(2):1137-1145.
- Chawla NV, Bowyer KW, Hall LO, Kegelmeyer WP. SMOTE: synthetic minority over-sampling technique. Journal of artificial intelligence research. 2002;1(16):321-357.
- Imbalanced learn documentation(accessed August 2019).
- Mani I, Zhang I. kNN approach to unbalanced data distributions: A case study involving information extraction. In proceedings of workshop on learning from imbalanced datasets 2003; 126, pp. 1-7. ICML.
- Imbalanced-learn the docs stable generatedimblearn.under_sampling near miss.(Accessed August 2017).
- Srivastava N, Hinton G, Krizhevsky A, Sutskever I, Salakhutdinov R. Dropout: a simple way to prevent neural networks from overfitting. J. Mach. Learn. Res. 2014; 15(1):1929-1958.
- Offe S, Szegedy C. Batch normalization: Accelerating deep network training by reducing internal covariate shift. InInternational conference on machine learning 2015; 448-456. PMLR.
- Glorot X, Bengio Y. Understanding the difficulty of training deep feedforward neural networks. J Mach Learn. Res. Proceedings Track. 2010; 249-256.
- OECD: OECD principles for the validation, for regulatory purposes, of (Quantitative) Structure-Activity Relationship models, (accessed on September 2019).
- Tropsha A. Best practices for QSAR model development, validation, and exploitation. Mol Inform. 2010; 29(7):476-488.
[Crossref] [Google Scholar] [PubMed]

- Kuz'min VE, Muratov EN, Artemenko AG, Varlamova EV, Gorb L, Wang J, et al. Consensus QSAR modeling of phosphor‐containing chiral AChE inhibitors. QSAR Comb. Sci. 2009; 28(7):664-677.
- Cheng F, Li W, Zhou Y, Shen J, Wu Z, Liu G, et al. admetSAR: A comprehensive source and free tool for assessment of chemical ADMET properties.J Chem Inf Model.2012; 26: 52(11):3099-3105.
[Crossref] [Google Scholar] [PubMed]

- Gütlein M, Kramer S. Filtered circular fingerprints improve either prediction or runtime performance while retaining interpretability. J Cheminform. 2016; 8(1):1-6.
[Google Scholar] [PubMed]

- Pires DE, Blundell TL, Ascher DB. pkCSM: predicting small-molecule pharmacokinetic and toxicity properties using graph-based signatures. J Med Chem. 2015; 58(9):4066-4072.
[Crossref[ [Google Scholar] [PubMed]

- Braga RC, Alves VM, Silva MF, Muratov E, Fourches D, Lião LM, et al. PredhERG: A novel webaccessible computational tool for predicting cardiac toxicity. Mol Inform.2015;34(10):698-701.
[Crossref] [Google Scholar] [Pubmed]

- He Y, Liew CY, Sharma N, Woo SK, Chau YT, Yap CW. PaDELDDPredictor: Open source software for PDPKT prediction. J Comput Chem. 2013; 34(7):604-610.
[Crossref] [Google Scholar] [PubMed]

- Schrödinger Release 2017-2: LigPrep, Schrödinger, LLC, New York, NY, 2017.
- ADMET property prediction and QSAR model-building application.
- Optibrium stardrop.
- sklearn.decomposition.PCA (Accessed on August 2019).
- Halko N, Martinsson PG, Tropp JA. Finding structure with randomness: Probabilistic algorithms for constructing approximate matrix decompositions. SIAM review. 2011; 53(2):217-88.
- Arab I, Barakat K. ToxTree: Descriptor-based machine learning models for both hERG and Nav1. 5 cardiotoxicity liability predictions. arXiv preprint arXiv:2112.13467. 2021;
- Kingma DP, Ba J. Adam: A method for stochastic optimization.2014. arXiv preprint arXiv:1412.6980.
- Unleashing the potential of big data in biology (accessed on August 2019).
- Fine TL. Feedforward Neural Network Methodology. Springer Science & Business Media; 2006.

**Citation:** Arab I, Barakat K (2022) ToxTree: Descriptor Based Machine Learning Models to Predict hERG and Nav1.5 Cardiotoxicity. J Pharmacogenom
Pharmacoproteomic. 13:006.

**Copyright: **© 2022 Arab I, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which
permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
