Research Article - (2014) Volume 4, Issue 1

Cytotoxic Effects of Drug-loaded Hyaluronan-Glutaraldehyde Cross-Linked Nanoparticles and the Release Kinetics Modeling

MA Abdullah1*, Gul-e-Saba1 and A Abdah2
1Department of Chemical Engineering, Universiti Teknologi Petronas, Bandar Seri Iskandar, 31750, Tronoh, Perak, Malaysia, E-mail: [email protected]
2Department of Biomedical Sciences, Universiti Putra Malaysia, Serdang, 42400, Selangor, Malaysia, E-mail: [email protected]
*Corresponding Author: MA Abdullah, Department of Chemical Engineering, Universiti Teknologi Petronas, Bandar Seri Iskandar, 31750, Tronoh, Perak, Malaysia, Tel: 605-3687636, Fax: 605-3656176 Email:


In this study, paclitaxel (PTX)-loaded hyaluronic acid (HA) nanoparticles (NPs) were synthesized. FESEM and TEM showed HA-PTX NPs with spherical shape and sizes >100 nm. TheHA entrapment maintained the crystalline nature of PTX as suggested by XRD, and the entrapment was confirmed by the characteristic peak of PTX at 1736 cm-1 by FTIR. HA-PTX showed cytotoxicity towards lung (A549) (IC50 0.3 μg/ml), breast (MCF-7) (IC500.2 μg/ml) and colorectal (HT-29) (IC50 0.2 μg/ml) cancer cells, with 2-3 fold more cytotoxic effects than free PTX. At 10 ng/ml in A549 cell lines, PTX induced apoptosis, whilst HA-PTX showed enhanced apoptosis. The release kinetics profile showed PTX release in a biphasic manner, with initial burst release of 60-70%, followed by a slow and uniform release. PTX release was best modeled by first-order kinetics, Higuchi and Korsmeyer-Peppas models suggesting that it was concentration dependent, with anomalous, non-Fickian diffusion as a predominant mechanism for the drug transport.

Keywords: Hyaluronan; Paclitaxel; Drug delivery; Drug release models; Cytotoxicity; Cisplatin


Cancer continues to become a major killer with about 12.7 million cases and 7.6 million deaths reported. Out of these, 56% of the cases and 64% of the deaths occur in the developing world [1]. Compounding the problem are the drug adverse side effects, and the estimated 40% of the drugs in the pipeline not deliverable through the preferred route or in some cases, at all, owing to poor water solubility [2]. Regular screening and improved patient prognosis could enhance the survival rate. There are now developments in imaging technologies together with advancement in nanotechnology but high equipment costs dampen rapid progress. Chemotherapy has been an important component of cancer clinical management along with radiotherapy, in which the combined effects show more promising results [3-5]. The use of pharmaceutical solvents to increase drug solubility may however have disastrous effects [6].

Effective Drug-delivery systems (DDS) are being developed for targeted delivery to tumor cells and spare the normal tissues, with reduced severe systemic toxicity within the therapeutic concentration [7]. Ligation of anticancer drug to a biocompatible polymer could enhance drug stabilization, localization and controlled release with improved bioavailability of chemotherapeutic agents. Sustainedrelease formulations for many hydrophobic drugs are difficult because they may be released too slowly from the nanoparticles (NPs), thus diminishing the efficacy. Modifying water uptake into the NPs can speed up the release, whilst at the same time retaining the desired drug sustained-release profile [8].

Nano-vehicle aims to reduce adverse side effects with improved bioavailability of chemotherapeutic agents [9], and these include liposomes, polymer therapeutic conjugates, polymeric micelles, dendrimers, nanoshells and nucleic acid-based nanoparticles. The wide applications of polymeric nano-carriers are due to their characteristic features and remarkable results in preclinical studies, demonstrating their potential as therapeutic carriers [10]. Nanomedicines confer several advantages over naked drug such as reducing premature degradation, improving interaction with the biological environment, enhancing absorption or bioavailability into selected tissue and prolonging retention time with effective intracellular penetration [11]. Rapid advances in cell and molecular biology and genomics and proteomics research could further facilitate identification of novel tumor-specific molecular targets and better understanding of the pathophysiology of various diseases, leading to improved diagnosis and ultimately disease therapy [12].

Hyaluronic acid (HA) is a glycosaminoglycan found inside human body and distributed throughout the epithelial, connective, and neural tissues [13,14]. It is the main component of the extracellular matrix and the main ligand for CD44 and Receptor for Hyaluronan-Mediated Motility (RHAMM). The receptors are over-expressed in a variety of tumor cell surfaces including human breast epithelial cells, colon cancer, lung cancer and acute leukemia cells. Due to the versatile nature of HA, bio-conjugates of low molecular weight HA with cytotoxic agents have been developed [15,16]. The aim is to improve solubility of cytotoxic agent to facilitate its intravenous administration and for effective targeting to cancerous cells, with enhanced therapeutic efficiency and sustained/control release properties [14].

Paclitaxel (PTX), a diterpenoid originally isolated from the bark of the Pacific yew, Taxusbrevifolia, is a powerful anti-mitotic agent. It binds to microtubules, inhibits their depolymerization into tubulin, and stabilizes tubulin polymerization resulting in cell cycle arrest and mitosis inhibition. Although PTX has shown remarkable potential as anticancer compound, it causes toxicity, with drug resistance in some tumors, and has poor stability and sparing aqueous solubility. Taxol™, the clinically used formulation of PTX, contains polyoxyethylated castor oil (CremophorTM EL) and ethanol. Cremophor, is considered responsible for hypersensitivity reactions and the side effects observed with PTX infusions which include nausea, vomiting, diarrhea, mucositis, myelosuppression, cardiotoxicity, and neurotoxicity [14,17]. Cisplatin (Pt) is another widely used chemotherapeutic agent to treat a variety of solid tumors [18]. Its therapeutic effect is dose limiting due to the presence of side effects such as gastrointestinal disturbance and especially nephrotoxicity [19]. Anti-cancer drugs coupled to HA can provide advantages in drug solubilization, stabilization, localization and controlled release [20].

In the current study, PTX-entrapped HA nanoparticles were synthesized and characterized. The cytotoxic effects on breast (MCF-7), lung (A549) and colorectal (HT-29) cancer cell-lines were determined. The morphological and cell analysis were observed under inverted microscopy and flow cytometry. The interpretation of PTX released kinetics and mechanism based on zero order and first order kinetics and the drug release models based on Higuchi, Korsmeyer Peppas and Hixson-Crowell were established.

Materials and Methods

Human breast (MCF-7), colorectal (HT-29) and lung cancer cell lines (A549) were purchased from American Tissue Culture Collection. The Roswell Park Memorial Institute (RPMI) and Dulbecco’s Modified Eagle Media (DMEM) werepurchased from PAA Laboratories (Linz, Austria). Fetal Bovine Serum (FBS), penicillin-streptomycin, Trypsin- EDTA and hyaluronic acid sodium salt (MW 1.5 MDa) isolated from Streptococcus equisp were purchased from Sigma Aldrich. Paclitaxel (MW 853.9) was purchased from Acros Organic (USA). Apoptosis and necrosis study was done by using FITC AnnexinV Apoptosis Detection kit USA. All chemicals were of analytical grade.


The synthesis of HA-PTX NPs was prepared by using desolvation method with polymer cross-linking with a slight modification [20]. High molecular weight HA (1.5 MDa) degradation was achieved in dilute HCl (pH 0.5) for 24 h at 37°C, and stirred at 180 rpm to produce low molecular weight (LMW) HA (3.5 kDa) [21]. The product was then collected by the dialysis tube of 3.5 kDa MW. HA powder of 100 mg was dissolved in 10 ml of deionized water containing 2% Tween 20. The solution was heated at 40°C with constant stirring at 500 rpm to ensure homogeneous mixing. Two ml of 20% sodium sulfate was added slowly, followed by 1 ml of acetone containing 1 mg of PTX. Then, 9 ml of 20% sodium sulfate was added until the HA aggregates were formed, noted by changes in solution from clear to turbid. One ml of water was added, which changed the color from turbid back to clear solution. This was followed by adding 0.5 ml of glutaraldehyde solution (25%) to cross-link the HA. Four ml of sodium meta-bisulfite solution (12%) was added after 30 mins to stop the cross-linking process. After 2 h, the crude product was purified by dialysis method using 25 kDa MW tube and then lyophilized in a freeze drier over a 48 h period.


Field emission scanning electron microscope (FESEM) and transmission electron microscopy (TEM): The morphology of HAPTX NPs was characterized by FESEM (55 VP, Zeiss Supra) and TEM (80 kV 200FE Zeiss Libra). HA-PTX NPs was mounted on carbon tape and observed under FESEM. For TEM, one drop of PNPs suspension was placed on a carbon film coated on a copper grid.

Fourier transform infrared spectroscopy (FTIR): IR spectra measurements were performed for a thin HA-PTX NPs pellet using a Shimadzu FTIR-8100 IR spectrometer (Kyoto, Japan) by KBr pellets at 5:95 ratio.

X-ray diffraction (XRD): XRD of HA cross-linked NPs (void) and HA-PTX NPs were obtained with a D8-Advance Bruker (AXS) using CuKα radiation (40 kV, 20 mA) to determine the crystallinity of PTX in cross-linked HA. All experiments were performed at room temperature.

Cell culture

The MCF-7 and HT-29 cell lines were maintained in RPMI 1640 culture medium; and A549 in DMEM supplemented with 10% FBS and 1% antibiotics (100 IU/ml penicillin and 100 μg/ml streptomycin). Cell lines were grown in 25 cm3 and 75 cm3 tissue culture flasks in a humidified atmosphere, containing 5% CO2 and 95% air, at 37°C. The changing of media was done every 2-3 days, by replacing old media with fresh media, after washing cells with PBS (pH 7.4). After the cell growth reached 80% confluency (as observed under inverted microscope). The sub-culturing was done at 1:3 ratio, in case of 25 cm3 culture flask, or 1:1 ratio in case of 75 cm3 culture flask. The old media was removed and the cells washed with PBS three times. The cells were harvested by adding trypsin (5ml), spread all over the surface of tissue culture flask and placed in an incubator for 7-10 min. After incubation, cells were detached and then rinsed with culture media before the cells pipetted out.

MTT (3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyl tetrazolium bromide) assay: The in vitro cytotoxicity of anticancer drugs (Pt and PTX), HA-Pt and HA-PTX NPs on A549, MCF-7 and HT-29 were evaluated using MTT assay [22]. MTT assay is a colorimetric assay in which a yellow tetrazolium salt (MTT) is reduced by a viable cell mitochondrial enzyme (dehydrogenase) to produce purple crystals of formazan. The amount of colored product formed is directly proportional to the number of viable cells. Solution of Pt, PTX, HAPt and HA-PTX NPs was freshly prepared in PBS, dimethyl sulfoxide (DMSO) and media, as described earlier.

Cells were seeded into 96-well plate (~5000 cells/ml) in 100 μl of RPMI or DMEM and incubated for 24 h. Different concentrations of Pt and HA-Pt (0.01, 0.1, 1, 10,100,1000,10000 μg/ml) were prepared in culture media. The concentration of PTX and HA-PTX were prepared in culture media at 0.001, 0.01, 0.1,1,10,100 μg/ml. The individual cell lines treated with Pt, HA-Pt, PTX and HA-PTX at various concentrations were incubated at 37°C with 5% CO2 in a humidified atmosphere for 24, 48 and 72 h. Cells were treated with 20 μl of 3-(4,5-dimethylthiazol- 2-yl) - 2,5 diphenyltetrazolium bromide (MTT) and incubated for 4 h. Medium was removed and 100 μl DMSO/well was added to dissolve formazan purple crystal. The MTT reading was done at 570 nm, with reference at 630 nm, using UVM 340 micro plate reader. Each experiment was carried out in triplicate in three independent experiments for each cell line.

The percentage of cytotoxicity was calculated as follows [23]:

image        (1)

Where ODsample represents the optical density (absorbance) of the samples (drug at respective concentration + media + cells), ODblank as the optical density of the blank (drug + media only), and ODcontrol as the optical density of the control wells without treatments (cells + media only).

A dose-response curve (percentage of cell viability versus sample concentration) was plotted and the sample concentration that inhibits 50% of the cell viability (IC50) was determined from the graph. The procedure was repeated for each sample and cell line.

Morphological analysis of apoptosis and necrosis

Inverted microscopy: Cell morphology was observed under inverted microscope (Motic AE31). The MCF-7, A549 and HT-29 cells were seeded for 24 hours. After washing the cells with PBS, the old media were replaced with fresh media. Cell lines were treated with 10 ng/ml concentrations of PTX and HA-PTX NPs for 24 h and the morphological characteristics were observed.

Flow cytometric analysis: FITC Annexin V in combination with propodiumiodidie (PI) staining were used for quantitative determination of cells undergoing apoptosis and necrosis. The A549 cells was grown in 25 cm3 and 75 cm3 culture flasks separately, incubated at 37°C in 5% CO2. Apoptosis and necrosis study was done by using FITC AnnexinV Apoptosis Detection kit US as per manufacturer protocol. Cells were individually treated for 24 hwith 10 ng/ml of free PTX and HA-PTX NPs, and then stained with annexin V and PI, and analyzed by flow cytometry (BD FACSAria). The untreated stain and unstained cells were used as a control group. The live cells are annexin V and propidium iodide negative (V-/PI-); the cells undergoing apoptosis are annexin V positive and propidium iodide negative (V+/ PI-); the cells undergoing late apoptosis or necrosis are both annexin V and propidium iodide positive (V+/PI+); and the dead cells are annexin V negative and propidium iodide positive (V-/PI+). The apoptotic program is characterized by morphological features including loss of plasma membrane asymmetry, condensation of cytoplasm and nucleus with DNA fragmentation. When apoptosis happened in the cells, the membrane phospholipid phosphatidylserine (PS) translocate from inside to outside. As a result of its translocation, annexin V which is a flourochrome conjugates and binds to PS due to high binding affinity. However, the dead and necrotic cells are permeable to PI.

PTX encapsulation and release

Encapsulation efficiency: The amount of entrapped PTX in HAPTX NPs was detected in triplicate by UV/Visible Spectrophotometer. Four mg of HA-PTX NPs were dispersed in 1 ml of Phosphate Buffer Saline (PBS) solution. One ml of hyaluronidase (1 mg/ml in PBS) was used to digest the HA-PTX NPs in a shaker incubator at 37°C. After about 1.5 h incubation, extraction was done with ethyl acetate, which was further dried under nitrogen blanket and then reconstituted in 200 μL PBS. The encapsulation efficiency (EE) of PTX in HA-PTX NPs was calculated as follows [23]:


image        (3)

PTX release: To test the release characteristics of the PTX from HA-PTX NPs, dialysis method was used. [23]. Twenty mg of the HAPTX NPs was resuspended in 5 mL of PBS (pH 7.4) and transferred to a dialysis tube (MWCO of 2 g/mol). The dialysis tube was placed in a 200 mL bottle with 95 mL of PBS. PTX release was studied at 100 rpm at 37°C. Two ml of the sample solution was taken and the solution was supplemented with 2 ml of fresh PBS after 2 hr intervals. The amount of PTX released was further evaluated by UV spectrophotometry at 310 nm wavelength.

Modeling: To study the release kinetics data of PTX from HA-PTX NPs, data was fitted into five kinetics and mechanistic models. The rate constants and regression coefficients, R2, were determined.

The zero-order kinetics was evaluated as follows:

Co - Ct = Kot        (4)

Rearrangement of equation (3) gives:

Ct = Co + Kot        (5)

Where Ct is the amount of drug (mg L-1) dissolved in time t(hr), Co is the initial amount of drug (mg L-1) in the solution (Co=0) and Ko is the zero order release constant (h-1).

The first-order kinetics was developed based on Eq. (5):

dC/dt = -KC        (6)

where dC/dt is the rate of change in concentration with respect to time (mg L-1h-1), and K is the first order rate constant (h-1). Integrated form of equation (3) can be expressed as:

log C = log Co -Kt/2.303        (7)

where Co is the initial concentration of drug (mg L-1). The data obtained are plotted as log cumulative percentage of drug remaining versus time to yield a straight line with a slope of K t/2.303.

The Higuchi model is proposed as follows:

J = - D (∂Ø ⁄ ∂x)        (8)

Where J is diffusion flux (mol/m2. s); D is diffusion coefficient (m2/s); Ø is concentration (mol/m3); x = length (m); and

image (9)

where Q is the amount of drug released in time t (hr) per unit area A of matrix (mg/cm2), C is the drug initial concentration (mg L-1) and D is the diffusivity of the drug molecules (diffusion coefficient) in the matrix (cm2 hr-1),

Q = KH × t1/2        (10)

Where D is the diffusion coefficient of the drug molecule in the solvent, δ is the porosity of the matrix, τ is the tortuosity of the matrix and Q, A, C and t have the meaning as assigned above, and KH is Higuchi dissolution constant (h-1/2).

The Hixson-Crowell model is given as follows:


The Korsmeyer-Peppas model is described as:

Mt/M∞ = Ktn        (12)

log Mt /M∞= log KKP+n log t        (13)

where Mt /M∞ is the fraction of drug released at time t (hr), KKP is the release rate constant unit (h-n) and n is the release exponent.

Statistical analysis

All determinations were expressed as means ± standard error (SE). All the IC50 values of Pt, HA-Pt, PTX and HA-PTX on the breast (MCF- 7), lung (A549) and colorectal (HT-29) cancer cell lines were analyzed using one-way analysis of variance (ANOVA), Tukey HSD, LSD Test, p<0.05 and p<0.01) (SPSS version 15.0). A probability of p<0.05 was considered significant, and p<0.01 considered as very significant.

Results and Discussion

Synthesis and characterization of PTX-entrapped HA NPs

HA-PTX NPs were successfully synthesized by desolvation method with glutaryldehyde (GA) crosslinking of HA, which appeared as fine white powder, whilst void HA NPs were coarser. The desolvation method offers the advantage of producing NPs directly in aqueous suspension. It does not require heat treatment and may be useful for biopolymers and heat sensitive drug formulations [18]. Although both ethanol and acetone can be used as desolvating agent in the preparation of NPs [24-26], acetone was used in this study. Ethanol could inhibit GA crosslinking of HA as shown by a study on protein crosslinking by GA where the crosslinking is formed between the two polyol molecules [27]. GA has two aldehyde groups and ethanol produces acetals with aldehydes. There is a high probability of the free hydroxyl groups on HA to be in competition with hydroxyl groups of ethanol for reaction with GA, thus reducing the cross-linked HA [26].

Figure 1a and 1b shows the morphology of freeze dried HA-PTX NPs as observed by FESEM and TEM. HA-PTX was shown to have distinct spherical shape with moderate uniformity with sizes in ranges of 100-250 nm. The nanosizes make the NPs easily move into leaky vessels of tumor tissue to target the tumor cells. Figure 2 shows the IR spectrum of void HA NPs and HA-PTX NPs. Peaks at 3400–3600 cm-1 in both are attributed to OH and NH group stretching vibrations and residual moisture content. CH2 peaks show asymmetric and symmetric stretching vibrations at 2870-2955 cm-1 and the peaks between 1990 to 2183 cm-1 are due to C-N bonding. The peaks at 1638 and 1639 cm-1 are attributable to N-H bending vibrations of secondary amide, usually in the range of 1550 to 1640 cm-1 [28]. The peaks at 844 to 846 cm-1 are due to C-H bonding and 507 to 534 cm-1 to C-H and C-X (halogen) bonding. The characteristic peak of PTX at 1736 cm-1 can be observed in HA-PTX NPs spectra but not in void HA [29]. The band due to CH2 scissoring at 1463 cm-1 and the sharp peak at 996 cm-1 may be due to interactions between PTX and HA cross-linked molecule, which are completely absent in void HA NPs. Figure 3a and 3b shows the X-ray diffractograms of void HA and HA-PTX NPs. The void cross-linked HA showed its own intrinsic crystal peaks butthe increased intensity of sharp peaks in HA-PTX diffractograms suggest the crystalline nature of PTX. XRD diffractograms may show typical and more specific peaks of drug crystal, with relatively fewer peaks for void NPs. Our results correlate well with previous study on HA-PLGA encapsulating doxorubicin [30].


Figure 1a: FESEM image of HA-PTX NPs at 10000 magnifications.


Figure 1b: TEM image of HA-PTX NPs.


Figure 2: FTIR spectrum of void HA NPs (grey) and HA-PTX NPs (black).


Figure 3a: X-ray diffractogram of void HA NPs.


Figure 3b: X-ray diffractogram of HA-PTX NPs.

Cytotoxicity of drug-loaded NPs

Figure 4a-4c shows the cytotoxic effects of HA-PTX and PTX on cancer cell lines. The IC50 of HA-PTX NPs after 48 h for lung (A549) (0.3 μg/ml ± 0.012), breast (MCF-7) (0.2 μg/ml ± 0.015) and colorectal (HT- 29) (0.3 μg/ml ± 0.016) suggest 2-3 fold higher cytotoxicity than free PTX. Cytotoxicity of PTX on A549 cells (IC50=0.7 μg/ml ±0.012) and the MCF-7 cells (IC50=0.6 μg/ml ±0.015) was comparable to previous reports [31,32]. At low PTX (0.01-0.1 μg/ml) after 48 h, significant reduction in cell viability was observed in all the three cell lines, but lower change was observed at higher concentration (1-10 μg/ml). Time dependant changes were observed in A549 and MCF-7, but not so clear in HT-29 cell lines. At 1 μg/ml, there were less than 50% cell viability in A549 and MCF-7, but more than 50% cell viability was observed in HT-29 cell line.


Figure 4a: Cytotoxic effects of PTX and HA-PTX on A549.


Figure 4b: Cytotoxic effects of PTX and HA-PTX on MCF-7.


Figure 4c: Cytotoxic effects of PTX and HA-PTX on HT-29 cancer celllines, after 48 h.

Table 1 shows the summary of IC50 values of Pt, HA-Pt, PTX and HA-PTX on the three cancer cell lines. PTX was more sensitive towards breast and colorectal cancer cells, while Pt showed dose dependant cytotoxicity in all cancer cell lines. However, the IC50 values of PTX at all times were lower than Pt. The IC50 of Pt on lung cells in our study corresponds well with the previously reported value (IC50=2 μg/ml), the IC50 of 5 μg/ml ± 0.034 in MCF-7 agrees with previous report (13μM=4 μg/ml); and the IC50 of 8 μg/ml ± 0.038 in HT-29 is close to reported 20 μM (6 μg/ml) [33-35]. The difference in dosage and efficacy could have been a result of mode of action of the drug molecule on specific cancer cells. Pt is a metal based drug for cancer treatment via direct interaction with cell genetic material. The chlorine atom in the Pt molecule is easily replaced by a hydroxyl (OH-) group and it binds with a protein on one side and the DNA molecule on the other [36]. Any unstablility in the structure of Pt may result in drug decreased cytotoxicity or drug resistance. The high IC50 values in some cell-lines such as MCF-7 and HT-29 with Pt may suggest drug resistance which may lead to various associated side effects including renal toxicity, nausea and vomiting in clinical trials. HA-Pt NPs formed through anionic polymer–metal complexation between Pt and HA, showed not only lower cytotoxicity than HA-PTX, but also no significant difference between Pt and HAPt cytotoxicity in vitro. HA-Pt therefore maintained its cytotoxicity in conjugate form, although HA void NPs did not show any cytotoxic effects up to concentration as high as 10 mg/ml. The non-cytotoxic nature of HA could therefore still possibly reduce the systemic cytotoxicity and enhance the accumulation of cisplatin towards the site of tumor via HA-CD44 receptor-ligand uptake mechanism [7].

Morphological characterization

The morphological observation of lung (A549) cancer cell lines was studied under light microscope and flow cytometry at 10 ng/ml of HAPTX NPs and PTX treatment for 24 hours (Figures 5 and 6). Two major cell characteristics of cell death were evaluated – apoptotic cell death which is a physiological or programmed cell death, and necrotic cell death which is an accidental cell death.The control (untreated) cells were larger, rounded and appeared to be healthy with no apoptotics bodies or necrotic cells. After 24 h, cells exhibited condensation with apoptotic bodies (shown by the arrow), which were more profound with HA-PTX treatment than free PTX. The cells were round or oval in shape, smaller in size than the cell of origin. A549 cells showed characteristic changes of apoptotic cell death with nucleus becoming phase-dense, due to condensation of nuclear chromatin, and membrane blebbing, resulting in condensed rounded cells, and fragmentation, which resemble previous studies [37,38]. Flow cytometric analysis (Figure 6) suggests thatapoptosis (V+/PI–) was higher after treatment with HA-PTX NPs as compared to free PTX, but high PI+ (necrosis) was observed after treatment with PTX as compared to HA-PTX NPs. The PTX-induced apoptosis correlate well with previous studies [39,40] and this may be triggered through different mechanisms depending on cell cycle stage. PTX induces necrosis by disrupting the plasma membrane integrity of mitotic cells, where the treated cells release significant amount of Lactate dehydrogenase (LDH) and some growth-inhibitory substances into the supernatant [39]. The annexin V-/PI+ double staining assay reveals early necrotic cells among the mitotic cells. Low concentration of PTX may cause apoptosis without the appearance of mitotic arrest. PTX is a powerful antimitotic agent which promotes stabilization of tubulin polymerization and consequently cell cycle arrest at the G2/M phase, resulting in inhibition of mitosis and apoptotic cell death. PTX binds selectively and reversibly to the β subunit of tubulin, to promote tubulin polymerization and formation of stable microtubules even in the absence of GTP. This leads to disruption of the equilibrium between the tubulin dimer-polymer in favour of polymer assembly [41].


Figure 5a: Morphology of lung cancer cell line (A549) for Control.


Figure 5b and c: Morphology of lung cancer cell line (A549) for PTX treated HA-PTX treated at 10 ng/ml after 24 h.


Figure 6: Flow cytometric analysis of lung cancer cell line (A549) for a) PTX-treated and b) HA-PTX treated at 10 ng/ml after 24 h.

PTX release kinetics and modeling

The PTX entrapment efficiency as calculated by equations (2) and (3) was 84% which was similar to the reported PTX-loaded chitosan microspheres at 84% [29], but higher than HA-Pt conjugation of 73% [42], and HA-Pt NPs of 81% [43]. To assess the potential of HA NPs as a control drug carrier of PTX, the release behaviour of 1% PTX from HA NPs was assessed at 37°C ± 1 in PBS (pH 7.4) using dialysis method. As shown in Figure 7, the PTX release from the NPs involves two phases an initial burst phase for the first 12 h, with about 60-70% drug release, followed by a continuous release phase until 48 hrs. Initial phase could be due to those PTX located on or near the surface of NPs; while the second slow and uniform release could be caused by the drugs from inside the NPs. The release kinetics may follow 3 stages: (i) penetration of the dissolution medium into NPs; (ii) swelling of hydrophilic polymer resulting in the dissolution or erosion of the matrix; and (iii) release of the drug to the surrounding dissolution medium [44]. In our study, the GA cross-linking may have provided controlled release, instead of complete release, as the dissolution of HA may have been slower. Apart from the material construct, the chemical characteristics of drug and drug dosage also affect the release kinetics. The target site in the body and the possible use of pH or temperature to trigger the drug release are all important considerations to be optimized.


Figure 7: Release kinetics of 1% (w/w) PTX from HA NPs.

Kinetics study of drug release in vitro will be useful to explain the release behavior of drug from NPs. As diffusion and dissolution are two meaningful influencing factors, the release kinetics can be correlated to bioavailability. Zero order kinetics suggests that the release rate is independent of the concentration of dissolved drug, while first order kinetics describes a concentration-dependant release of drug. As shown in Table 2, with zero-order release kinetic constant for initial burst, Ko=5.726 (R2=0.985) and the overall release Ko=1.719 (R2=0.661), PTX release may be independent of concentration during early release. The overall release however cannot be fully explained by zero-order kinetics. This is different from repaglinide released from PNPs, which shows zero-order release constant, Ko=0.885 (R2=0.968), and ibuprofen release from hydroxypropyl methylcellulose which exhibits zero order constant value Ko=4.004 (R2=0.967), suggesting that both drugs are released independently of drug concentration [45,46]. The PTX released from HA-PTX NPs is better described by First-order kinetics as shown in Figure 8a and 8b with the release kinetics of initial burst, K=0.107 (R2=0.999), and the overall release, K=0.127 (R2=0.963). The overall PTX release is therefore concentration dependant, and the initial release kinetics corresponds well with ibuprofen release from hydroxypropyl methylcellulose with K=0.1414 (R2=0.993).


Figure 8a: Release kinetics modeling of PTX from HA NPs based on first order kinetics for 60-70%.

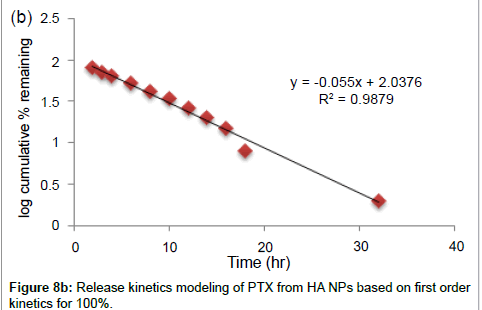

Figure 8b: Release kinetics modeling of PTX from HA NPs based on first order kinetics for 100%.

Higuchi model describes the release of drug from matrix as a square root of time dependant process based on Fickian diffusion. Hixson- Crowell model proposes drug release from a system where there is a change in surface area and diameter of particles or tablets. The diffusion mechanism is incorporated in Korsmeyer-Peppas model where KKP is the kinetic constant and slope n is an exponent characterizing the diffusional mechanism. The value of n =0.45 suggests a Fickian release (case I); between 0.45 < n < 0.89 for non-Fickian diffusion anomalous release; and = 0.89 for case II (zero order) release. Case II transport generally refers to the dissolution of the polymeric matrix due to the relaxation of the polymer chain, and the anomalous transport (non- Fickian) refers to the summation of both diffusion and dissolution of a controlled drug release [44].

The overall release of drug is best explained by Higuchi (R2 = 0.998) and Korsmeyer-Peppas (R2= 0.996) models as shown in Figures 8c and 8d. The released data fitted to Higuchi’s Model with KH = 24.87 (R2 = 0.998) agrees well with the release of ibuprofen from hydroxypropyl methylcellulose with KH = 17.569 (R2= 0.999) and aceclofenac from hydroxypropyl methylcellulose with KH = 21.73 (R2 = 0.99) [46,47]. The first initial drug release mechanism fitted to Korsmeyer-Peppas model with KKP= 12.336 and n = 0.7439 indicates that the non-Fickian diffusion is predominant having anomalous transport including both diffusion and dissolution of controlled drug release. Previous studies with repaglinide have reported n = 0. 485 suggesting that the release rate is diffusion and erosion control mechanism, but with lower R2= 0.969 [45]. The reported value of n = 0.2465 is not considered within the limit of Korsmeyer-Peppas model due to complex phenomena (swelling, diffusion and erosion) even with high R2= 0.994, but diffusion with erosion could be the mechanism for the drug release from methylocellulose based matrix tablet [46]. Based on Hixson-Crowell model (data not shown), the KHC = -0.1076 (R2 = 0.956) was better fitted than the aceclofenac released from Hydroxypropyl methylcellulose with KHC = -0.134 (R2 = 0.61) [47]. The low IC50 of HA-PTX as discussed earlier clearly supports the suggestion on successful controlled-release, concentration dependent, diffusion mechanism as proposed by first order kinetics, Higuchi and Korsmeyer-Peppas models.


Figure 8c: Release kinetics modeling of PTX from HA NPs based on first order kinetics for Higuchi Model.


Figure 8d: Release kinetics modeling of PTX from HA NPs based on first order kinetics for Korsmeyer-Peppas Models.


PTX entrapped HA NPs were successfully synthesized and developed. The cross-linked HA polymers with entrapped PTX was confirmed by FTIR analysis with the PTX characteristic peaks observed at 1736 cm-1. HA polymer maintained the crystalline nature of PTX molecules as suggested by XRD. PTX and HA-PTX were more sensitive than cisplatin especially towards breast and lung colorectal cancer cells with HA-PTX showing 2-3 fold more cytotoxic effects than PTX, while HA-Pt had similar cytotoxic effects with cisplatin. PTX induced the morphological changes in A549 cell lines whereFlow Cytometric Analysis showed that PTX induced apoptosis, whilst HA-PTX enhanced the cytotoxicity with increased apoptosis. PTX was released from the HA-PTX NPs in a biphasic manner, where initial drug release data was best fitted to First-order kinetics model, suggesting that the drug release is concentration dependant. The overall PTX drug release kinetics was best described by Higuchi and Korsmeyer-Peppas models where diffusion and dissolution are predominant mechanisms with n value of 0.7439 indicating that the drug transport follows anomalous or non- Fickian diffusion.
