Research Article - (2014) Volume 3, Issue 3
Number of potential candidate genes (CGs) has been identified by transcriptome and transgenic approaches involved in the adaptive responses to drought in cereals. One of these genes conferring tolerance to drought is DREB gene family. The exploration of genetic/allelic variation within the DREB gene family is an important prerequisite towards a better understanding of stress tolerance. The present investigation aims to study allelic variation in nucleotide sequence within DREB gene of different rice cultivars need for crop improvement programme. Ten upland as well as lowland rice cultivars was used for molecular characterization and allele mining. The results showed that the DREB gene was found in all the tested germplasm and submitted to NCBI GenBank (accession numbers KF 545561 to KF 545569). Bioinformatics analysis showed that 100 percent identity with AP2 DNA binding domain of 59 amino acids which showed conserved three sheets with 14th valine and 19th glutamic acid conserved residues. AP2 domain of putative DREB protein were found rich in alanine (17.6%) and arginine (15.7%) amino acids with a predicted molecular mass of 5.89 kDa and iso-elecric point (pI) 10.38. It is observed that DREB gene nucleotide sequences were verified with DNA polymorphism analysis, out of which 196 invariable (monomorphic) and 8 variable (polymorphic) i.e. segregating sites were identified including 9 number of mutation and 5 haplotypes. The haplotypes (gene) diversity was 0.756; the variance and standard deviation diversity were 0.01678 and 0.130 respectively. The result showed that the variety ‘Khandagiri’ showed 97.5% similarity with all accessions DREB gene of rice and 0.036% evolutionary divergence with AK121956 accession present in the database. This might have enhanced the capability of DREB gene as a transcription factor and that lead to provide better adoption and tolerance capability of the cultivar during drought.
Keywords: Rice, DREB Transcription factor, Computational Sequence data analysis, AP2 domain
Rice (Oryza sativa L.) is the second most important staple food for the largest part of the world. It belongs to family graminae (Poaceae) and a model system for cereal biology with the smallest genome consisting of 430 Mb across 12 chromosomes. Abiotic stress like drought and salinity are the most limiting factor of crop productivity and it is estimated to be more than 50% decline in the average yields of major crops worldwide . However, drought tolerance is a genetically complex trait that involves multiple genes . Abiotic stresses solely associated with physiological and developmental changes in plants, which are due to changes in plant genes expression . There are some transcription factor(s) that regulate the expression of several genes related to stress. DREB (Dehydration responsive element binding factor) play key roles in plant stress signalling transduction pathway, they can specifically bind to DRE/CRT element (G/ACCGAC) and activate the expression of many stress inducible genes. Each DREB protein contains a basic N-terminal region that might function as a nuclear localization signal and acidic C-terminal region that might act as an activator domain for transcription. DREB genes family has been grouped into DREB l/ CBF and DREB2. DREB1 includes 3 novel genes viz., DREB1A (CBF3), DREB1B (CBF1), DREB1C (CBF2) and DREB1D (CBF4) . Five DREB homologs were identified in rice which includes Os DREB1A, Os DREB1B, OsDREB1C, OsDREB1D and OsDREB2A . Analysis of the genomic sequences related to rice ERF and DREB gene families are useful in identification of new DREB genes that could play a major role in drought tolerance and their phylogenetic analyses . The present study indicates the isolation and characterization of DREB gene present in indica rice varieties which are linked to drought tolerance.
Ten promising upland as well as lowland cultivars of rice (Oryza sativa L.) viz. ‘SwarnaSub-1’, ‘Udaygiri’, ‘Lalat’, ‘Bandana’, ‘RGL’, ‘Jagannath’, ‘Daya’, ‘Pary’, ‘Mahalaxmi’, and ‘Khandagiri were selected for the present study and were collected from the Rice Research Station, OUAT, Bhubaneswar and Central Rice Research Institute (CRRI), Cuttack.
Nucleotide sequences of DREB gene family were retrieved from Genbank (http://www.ncbi.nlm.nih.gov/Genbank) database of NCBI and used for primer designing. Overlapping oligos of DREB gene sequences were designed using Primer3 tool (http://primer3. wi.mit.edu/ (Table 1) The predicted primers were subjected to check for various properties namely hairpin loops, primer dimer, Tm (temperature), GC% by using Premier Biosoft’s Net Primer tool (http:// www.premierbiosoft.com/netprimer/index.html). The specificity of both forward and reverse primers as well as product size was checked using primer Blast program of NCBI database (http://blast.ncbi.nlm. nih.gov/Blast.cgi) against our retrieved sequence.
|Accession Number||Gene||SequenceType||Sequence length in base pairs (bp)|
Table 1: Nucleotide sequence information of DREB gene family of Rice (Oryza
sativa) retrieved from NCBI.
DNA extraction and PCR analysis
The genomic DNA of ten rice cultivars were extracted using modified CTAB method  and purified DNA of each cultivars were subjected for PCR amplification using genespecific left 5’–CCTCATTGGGTCAGGAAGAA-3’ and right 5‘-GGATCTCAGCCACCCACTTA-3’primers (Merck Bioscience, India.). PCR amplification was carried out with the template DNA 25- 50 ng, 2.5 μl 10X PCR assay buffer (Merck Bioscience, India), 1.5 μl each of 10 mM dNTPs (M/S Merck Bioscience, India), 1 μl of 5 μM forward primer, 1 μl of 5μM primer and 1μl of 1U high fidelity Pfu DNA polymerase (Merck Bioscience). M/s Peqlab, 96 universal gradient thermal cycler was used for the PCR amplification consisted of a total of 35 cycles of initial denaturation (94°C for 5 min) followed by denaturation (94°C for 1 min), annealing (59°C for 2 min), elongation (72°C for 2 min) and final elongation (72°C for 10 min). The 1X Trisacetate- ethylenediamine–tetra acetic acid (TAE) buffer was used to electrophoreses PCR amplified products in 2.5% (w/v) agarose gel (Merck Bioscience, India) along with 100 bp DNA ladder (Himedia Laboratories Pvt. Ltd., Mumbai, India). The gel image was documented using gel documentation system (UVITECH, Cambridge, UK).
PCR product purification and sequencing
The single bright amplicon of approximately 0.24 Kbp were eluted and purified from each ten samples using small DNA fragments extraction Kit (Gene Aid) following the published protocol . The PCR amplified fragments of ~0.24 Kbp were sequenced with 96 capillary high throughput sequencer; ABI 3730 XL genetic analyserfollowing modified Sanger’s dideoxy method  at Xcelris Genomics Ltd., Ahmedabad, India.
Nucleotide sequence data analysis
After sequencing all ten sequenced amplicons of different cultivars were subjected for Multiple Sequence Alignment (MSA) using ClustalW program at the EBI ClustalW server () and muscle (www. ebi. ac.uk/Tools/msa/muscle . MEGA (Molecular Evolutionary genetic analysis 5.5) tool was used for phylogenetic tree construction for three different groups i.e. ‘Khandagiri’ with other nine cultivars, ‘Khandagiri’ with other rice cultivars and ‘Khandagiri’ with other crop plants (http://www.megasoftware.net) . The third datasets were constructed by searching the homologus of ‘Khandagiri’. DnaSP (DNA sequence polymorphism, version 5.10; http://www.ub.es/dnasp)  was used DNA polymorphism, InDel (insertion/deletion) polymorphism, nucleotide diversity, polymorphic sites etc.
Computational protein analysis
These ten sequenced of DREB gene were verified at protein level by using Blast-x (http://blast.ncbi.nlm.nih.gov/blast.cgi) programme from NCBI and Expasy (http://web.expasy.org/cgi-bin/translate/dna_aa) server. General features such as molecular weight, iso-electric point (pI), amino acid composition etc. of the predicted protein were assessed by using the ProtParam tool (http://expasy.org/cgi-bin/protparam).The consensus sequences from Blast-x for analysis and characterization of DREB gene in Plant TFDB (Transcription Factor Database, version 3.0) (http://planttfdb.cbi.pku.edu.cn/) for AP2 domain in rice.The structure prediction of AP2/ERF domain was done by using the Phyre2 () and model validations of the predicted structure was done by using Structural Analysis and Verification Server ().

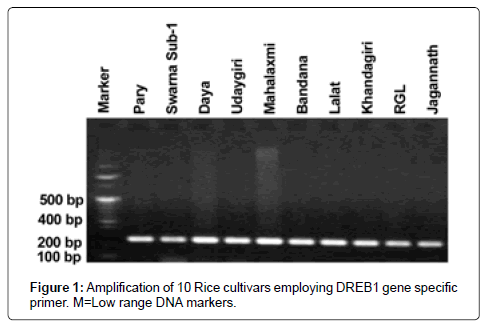

Out of nine primer pairs, three having 18 bp to 20 bp, 55 to 60% GC content, Tm value ranged from 59 to 62oC showed PCR amplification (Table 2). The primer specificity was checked for both forward and reverse primer by primer blast program which has shown significant alignment with DREB1 gene. The DREB1 gene fragment (0.24 Kbs) isolated from template DNA of different rice cultivars were amplified and presented in Figure 1. The 10 eluted fragments of rice cultivars were sequenced having 193 bp to 215 bp long nucleotides. On the basis of computational genomic analysis, the conserved region was identified in all the varieties (Figure 2) and found very little changes in the conserved region (Table 3). All the ten nucleotide sequences were used further for DNA polymorphism analysis in which 188 invariable (monomorphic) and 2 variable (polymorphic) sites were identified including total two number of mutation and three haplotypes. The haplotypes (gene) diversity was 0.51; the variance and standard deviation of haplotypes diversity were determined 0.027 and 0.164 respectively. On the basis of mismatch distribution and segregating sites, the frequency spectrum was predicted through graphical in which an average number of pair wise differences for observed value was estimated at 0.556 (Figure 3A and B). However, the variance and Coefficient of variance (CV) for observed value were 0.3434 and 1.0812 respectively as compared to expected value 0.244 and 0.8863.
|Sl.No.||Primer||Length (bp)||Tm(°C)||Ta(°C)||GC (%)||Sequence(5’?3’)||Position of amplicon (nt)|
|1||Left primer||20||60.04||59.00||50.00||5‘CCTCATTGGGTCAGGAAGAA 3’||94||113|
|Right primer||20||60.07||59.00||55.00||5‘GGATCTCAGCCACCCACTTA 3’||334||315|
|2||Left primer||20||59.03||59.00||55.00||5‘GACCAAGTTCAGGGAGACGA 3’||120||139|
|Right primer||20||59.83||59.00||55.00||5‘CAAGCTCGCGTAGTACAGGT 3’||627||608|
|3||Left primer||20||59.55||59.00||55.00||5‘GGATCAAGCAGGAGATGAGC 3’||08||27|
|Right primer||20||59.83||59.00||55.00||5‘AAGCTCGCGTAGTACAGGTC 3’||626||607|
Table 2: List of primers (forward and reverse) predicted by Primer-Blast.
|Position of Nucleotide InDel/substitution|
Table 3: Nucleotide changes due to insertion/deletion (InDel)/ substitution in DNA binding region of AP2 domain according to position.
The percent of similarity and evolutionary distance matrixes were generated from ten nucleotide sequences in the dataset by Clustal 2.1 in muscle tool and MEGA 5.5 (Table 4). The result showed that the variety ‘Daya’ showed 100% similarity with ‘Udaygiri’, ‘Mahalaxmi’, ‘Bandana’, ‘Lalat’ and ‘Khandagiri’ whereas ‘Pary’, ‘RGL’ and ‘Jagannath’ showed diversity ranges from 0.0053 to 0.011. Phylogenetic tree was construced along with control by using maximum parsimony method with bootstrap test in MEGA 5.5. There were three distinct clusters were formed in which the variety ‘Khandagiri’ and ‘Daya’ placed in separate cluster whereas another 8 varieties along with control were placed lie in third cluster (Figure 1A). The sequence information for DREB alleles have been deposited in the NCBI nucleotide database with accession numbers KF545561, KF545562, KF545563, KF545564, KF545565, KF545566, KF545567, KF545568 and KF545569.
Table 4: Percent Similarity and Diversity Matrix of sequenced rice cultivars.
DREB 1 gene sequence information of ‘Khandagiri’ was further analysed with the information available in NCBI database showed that a single nucleotide ‘T’ was substituted by ‘A’ (Figure 4). All DREB gene nucleotide sequences were further verified with DNA polymorphism analysis, out of which 196 invariable (monomorphic) and 8 variable (polymorphic) i.e segregating sites were identified including 9 number of mutation and 5 haplotypes. The haplotypes (gene) diversity was 0.756; the variance and standard deviation diversity were 0.01678 and 0.130 respectively. The percent of similarity and evolutionary distance matrixes were generated from second dataset by using the variety ‘Khandagiri’ with other possible DREB gene nucleotides of rice by Clustal 2.1 in muscle tool and MEGA 5.5 (Table 5). The result showed that the variety ‘Khandagiri’ showed 97.5% similarity with all accessions DREB gene of rice and 0.036% evolutionary divergence with AK121956 accession present in the database. It was further noted that there were three distinct clusters and the variety ‘Khandagiri’ placed in separate clustal but rest of the accesions represents two different phylogeny with bootstrap value (Figure 1B).
Table 5: Per cent Similarity and Diversity Matrix of ‘Khandagiri’ with DREB rice accessions.
On the basis of comparison with other monocotyledons, dicotyledons and model plants available in NCBI database revealed that the conserved nucleotide sequences were changed the position as indicated in Figure 5. ‘A’ at position number 699, consecutively at 755 and 756. ‘T’ at position number 722, 732, 746, 758, 762, and 771. Likewise, ‘G’ at position number 728, 731 and 759 (Table 6). The results indicate that ‘C’ nucleotide was not conserved in DREB gene sequences. All the DREB gene nucleotide sequences were further analysed with DNA polymorphism, in which 13 invariable (monomorphic) and 57 variable (polymorphic) (i.e segregating sites) were identified having 94 number of mutation and 12 haplotypes. The haplotypes (gene) diversity was 1.00 and the variance, standard deviation of haplotypes diversity was 0.00116 and 0.034. On the basis of constant population size, the mismatch distribution and frequency spectrum was determined through DnaSP (Figure 3C-F), in which an average pair wise differences was 25.625. The variance and coefficient of variance were 122.5382 and 0.4405 respectively as observe value. However, the expected value of variance and coefficient of variance (no recombination) were 146.912 and 0.4725. On the basis of multiple sequence alignment for DREB1 gene using Neighbour joining method with 1000 replications in Bootstrap test in MEGA 5.5, the variety ‘Khandagiri’ was grouped with Oryza sativa indica group with bootstrap value 62 and Arabidopsis thaliana, Nicotiana tabacum with maximum bootsrtap value 90 (Figure 1A-C). The monocotyledon like Zea mays was more similar with Arabidopsis thaliana and other dicotyledons having bootsrap value 86.
|Accession number||Conserved consensus nucleotide positions in DREB gene|
Table 6: Conserved consensus nucleotide positions in DREB gene family.
The computational analysis showed that the amino acid sequence of DREB1 of varity Khandagiri (Figure 6) showed 100 percent similarity with rice germplasm DREB amino acid sequence of AP2 (apetala) domain available in the NCBI database with maximum score 122 and lowest E- value of 2e-33 (Table 7). All 68 amino acids present in ten tested varities of indica rice were further characterized through plant transcription factor database (http://planttfdb.cbi.pku.edu.cn/) for confirmation. The results revealed that out of 68 amino acids,59 amino acids were conserved to DNA binding region of AP2 domain. The amino acid sequences for AP2 domain were retrieved from NCBI database based on homology and used for multiple sequence alignment along with AP2/ERF domain available in variety ‘Khandagiri’. There was very negligible differences with regard to DREB protein in conserved region of aminoacid sequences (Figure 7). The conserved consensus sequence of AP2 DNA binding domain of variety ‘Khandagiri’ was further used for computational biochemical anlysis which signifies the molecular weight of 5.89 kDa. with therotical isoelectric point (pI) 10.38. Among 22 essential amino acids, AP2 domain comprises maximum percentage of alanine (A) and arginine (R) with 17.6% and 15.7% respectively. Through computational observation, about 819 of atoms were encompasses in AP2 domain protein with their atomic composition and formula C264H401N83O70S1 including total number of negatively charged (Asp + Glu) and positively charged (Arg + Lys) residues 5 and 9 respectively. The computed instability index was 34.21 which indicate the stability of AP2 domain of DREB 1 protein. It was observed that though there were differences at the sequence level but structurely they were similar in all other crops. The results revealed that there was three strand anti-parallel β-sheets towards N- terminal region and α-helix towards C-terminal end of the AP2 domain (Figure 8) with the conserved position of 14 th and 19 th valine and glutamic acid residues. The results showed that 89.1% of amino acid with 41residues were present in most favoured region of variety ‘Khandagiri’ whereas 10.9% of amino acid with 5 residues in additional allowed region (Figure 9).
|Sl.||Accession number||Size of Amino acid||Amino acid sequences obtained by BLASTx tool||Per cent homology||E-value||Score|
|1||CBH19549.1||154||AP2 domain containing protein (O. sativaindica group)||100||2.00E-33||122|
|2||CBH19547.1||168||AP2 domain containing protein (O. sativaindica group)||100||2.00E-33||122|
|3||A2WL19.2||274||Dehydration-responsive element binding protein 2A short-protein DREB2A||100||2.00E-33||122|
|4||NP001042107.1||274||[OS01g0165600] O. sativa japonica group||100||2.00E-33||122|
|5||ADT9548.1||281||DREB like protein O. sativaindica group||100||2.00E-33||122|
|6||CBH19548.1||204||AP2 domain containing protein (O. sativaindica group)||100||2.00E-33||122|
|8||CBH19567.1||236||AP2 domain containing protein (O. sativaindica group)||100||2.00E-33||122|
Table 7: Amino acid homology of DREB1 by using BLASTX tool.
Crop production is seriously affected by both biotic and abiotic stresses. Abiotic stresses such as drought lead to physiological and developmental changes in plant genes expression beginning with stress perception, which initiates a signal transduction pathway and is manifested in changes at the cellular, physiological and developmental levels . Numbers of genes and their products respond to these stresses at transcriptional and translational level [12,13]. The present study indicates that a group of genes that regulate the gene expression and signal transduction during drought stress. These include transcription factors like CBF/DRE-binding protein or CBF/DREB [14,15].
In the present study, 241 base pairs long amplicon fragment was isolated from ten indica rice varieties and sequenced by their respective validated allele specific primers predicted by using bioinformatics software. The nucleotide sequences derived from ten varieties were subjected to multiple sequence alignment and the conserved region was identified with minor changes in the conserved region that might be resulted due to substitution, insertion and deletion of nucleotide(s) in the DNA binding region of AP2 domain during evolution process. The nucleotide sequence of variety ‘Khandagiri’ was further subjected to multiple sequence alignment along with rice DREB gene sequences retrieved from NCBI using Muscle tool. Jelview showed that the nucleotide sequences of all DREB genes exhibited the changes at initial sequence region but in rest of the region conserved consensus sequences which probably comprises AP2 domain. The variety ‘Khandagiri’ and cDNA clone: J013106O15 of Oryza sativa japonica Group showed substitution of nucleotide in conserved region in which ‘T’ was substituted by ‘A’ and ‘T’ was substituted by ‘G’. Similar observation was obtained in number of monocotyledon and dicotyledonous crops.
All ten nucleotide sequences derived from indica rice were used for DNA polymorphism analysis in which the nucleotide diversity was 0.00292 with average number of nucleotide differences 0.556. The variance and coefficient of variance for observed value were 0.3434 and 1.0812 respectively.. The polymorphism analysis of DREB gene nucleotide sequences of rice revealed 196 invariable (monomorphic) and 8 variable (polymorphic) i.e segregating sites including total 9 number of mutation and 5 haplotypes. So the nucleotide diversity was estimated 0.01002 with average number of nucleotide differences 0.01002. Similarly, DNA polymorphism was also observed in DREB gene nucleotide sequences of other monocotyledons and dicotyledons which contain total 94 number of mutation and 12 haplotypes. The haplotypes (gene) diversity was found 1.0; the variance and standard deviation of heliotypes diversity were determined 0.00116 and 0.034. Similar results were reported in maize . They reported that ideal polymorphism occur every 309 bp and SNPs occur every 79 bp in randomly selected sequences in the maize inbred B73 relative to inbred Mo17. Nucleotide variation (SNPs/InDels) was reported to underpin R-gene evolution and its function. Presence and absence of polymorphism have reported in 18.8% of total R-genes in Arabidopsis and 22.2% in rice [17,18]. The sequenced based phylogentic tree were constructed which revealed that the three distinct clusters in which ‘Khandagiri’ was found to be most diverged one and placed in the third cluster whereas the cultivar ‘Swarna sub-1’ was placed in the 2nd cluster and rest of the varieties were placed in first cluster. The phylogenetic analysis based on MSA against reported accesions of DREB gene in rice retrieved from database that the variety ‘Khandagiri’ placed in separate cluster but rest of the varieties represents two different phylogeny with high bootstrap value. The phylogenetic tree of variety ‘Khandagiri’ was constructed with other monocotyledon and dicotyledons, it was observed that Gossypium hirsutum was placed separately in a distinct cluster while the variety ‘Khandagiri’ grouped with Oryza sativa indica group with maximum bootstrap value 62. The model plant Arabidopsis thaliana formed a cluster with Nicotiana tabacum showed more similarity with maximum bootsrap value 90. Similar observations were reported by Thakur et al. [19,20]. They reported that phylogentic analysis of all the Pi-ta alleles isolated from Indian land races shared identity with their wild progenotors and cultivated species except Lri_2 and Lri_15.
The nucleotide sequences were further translated to amino acid using BlastX programme (). The amino acid sequence of DREB1 showed 100 per cent similarity with reported rice DREB amino acid sequence of AP2 (apetala) domain of rice with maximum score 122 and lowest E- value of 2e-33. All the 68 amino acids from ten varieties were further investgated in Plant TFDB (http:// planttfdb.cbi.pku.edu.cn/) and it was noted that out of 68 amino acids, 59 amino acids were conserved to DNA binding region of AP2 domain. The result showed that AP2 domain of the sequences have three β-sheets, one α-helix with valine and glutamic acid residues are typical characteristics of AP2/EREBP domain of DREB protein [21-23]. The N-terminal end of AP2/ERF domain of rice has the conserved YRG basic and hydrophilic amino acid residues, essential for DNA binding property of DREB transcription factor. Similarly, towards the carboxylic end of AP2/ERF domain has conserved RAYD amino acid residues which involved in forming C-terminal amphipathic α-helix structure, which was considered as a vital for protein-protein interaction. After the characterization of AP2 domain, it was estimated that valine and glutamic acid in the 14th and 19th positions were conserved. These amino acid residues may play vital roles in recognition of the DNA-binding sequence [22,23], however, further research showed that E19 might not be as important as V14 for the recognition of the DNA-binding sequence . Similarly while the characterization of ZmDREB1A, a homolog of Arabidopsis DREB1 in maize proteins precisely bound to DRE which includes highly conserved Valine at the 14th residue in the ERF/AP2 domain. DNA binding domain of DREB protein was a play a crucial role to determine the specific interaction between this protein and the DRE consensus sequence. This study showed that ZmDREB1A has functional similarity to DREB1/CBFs in Arabidopsis . Similar observation was obtained in cultivar ‘Khandagiri’ in which the AP2 domain of DREB1 putative protein also comprises three β-sheets and one α-helix structure which includes conserved valine and glutamic acid residues on 14thand 19th position respectively.
From the study it was perceived that very minor modification in nucleotide sequence of DREB genes have been taken place during evolution process. The nucleotide sequences of all DREB genes are highly conserved but little insertion or deletion of nucleotide are occurred at the initial region of the sequences. The conserved consensus sequences in all DREB gene except in variety ‘Khandagiri’ in which ‘T’ was substituted by ‘A’ and one deletion mutation for ‘A’ has been occurred in the DNA binding region of AP2 domain of DREB protein. DREB (Dehydration responsive element binding factor) play key roles in plant stress signalling transduction pathway, they can specifically bind to DRE/ CRT element (G/ACCGAC) and activate the expression of many stress inducible genes. The insertion and deletion of nucleotide at the initial region of nucleotide sequence of DREB gene of the ‘Khandagiri’ cultivar might have enhanced the capability of DREB gene as a transcription factor and that lead to provide better adoption and tolerance capability of the cultivar during drought.
The authors wish to acknowledge to Department of Biotechnology, Government of India, New Delhi for providing financial assistance under HRD Post Graduate teaching program.
