Inorganic nanoparticles exhibit physical, chemical and biological properties which attract much interest in a broad spectrum of applications including the field of pharmaceutics and personal care products. Inorganic nanoparticles present a great potential for achieving good antibacterial and antimicrobial activity [1]. Among inorganic antibacterial agents, colloidal silver has been known and employed already by the ancient civilizations and intensively employed to fight infections and control spoilage [2,3]. The main advantage of using colloidal silver is the fact, that microbes are not capable of developing resistance against silver nanoparticles, as they do against conventional antibiotics by developing mutations, since the nanoparticles attack several different targets in microorganisms at once. The antibacterial property of the silver nanoparticles (AgNPs) probably can be related to the release of silver ions from AgNPs, with the evidence of the size dependent in vitro AgNP toxicity, which can be explained by generation of reactive oxygen species, loss of mitochondrial activity or DNA damage [4-7].

Nowadays the increased antibiotic resistance of disease-causing microbes has lead to the renewed interest in silver and its compounds as biocidal agents. They serve as antibacterial components in dental resin composites [8,9], in coatings of medical devices [10-12], surgical prostheses [13], wound dressings [14,15], and in novel advanced biocomposite materials for medical use [16]. Actually, over 430 consumer products are currently reported to be on the market worldwide [17] with the expectable increase of their number in the forthcoming years. Silver nanoparticles are incorporated in some products such as the deodorizing shoe inserts, sports socks, soaps, lotions, nasal sprays and also in household appliances such as washing machines, air conditioners and other technical products.

However, some possible risks associated with the usage of silver containing products were reported such as argyria [18,19], which is a condition characterized by a blue-gray discoloration of the skin and is related to excessive intake of silver. The concerns about the possible toxicity of colloidal silver to aquatic organisms and humans have led to recently issued regulations by the FDA regarding the application of silver. The FDA ruled that over the counter products containing colloidal silver (suspended silver nanoparticles) or silver salts are not generally recognized as safe for human use [20]. Having in mind the issues discussed above, as well as the need for quality control and quality assurance in production of products containing colloidal silver, there is an increasing need for the development of reliable, simple and easy to use analytical methods for the determination of colloidal silver in different products available on the market.

In general, a wide spectrum of measurement techniques such as atomic absorption spectrometry [21], inductively coupled plasma atomic emission spectrometry [22], voltammetry [23], potentiometry [24,25], optical sensors [25,26], and spectrophotometry [27] can be utilized for the determination of silver. Additionally, kinetic methods have been developed, where the silver ion serves as catalyst and is determined based on the rate of catalyzed reactions [28,29]. In the above mentioned cases specific sample pretreatment procedures are often required, including digestion and/or preconcentration step(s). In some cases the disadvantages of the methods include reagents/ ionofores which are not always available on the market, while in some cases the reaction conditions are associated with specific and complicated experimental requirements.

Recently, there is an increasing number of analytical methods devoted to the detection, as well as to determination of the number size distribution of colloidal silver particles. A powerful asymmetric flow field-flow fractionation-inductively coupled plasma mass spectrometric method was elaborated for the analysis of silver nanoparticles in antimicrobial customer products including the derivation of number size distributions the 1-100 nm range in a single measurement. The outputs of the method were confirmed by the centrifugal liquid sedimentation, dynamic light scattering and transmission electron microscopy [30]. An analogous measurement technique was elaborated for determination of AgNPs in chicken meet [31]. Beside the highly sophisticated measurement techniques different electroanalytical measurement protocols based on voltammetry [32-34] and potentiometry [35] are recognized as simple techniques suitable for determination of colloidal silver. Furthermore, the relatively simpler optical detection based techniques can as well serve for the determination and speciation of colloidal and dissolved ionic silver in the drinking water treated by Ag+ or colloidal silver [36]. The colloidal and ionic silver in water samples was determined by colorimetric solid phase extraction which involves the extraction of Ag+ from water by passage through a solid phase membrane impregnated with the reagent (5-[4-(dimethylamino)benzylidene]rhodanine), while quantitation of the formed colored compound was performed by diffuse reflectance spectrometry. The colloidal form of silver was converted into the ionic form by chemical agent oxone, and determined as Ag+. Furthermore, a rapid and easy to use method based on FIA combined with spectrophotometric detection was introduced for determination of colloidal silver and ionic silver after reduction of Ag+ ions by NaBH4 to form AgNPs. The absorbance due to the initially present colloidal silver and the generated AgNPs was determined spectrophotometrically [37]. The same approach was later used for the determination of the colloidal and ionic silver by thermal lens spectrometric (TLS) technique in a water sample from drinking water supplies of the International Space Station [38].

The aim of this work was to expand the applicability of the trace level and simple, high sample throughput analytical method based on TLS detection for determination of colloidal, ionic and total silver contents [37,38] to the analysis of personal care products based on colloidal silver. We also aimed to validate the performance of the method in case of other samples rather than drinking water, e.g. personal care products, and the performance of the method as analytical tool for quality control in case of personal care products containing colloidal silver. This was realized by the analysis of five commercially available personal care products.

The selected personal care products, a disinfection water, water for internal intake to improve the general state of organism and nose drops, all available in a public pharmacy and declared by producer to contain nanosilver were examined.

The proposed method is based on TLS detection, in which the examined solution is periodically excited by a modulated laser light beam (pump beam), which generates a temperature gradient and a consequent refractive index gradient (thermal lens) [16,38]. This is because the irradiated sample is heated due to the nonradiative relaxation of absorbed energy. The thermal lens can be detected by a second laser beam (probe beam) [38,39]. The thermal lens changes the light intensity on the axis of the probe beam and these changes are directly related to the absorbance A of the sample (Eq. 2). For the steady state thermal lens (excitation time is much longer than the thermal lens time constant) and sample located at 31/2 times the confocal distance Zc beyond the probe beam waist, which is theoreticallythe position for achieving the maximum TLS signal, the relative changes of the axial probe beam intensity (the thermal lens signal) resulting from the interaction of the probe beam with the thermal lens, can be describe as [40]:

          (1)

where the enhancement factor E, relative to the transmission mode measurements (such as in spectrophotometry and related transmission mode techniques) is given by:

          (2)

Where λ is the probe beam wavelength and P the excitation laser power, while (dn/dT) and k are the temperature coefficient of the refractive index and the thermal conductivity of the medium, respectively. The confocal distance of the probe beam is defined as Z_c=2πa²/λ where a is the probe beam radius at its waist.

For low-concentrations or weakly absorbing samples (A<0.1) the second, and other higher order terms in Eq. (1) can be neglected. Under such conditions TLS signal is linearly proportional to the absorbance, excitation power and enhancement of the signal due to the thermooptical properties (dn/dT, k) of the sample. This makes the TLS technique a highly sensitive method for the determination of chemical species at very low concentrations [41,42].

To optimize the sample throughput and the sensitivity as well as limits of detection, the experiments were performed in the batch mode (BM) and in the flow injection system (FIA) with a TLS spectrometer used as a detector. Additionally, spectrophotometric measurements were performed for comparison. In the case of the total silver determination the ICP-OES technique served as the comparative determination pathway for validation of TLS results.

Reagents and solutions

The following chemicals were used as purchased, without further purification: AgNO3 (Carlo Erba, min. 99.8%, Italy), NaBH4 (Carlo Erba, min. 99%, Italy), NaOH (Carlo Erba, min. 99.8%, Italy), Na2HPO4 (Acros Organics, min. 99%, Germany), 65% HNO3 (Baker, VLSI Grade, Germany). All solutions were prepared fresh daily using high purity double-deionized H2O (18 MΩ cm^-1) obtained with the Purelab Option-Q system. Solutions containing silver were protected from light by covering them with an aluminum foil.

Working standard solutions

For constructing the calibration curve, the stock solution of Ag⁺ (1 mg ml^-1) was prepared by dissolving 15.7 mg of AgNO₃ in 10.0 ml of water. Working solutions with silver ion concentrations in the range of 0.020 – 1.20 μg ml^-1 were prepared by dilutions of appropriate volumes of the stock solution in water to 10.0 ml final volume. In the case of the spectrophotometric and TLS measurement techniques the colloidal silver was chemically generated/formed in such solutions.

Formation of silver colloids

The generation of silver colloids is based on the chemical reduction of silver ions by borohydride and follows the reaction:

          (3)

An excess of sodium borohydride is needed ([NaBH₄]/[AgNO₃] = 2 at least) to reduce the ionic silver to colloidal form and to stabilize the formed silver nanoparticles [39].

The 0.6 mM sodium borohydride at pH 12.5 was used as a reductant [37,38]. For this purpose, an aqueous solution of NaOH was prepared by dissolving 5 g of NaOH in 95 ml of water, than 8.2 ml of such solution was mixed with 500 ml of water to obtain aqueous solution of NaOH with pH 12.5. To obtain 0.6 mM concentration of the reductant, the stock solution of 0.1 M sodium borohydride at pH 12.5 was prepared by dissolving 0.095 g of NaBH₄ in 25 ml of aqueous solution of NaOH with pH 12.5 and further diluting 3 ml of obtained solution to 500 ml by NaOH solution with pH 12.5. For the analysis, 1 ml of 0.6 mM NaBH₄ (pH 12.5) was added to each prepared concentration of working standard solutions to fill-in the volume of 10.0 ml. In such a way the basic criteria concerning the AgNPs generation, i.e. the initial concentration of sodium borohydride was at least twice in regard to the concentration of silver nitrate, was fulfilled for the entire investigated silver ion concentration range, and corresponding concentrations of Ag⁰ as AgNPs were obtained.

Real samples

Five commercially available personal care product samples were examined by TLS and spectrophotometric measurement techniques concerning their AgNPs contents, while the ICP-OES measurements served the information about the total silver content in the same samples. The target samples were defined by the declaration of producers as follows:

· Sample 1: Colloidal silver, 50 ml nasal spray for disinfection of nose and air passages. Ingredients: water, colloidal silver (20 μg ml^-1),

· Sample 2: Colloidal silver, 50 ml spray for disinfection of wounds. Ingredients: water, colloidal silver (15 μg ml^-1),

· Sample 3: Colloidal silver, 50 ml nose drops. Ingredients: water, colloidal silver (25-30 μg ml^-1),

· Sample 4: Colloidal silver water, 200 ml, for internal intakes as antibacterial agents. Ingredients: water, colloidal silver (5 μg ml^-1),

· Sample 5: Colloidal silver water, 200 ml, for internal intakes to improve the general state of organism. Ingredients: water, colloidal silver (15 μg ml^-1).

The determination of the concentration of silver nanoparticles in all above mentioned samples was performed on the basis of the linear part of calibration curves. In the case of spectrophotometric and TLS measurement techniques the concentration of total silver was determined by adding NaBH₄ as reductant to each of the samples, after appropriate pH adjustment, whereas the concentration of the initially present colloidal silver was determined without adding the reductant. In all cases the measurement procedure was repeated three times and the average concentrations and the adequate standard deviations were calculated. The ICP-OES measurement served the experimental data about the total silver content in the samples measured in the Ag⁺ form after appropriate sample pretreatments.

It can be note that in the case of determination of the amount of total silver in the examined samples, if they were such experimental request, they were properly diluted to ensure the measurements within the linear part of the calibration curves.

Samples for determination of silver deposited on containers

Determination of the amount of silver species deposited on the containers (glass bottles) in which the solutions/suspensions were purchased, was performed by quantitative washing the bottles with 5 ml of 0.1 M HNO₃. The washing solution was prepared by adding 32 μL of 65% HNO₃ to 5 ml of 2×DI water. On this way the silver species are chemically converted into ionic silver. In the next step for the adjustment of the pH before further analysis of the solution obtained by washing of the sample containers, a 5 mM phosphate buffer at pH 12.5 was used. The buffer was prepared by dissolving 70 mg of Na₂HPO₄ in 100 ml of water. To adjust the pH of the buffer solution to 12.5, the solution of 0.1 M NaOH was applied. This was prepared by dissolving 0.2 g NaOH in 50 ml of water. 54 mL of 0.1 M NaOH was then mixed with the buffer to obtain 5 mM phosphate buffer at pH 12.5. In such solution the NaBH4 reduced the Ag+ content into Ag, and the nanoparticles were formed under controlled conditions, which were analyzed by TLS techniques.

Validation of the analytical methods

Validation of the UV-VIS spectrophotometric, BM-TLS, FIATLS and ICP-OES methods was performed as recommended by the European Union (EUR-FA Guide, Annex I) and by the IUPAC guidelines [43], evaluating the following performance parameters: linearity, limits of detection (LOD) and quantitation (LOQ) by analysing standard solutions of silver in the case of spectrophotometric and TLS methods as AgNPs, and in the case of the ICP-OES as Ag⁺ species. In all cases the LODs and LOQs were evaluated as LOD = 3 × SD_xy/b and LOQ = 10 × SDxy/b (where SD_xy is the standard deviation of the response of the blank signal, and b is the slope of the calibration curve) [44].

The results obtained for colloidal silver as well as for total silver content in real samples measured by BM-TLS, FIA-TLS, spectrophotometric and ICP-OES techniques with optimised measurement protocols were considered by their statistical analysis. In all cases the confidence interval was calculated on the basis of t-distribution (the standard deviation was estimated from the sample data) and by the use of equation:

          (4)

where ͞x is the mean value/average amount of the measured target analyte, SD is its standard deviation, n is the sample size and t_α is the value determined by t-distributon table for α = 0.01 and n^-1 degrees off freedom [45].

Thermal lens spectrometry

TLS measurements in batch mode: To determine the presence and concentration of colloidal and ionic silver after its chemical conversion into AgNPs, a dual-beam TLS spectrometer in batch configuration mode (BM-TLS, Figure 1) was used in accordance with our earlier published paper [38]. Briefly: The sample was placed in a 10 mm optical path quartz cuvette (HELLMA, model 100-QS). The TLS measurements were performed by utilizing a Krypton laser (Innova 300C, COHERENT) as the excitation beam source. The laser operated at 407-413 nm multiline emission and provided 115 – 195 mW power at the location of the detection cell. The induced thermal lens was probed by a He-Ne laser (UNIPHASE, Model 1103P) of 2 mW output power at 632.8 nm and monitored by a photodiode (THORLABS, model PDA 36A-EC) placed behind a pinhole and an interference filter (633 nm, MELLES GRIOT, model FL632.8^-1), and connected to a lock-in amplifier (STANFORD RESEARCH INSTRUMENTS, model SR830 DSP) and to a PC for data storage and treatment. The pump beam was modulated by a mechanical chopper (SCIENTIC INSTRUMENTS, Control unit model 300C, chopping head model 300CD, chopping disks model 300H) at 40 Hz, which provided the maximum signal to noise ratio. Each beam was focused by a 25 mm diameter lens of 100 mm focal distance (EDMUND OPTICS) and directed onto the dichroic mirror (HR488+514, HT633 /45°, LASER COMPONENTS) by a set of broad band, flat mirrors (400-750 nm, THORLABS, model BB1-E02). The dichroic mirror enabled overlapping and collinear propagation of the pump and probe beams and directing them onto quartz detection cell, before reaching the detector.

Figure 1: Shematic diagram of the thermal lens spectrometer [38].

Thermal lens spectrometry with flow-injection mode measurements: In case of the thermal lens spectrometry with flow injection measurement mode (FIA-TLS) the quartz cuvette was replaced by a flow through sample cell connected to the flow injection unit, which is schematically presented in Figure 2.

Figure 2: Scheme of the flow injection unit used in the FIA-TLS measurements [38].

The flow injection system consisted of a HPLC pump (SHIMADZU LC10Ai), used to deliver the carrier solution transporting the sample to the 10 mm pathlength (8 μl) flow through detection cell (HELLMA, model 178.173-QS). The sample was injected through the metal free injection valve (RHEODYNE, model 7725) equipped with a 100 μl peek sample loop (CHEMINERT, VICI). The carrier was pumped through the system at 0.6 ml min^-1 flow rate.

The plasmon resonance absorption spectra of synthesized silver nanoparticles either for the standard solutions/suspension or for the investigated samples were recorded on a dual beam spectrophotometer (PERKIN ELMER, model Lambda 650) in a 10 mm optical path quartz cuvette (HELLMA, model 100-QS). All the spectra were recorded with respect to the double deionized water containing only NaBH₄ as a blank.

Inductively coupled plasma optical emission spectrometry

The verification of the results obtained by UV-VIS spectrophotometry and TLS techniques was performed by the use of inductively coupled plasma optical emission spectrometer (ICPOES) (VARIAN, model 715 ES) which enabled the quantitation of the total ionic silver concentrations in the examined personal care product samples. Prior to their analysis the samples were digested in a microwave oven (MILESTONE, model Ethos 1) using HNO₃ and quartz digestion vessels.

Scanning electron microscopy

Scanning electron micrographs of the synthesized nanoparticles of AgNPs were recorded by a scanning electron microscope (SEM, JSM- 7100F, JEOL) coupled with energy dispersive X-ray (EDX) detector (XMax-80, Oxford) at primary beam voltage 20.0 kV. The micrographs have been acquired both with secondary electron and back-scattered electron detection working modes.

Dynamic light scattering

The determination of AgNPs sizes for the lowest concentration of the standard solutions (50 ng mL^-1) was not possible to perform by the use of SEM because of its insufficient resolution. Thus, the characterization of AgNPs in the lowest examined concentration in solution was done by the use of a dynamic light scattering system (DLS, Brook Haven 90 plus/Bi-mas). This instrument enables determination of the AgNPs size in the range between 2 – 2000 nm under the condition that the nanoparticles do not aggregate.

The thermal lens spectrometry, both in BM and in FIA working configurations, was applied for determination of the content of colloid and total silver in the samples, the later one as the sum of the initially present colloidal silver and the colloidal silver obtained from the same samples from the ionic silver, which was present initially into the samples as well, after its reduction to elementary one. The calibration curve based analytical methods were applied in the case of both TLS measurement configurations for the analysis of the personal care product samples. Comparative measurements were performed by spectrophotometry for the determination of the AgNPs. For the other type of comparison the ICP-OES measurement technique served the information about the total silver content chemically converted into its ionic form prior to the measurements for all considered samples.

Optimization of the analytical methods for model suspensions

Spectrophotometry: The absorption spectra of the AgNPs at their different concentrations into the investigated suspensions from the synthesis described by the reaction in Eq. 3 are shown in Figure 4.

As it can be seen, the spectra of silver nanoparticles in aqueous solution/suspension exhibit a plasmon resonance peak located in the visible spectral range with maxima close to 400 nm (Figure 3). Such plasmon resonance effect results from the interaction of the electromagnetic field with silver nanoparticles and consequent oscillation of the electron gas on the surface of the nanoparticles, whereby the electromagnetic radiation is absorbed during this process. This plasmon excitation can decay non-radiatively into electron-hole pairs through intraband or interband excitations and also radiatively by photon emission [33-36]. In addition, the wavelength of the plasmon absorption maximum in a given solvent/media can be used to indicate the particle size.

Figure 3: UV-VIS spectra of silver colloids corresponding to AgNPs concentrations 1 (A), 2 (B), 3 μg ml^-1 (C).

In the present case the recorded spectrums, scanning electron micrographs (Figure 4) and DLS measurements confirmed that the increase in AgNPs concentration increases also the range of sizes of the nanoparticles formed, the maximum of the number size distribution, as well as the wavelength of absorption maximum.

Figure 4: Scanning electron micrographs of the synthesed AgNPs recorded for the following initial concentrations: a) 50 ng ml^-1, b) 1 μg ml^-1, c) 5 μg ml^-1 and d) 15 μg ml^-1.

From the FIG. 3 from the spectrums it can be recognized that the absorption peak of silver nanoparticles increases in height and width with increasing the silver nanoparticle concentration. According to the comparison of the observed absorption band and its maximum close to 400 nm with the literature data [42] the method applied for synthesis of AgNPs in this work yields particles with average size between 4 and 40 nm in the investigated target analyte concentration range. This corresponds well additionally with the observed maximum from other literature sources [21-25]. Furthermore, the same fact was confirmed by SEM measurements (Figure 4) concerning the investigation of the AgNPs sizes for different concentration of the set of standard solutions/ suspensions after their appropriate sample pretreatment.

In all investigated cases the size of AgNPs was found by measuring the diameter of all particles seen on micrographs recorded for different position on the samples and the average size and its standard deviation were calculated from there. The size of AgNPs observed by SEM and obtained from the dried standard suspensions/solutions with different defined initial concentrations, depends on their concentration in the initial suspensions (Figure 5). The main trend concerning the nanoparticles size is that with the increase of AgNPs concentration in the investigated suspensions, the average AgNPs size changes from 4 to 39 nm. For higher concentrations as 5 μg mL^-1 and above the average size of the nanoparticles does not change significantly, although the number of different sizes of AgNPs increases, what was reflected in higher values of standard deviations illustrated in some cases by error bars on the appropriate columns of the histogram (Figure 5). As the numerical values of the standard deviations: that is lower than 0.5 nm for 0.05 μg ml^-1 and 1 μg ml^-1 of AgNPs solution/suspension, and significantly higher as 6 nm and 8 nm for 5 μg ml^-1 and 15 μg ml^-1, respectively.

Figure 5: Dependence of AgNPs size on the concentration in the solution. For the first two AgNPs concentration the error bars are too small to be noticed on the graph.

It is important to note that since it was not possible to determine the size of AgNPs in the examined solution/suspension of 0.05 μg ml^-1 by SEM, because of insufficient resolution of the instrument, it was performed by the use of DLS measurement technique as described in the experimental part (for details see in Section 3). The required condition of applying DLS instrument for particles characterization is the not occurrence of the particles aggregation process. Thus, this measurement technique was convenient for the investigation of the suspensions of the AgNPs in concentration range below 1 μg ml^-1.

Additionally, from the set of absorption spectra recorded for the broader AgNPs concentration range it was recognized that the absorbance maximum shifts from 400 nm to 425 nm in the case of the concentrations of AgNPs > 5 μg ml^-1. This causes significant and from analytical viewpoint unfavored changes in the maximum of absorbance, which is more than 10%, giving on such way a concentration framework for the application of the spectrophotometric method. Calibration curve for determination of the initial concentration of AgNPs or Ag+ chemically converted into AgNPs prior to measurements was constructed by measuring the absorbance at 400 nm for different concentrations of standard AgNPs solutions/suspensions in the initial concentration range of Ag+ chemically converted into the AgNPs and expressed as 0.090^-1.2 μg ml^-1 and the obtained equation of the regression line i.e. calibration curve was defined as follows: y = 0.074x + 0.159 (R2 = 0.996). In this model sistem the RSDs of the obtained absorbances were in the range of 1.2-3.8%.

As for the analytical outlines of the spectrophotometric measurements they are in agreement with our earlier published paper [37], in which under the optimized experimental condition the absorbance of AgNPs shows linear dependence on their concentration in the range of 0.15-5.00 μg ml^-1 (R2 = 0.998). It is important to note, that in earlier experiments the reaction time was much shorter than in our present case, which resulted in the shift of that calibration curve to higher concentration range. Furthermore, the earlier achieved LOD was 50 ng ml^-1, which is nearly twice higher than in the present case.

The thermal lens spectrometry: For TLS calibration curve in batch mode for the model systems, the value of the lock-in signal is plotted as a function of the concentration of AgNPs standard solutions/suspensions. The obtained relationship is not linear in wider investigated concentration range of the target analyte from 0.30 ng ml^-1 to 100 ng ml^-1 (Figure 6), but this phenomena probably does not results from the nonlinearities describe by Eq. 2 since the absorbance is very low (A < 0.1) for the analyzed target analyte concentration range. The nonlinearity in the present TLS calibration curve for concentrations of AgNPs > 80 ng ml^-1 originates rather from the changes in the magnitude of absorbance maximum for the concentrations higher than 80 ng ml^-1 caused by the change in the range of AgNPs sizes. It was mentioned above, that with the increase of AgNPs concentration, the width and height of plasmon resonance peak increases, what increases the total absorbance for the multiline excitation (407-423 nm). So, the calibration curve shows good linearity (y= 0.995x+0.907; R² = 0.996) only for AgNPs concentrations from 0.30 - 80 ng ml^-1 the insert in Figure 6.

Figure 6: The TLS signal dependence on the concentration of AgNPs in batch mode measurements in the wider concentration range of the target analyte between 0.30 and 100.0 ng ml^-1. The inset ilustrates the calibration curve of the analytical method.

The signals from the measurements of the standard solutions performed in triplicate showed RSD values from 0.3 to 1.2% for higher and lower AgNPs concentrations, respectively.

To enable easier handling of the investigated suspensions and to increase the number of measurements the FIA working mode, in which the examined standard AgNPs suspensions were injected into the carrier water phase in triplicates, was applied for the analysis of the same suspensions which were investigated in BM-TLS working regime. The experiment outlines are illustrated by Figure 7.

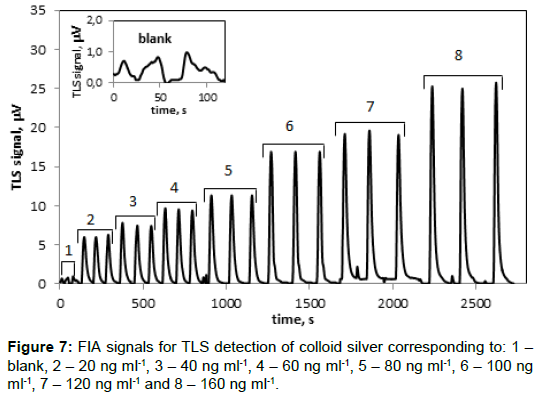

Figure 7: FIA signals for TLS detection of colloid silver corresponding to: 1 – blank, 2 – 20 ng ml^-1, 3 – 40 ng ml^-1, 4 – 60 ng ml^-1, 5 – 80 ng ml^-1, 6 – 100 ng ml^-1, 7 – 120 ng ml^-1 and 8 – 160 ng ml^-1.

For the development of the FIA-TLS analytical method the lock in signal peak maxima were correlated with the appropriate injected AgNPs concentrations. The obtained equation of the calibration curve was y= 0.145x + 0.159 (R² = 0.995), in the investigated concentration range of the target analyte between 1.5 - 80 ng ml^-1. The precision expressed as the relative standard deviation was in the range between 2 and 6%. This data indicates a good reproducibility of the method.

As for the both described methods, the BM- and the FIA-TLS ones, the results are consistent with our earlier published paper [38], in which the LOD was achieved as 1.5 ng ml^-1, and whereas the linearity of the calibration curves was obtained in the concentration range from 4.5 to 600 ng ml^-1. The reason of a bit higher concentration range elaborated in the mentioned paper is the much shorter reaction time for nanoparticles generation (~3 min), than in the case presented in this work (~15 min).

The outlines of validation for the three plasmon generation based methods used in this study for the direct measurements of the colloidal silver or AgNPs are assumed in the Table 1. It is evident that the TLS methods showed nearly 60-times lower LOD and LOQ values compared to the spectrophotometric one, which stem from the high sensitivity of TLS measurement techniques originating in the direct dependence of TLS signal on the excitation power of the applied laser and photothermal properties of the sample (for details see Introduction, Eqs. 1 and 2). The photo-thermal processes, which govern the generation of the thermal lens, should also explain the relatively narrow linearity range of the TLS methods, which mainly can be affected by eventual shift in the absorption maximum of the surface plasmon resonance band of AgNPs with their changes in concentration which resulting in the significant particulus size differences in the concentration range at 100 ng mL^-1 and above. This shift effect has much lower consequences in the case of spectrophotometry since the analytical working wavelength of measurements is at the absorption maximum, while in case of TLS measurement techniques the pump laser working frequency is on the shoulder of the absorption band. The presented results confirm the sufficiently low LOQs for all three techniques, which can serve for determination of total or ionic silver in selected product with specified colloidal silver concentrations in the range of some ten μg ml^-1. Quantitation and speciation of silver (AgNPs, and/or Ag⁺ converted chemically into the AgNPs) in the concentration range below 0.1 μg ml^-1 is however possible only with TLS techniques.

Table 1: The linearity ranges, correlation coefficients and values of LODs and LOQs achieved for the spectrometric methods used in this study for the determination ofAgNPs.

Inductively coupled plasma optical emission spectrometry: In ICP-OES technique the investigated target analytes is introduced into the plasma state by desolvating and ionising, and the analytical signal was generated by exciting of the specious of interest, i.e. ionic silver. The concentration of the ionic silver was determined on the basis of its emission line at working wavelenght 328 nm, and quantified by their intensity. The LOD and LOQ for ionic silver determination was 10 and 30 ng ml^-1, respectively. The linear range of the method was characterised by eqaution y= 231.6 x + 1.6 (R²= 0.999) in the concentration range from 30 ng ml^-1 to 500 ng ml^-1, while the RSD of the method was between 3 and 6%.

Real samples analysis

Several liquid samples containing colloid silver were analyzed, including nasal spray and drops, wounds’ disinfection water, and liquid for internal intakes, directly by BM-TLS, FIA-TLS and spectrophotometry, and after the determination of initially present amount of colloidal silver and additional chemical conversion of the also present ionic silver (which was present in all samples) into the AgNPs, which sum is known as total silver, was measured again by same measurement techniques. For the comparison of total silver content in the investigated samples, after the appropriate sample treatment in acidic media when the all species of silver were converted into its ionic form the target analyte was measured by ICP-OES.

The applicability of the elaborated methods was tested by determining the concentration of colloidal silver in five samples of selected personal care products specified by their producers to contain colloidal silver in concentrations ranging from 5 to 30 μg mL^-1. This was done by measuring the samples` without reduction with borohydride. The obtained signals in the case of all three measurement techniques were evaluated from the appropriate calibration curves, described above, and the outlines are elaborated in the Table 2. After the direct TLS measurements the presence of colloidal silver was additionally confirmed by adding a drop (cc. 20 μl) of 0.1 M HNO3 solution to 10 mL of real sample to dissolve the initially present and measured AgNPs. After that sample treatment the TLS signal cannot be reproduced, what indicates the dissolution of initially present colloidal silver. After appropriate pH adjustment with 5 mM phosphate buffer at pH 12.5 and adding 1 ml of 0.6 mM NaBH₄ at pH 12.5 to the final solution, the colloidal silver was formed again under controlled conditions, what was reflected in the value of measured TLS signal in accordance with earlier described similar protocol [38].

Table 2: The concentration of colloidal silver and its standard deviation in the examined samples determined by BM-TLS, FIA-TLS and spectrophotometry.

From the results in Table 2 it can be noticed, that the examined samples contained much less colloidal silver than it is stated by producers.

Therefore three samples were paralelly analyzed by optimized ICPOES method for additional control/confirmation of the validity of the results.

The results of ICP-OES measurements are 25-400 times higher after the acidic digestion of the samples. This however, does not indicate the disagreement with results of TLS and spectrophotometry, but rather suggests that most of the silver is in ionic form, because by ICP-OES only the ionic form of the target analyte can be determined which is in the present situation the total ionic silver concentration having in mind the sample preparation procedure and the nature of the chemically generated type of specie. On the other hand the both TLS techniques and UV-VIS spectrophotometry are not convenient for direct determination of ionic silver, as it was underlined these measurement techniques in combination with the optimized methods are suitable only for the determination of AgNPs.

In the further experimental steps the personal care products were treated by borohydride, which lead to the chemical conversion of ionic silver from the samples into the AgNPs, which means that additionally to the initially present AgNPs a portion of the AgNPs was generated forming on such way the total colloidal silver concentration. TLS and spectrophotometric measurements were performed in accordance with earlier procedure which apply the evaluation of the measured parameters by applying the calibration curves in the case of all used measurement techniques. The results are presented in the Table 3 and show remarkable higher AgNPs concentrations determined by TLS and spectrophotometry compared to results reported in Table 2. These values are in good agreement (at 99% confidence level) with the experiment outlines obtained by ICP-OES and coincide well with the specifications of producers for the content of colloidal silver in their products.

Table 3: The concentration of total silver in the examined samples determined by BM-TLS, FIA-TLS, spectrophotometry and ICP-OES.

Furthermore, a good agreement of the results was obtained for colloidal silver as well as for total silver measured in the form of AgNPs by both TLS and spectrophotometric methods for all real samples, since the statistical analysis of these results reveals, that the data obtained by all three measurement techniques and protocols are in agreementat at the confidence level (CL) of 99%.

In details in case of sample 1 the CL includes values from 50 to 58 ng ml^-1 and 10 to 26 μg ml^-1 for the concentration of initial colloidal and total silver measured as total colloidal silver, respectively. For sample 2, CL includes the values between 94 and 134 ng ml^-1 for AgNPs, whereas for the total amount of silver between 13 and 35 μg ml^-1. The received values of CLs for sample 3 are 708-846 ng ml^-1 for the concentration of colloidal silver and 12-22 μg ml^-1 for the total amount of it. CLs for sample 4 contains the values between 98 and 137 ng ml^-1 in case of colloidal silver and between 16 and 24 μg ml^-1 for the concentration of total silver. Sample 5 has got the CLs of values 98^-137 ng ml^-1 and 16-32 μg ml^-1 for the concentration of colloidal and total silver, respectively.

These findings confirms that the TLS techniques, both in FIA and batch working mode, are reliable and highly sensitive analytical tools for determination of colloidal silver either from the AgNPs originally present into the personal care product samples or from the Ag+ species converted by chemical reduction into the measurable AgNPs from of all investigated products.

Concentration of silver deposited on containers

The adsorption of silver species including the colloidal silver one on the walls of the containers, in which the products were sold, was investigated in details. To check for the content of the total silver deposited on the walls of containers, they were washed with HNO₃ solution to dissolve any colloidal silver deposited or adsorbed on the container. The pH of the leachates with ionic silver was adjusted by phosphate buffer and after adding NaBH₄ the concentrations of AgNPs in leachate solutions were determined by BM-TLS method and in some cases parallelly by FIA-TLS as well. Two of such samples measured by FIA-TLS at the same run in triplicate injection of the samples are illustrated at the (Figure 8). The outlines of the experiments dealing with all five samples are elaborated in details in the Table 4. Considering the dilution during the process of dissolution and subsequent pH adjustment and reduction process, the total amounts of silver deposited on the walls of the containers were calculated by appropriate multiplying the determined concentrations of AgNPs in leachate solutions. Note, that in case of sample 4 and 5 it was determined by TLS in both BM and FIA (Figure 8), whereas in case of samples 1-3 only by BM-TLS. The received values of AgNPs concentrations were compared with the values of AgNPs in the samples declared by their producers.

Table 4: The concentrations of total silver in leachates obtained from the walls of the sample containers.

Figure 8: TLS signals in FIA configuration of the experimental setup for silver species deposited on the bottle in which the colloidal solution was stored after washing it with nitric acid solution and pH adjustment it with phosphate buffer and addition of reductant (1-sample 4, 2-sample 5).

As can be calculated from the results in Table 4 in combination with by producers declared concentrations of the colloidal silver in the samples, the amount of silver adsorbed on the walls is only 0.1% of total amounts of silver in containers or less. The nature of the species of Ag on the container walls cannot be discriminated since washing with HNO3, washes any adsorbed Ag+, but it also dissolves colloidal Ag yielding producing silver ions. However, even if all of the silver deposited on the container walls would be colloidal this cannot account for such low concentrations of colloidal silver as determined in the examined samples.

Colorimetric characterization

During the experimental work it was recognized, that the investigated samples (except sample 3) were colorless, while the standard solutions with concentrations comparable to specified contents of colloidal Ag were all yellowish after reduction with borohydride. The coloration was noticed for all solutions with silver concentration of about 1 μg ml^-1 and higher. This suggests that the colorimetric evaluation of the samples can be used as a preliminary step in assessing the concentration and the form of silver present in the personal care products. A colorless sample is a clear indication of colloidal silver concentrations between 0.050 and 0.78 μg ml^-1. On the other hand, a yellowish color of the sample does not automatically mean the presence of AgNPs, since other constituents of the sample(s) might contribute to the colour. To confirm the presence of AgNPs, the samples can be treated with HNO₃ solution (0.1 M), which resulted in discoloration and appearance of the colour again after pH adjustment and reduction with borohydride. This procedure is utilized in TLS determination of colloidal silver to confirm the origin of TLS signal from colloidal Ag [16,38]. Similarly, a simple addition of borohydride to investigated sample should confirm any presence of silver ions at concentrations between 17 and 35 μg ml^-1. In our case adding borohydride to the examined samples to reduce ionic silver potentially present in the samples resulted in intensive yellowish coloring of the solutions similar to the colour of standards (Figure 9). This additionally confirms, that most of the silver present in examined samples is not colloidal but is rather in the ionic form.

Figure 9: Examined samples and relevant standard solutions, from the left to the right: (a) sample 1, 15 μg ml^-1 standard solutions, sample 1 with 1 mL of borohydride; (b) sample 2, 20 μg ml^-1 standard solution, sample 2 with 1 mL of borohydride; (c) sample 3, 25 μg ml^-1 standard solution, 30 μg ml^-1 standard solution, sample 3 with 1 ml of borohydride; (d) sample 4, 5 μg ml^-1 standard solution, sample 4 with 1 ml of borohydride; (e) sample 5, 15 μg ml^-1 standard solution, sample 5 with 1 ml of borohydride.

In the study the thermal lens spectroscopy was successfully applied for determining the colloidal and total amount of silver in the form of colloidal silver in 5 personal care product samples from different producers. It was found, that the examined samples contain larger amounts of ionic silver, whereas it colloidal specie is at the level of less than 1 μg mL^-1, whereas the amount of ionic silver was between 18 and 35 μg ml^-1, what indicates that the amount of silver declared by the producers refer mainly to its total amount. It was also demonstrated, that TLS either in the batch working mode or in flow injection analysis configuration is a suitable technique for direct application to analytical determination of silver species in liquid samples. The proposed methods have excellent characteristics such as very low detection limit (0.090 and 0.45 ng ml^-1 for BM and FIA mode, respectively) and present good accuracy, sensitivity and precision.

The presented results also indicate a clear need for quality control of personal care products, specified to contain colloidal silver, since the analysis of randomly selected five products among those available on the market, has shown that they contain concentrations of colloidal silver is lower (below 1 μg ml^-1 in all cases) than those declared by the producers.

The authors would like to thank to CEEPUSIII CZ 2012 for support and thus enabling to perform the joint research, as well as to the Slovenian Research Agency for funding this work through research grants P1-0034: “Analytics and chemical characterization of materials and processes”.
