Quick and accurate methods for determination of carvedilol and hydrochlorothiazide in tablets and spiked human plasma by using third derivative (3D), fourth derivative (4D) and ratio spectra derivative (1DD) spectrophotometric methods were developed. The zero-crossing technique was employed in measurements, using 3D at 245.9 or 230.2 nm and 4D at 247.4 or 226.9 nm for carvedilol or hydrochlorothiazide, respectively. The first-derivative of ratio spectra (1DD) where the amplitudes were measured at 236.1 nm for carvedilol and 261.1 nm for hydrochlorothiazide. The calibration curves were linear in the ranges of 1.0-20.0 μg mL-1 for each of carvedilol and hydrochlorothiazide using 3D 4D and 1DD methods. The suggested methods were tested using laboratory-prepared mixtures and were successfully applied for the analysis of pharmaceutical formulations. The methods retained their accuracy and precision when the standard addition technique was applied. The results obtained by applying the proposed methods were statistically analyzed and compared with those obtained by reported and official HPLC methods for carvedilol and hydrochlorothiazide, respectively. These methods showed to be appropriate for simultaneous determination of carvedilol and hydrochlorothiazide in human plasma samples with a limit of quantitation (LOQ) is ≤ 0.5 μg mL-1.
Keywords: Carvedilol; Hydrochlorothiazide; UV-derivative spectrophotometry; Ratio derivative spectrophotometry; Tablets; Spiked human plasma

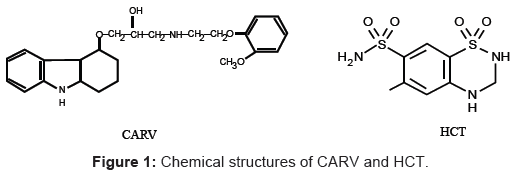

Carvedilol (CARV, Figure 1), 1-(9H-carbazol-4-yloxy)-3-[[2-(2- methoxyphenoxy) ethyl]amino]-2-propanol, which is a nonselective ß-adrenergic blocker with α 1-blocking activity . It is used in the treatment of sever heart failure, bradycardia and hypertension . It is administered alone or together with antihypertensive, combined therapy of CARV and HCT had a significantly greater blood pressure reduction than with the same dosage of the drug alone .
Hydrochlorothiazide (HCT, Figure 1), 6-chloro-3,4-dihydro- 2H-1,2,4-benzothiadiazine-7-sulfonamide-1,1–dioxide, is a diuretic of the class of benzothiadiazines widely used in antihypertensive pharmaceutical formulations which decreases active sodium reabsorption and reduces peripheral vascular resistence .
Literature survey revealed that some RP-HPLC [5,6] and spectrophotometric methods [5,7] have been reported for estimation of CARV and HCT in combined formulations by first derivative spectrophotometry , dual wavelength analysis  and Q-analysis (graphical absorbance ratio) . The first-order UV derivative spectrophotometric method  for the determination of the two mentioned drugs in synthetic mixture, it gave aberrant errors for the determination of CARV and a narrow linear dynamic range.
The carvedilol/hydrochlorothiazide mixture is not yet official in any pharmacopoeia. The purpose of the present study is to investigate the utility of third or fourth derivative and first derivative of ratio spectrophotometric methods in the assay of carvedilol and hydrochlorothiazide in combination in the pharmaceutical formulations without the necessity of sample treatment. A study concerning the simultaneous determination of these compounds in spiked human plasma samples using the suggested methods was also performed. The methods had sufficiently good accuracy, precision and permitted a simple, time- and money-saving assay of these compounds in mixtures.
Reagents and materials
All chemicals and solvents used in this investigation were of analytical-reagent grade. Carvedilol (Roche, Milan, Italy) and hydrochlorothiazide (Arab Company for Gelatin and Pharmaceutical Products, Egypt) were of pharmaceutical grade. The following pharmaceutical preparations were purchased from commercial sources in the local market and subjected to analysis: Dilatrend tablets are labeled to contain 25 mg CARV/tablet (Roche, Milan, Italy) and Co-dilatrol tablets are labeled to contain 25 mg CARV and 12.5 mg HCT/tablet (Chemipharma Pharmaceutical Industries, 6th october city, Cairo, Egypt). Human plasma sample was kindly supplied from Vacsera, Egypt.
Preparation of stock and standard solutions
Standard stock solutions each containing 1000 μg mL-1 of CARV and HCT were prepared separately in methanol. Working standard solutions of these drugs (100 μg mL-1) were obtained by dilution of the respective stock solution in methanol.
A Shimatzu 1601 PC double beam UV-visible spectrophotometer, with 1 cm quartz cuvettes, at a fixed slit width (2 nm), connected to an IBM-PC computer loaded with Shimatzu UVPC software was equipped with HP desk jet printer and used for all the absorbance measurements and treatment of data.
Calibration graphs for third and fourth derivatives spectrophotometric methods: Aliquots of working standard solution (100.0 μg mL-1) were transferred into a series of 10 ml volumetric flasks. For each drug 0.1-2.0 mL was taken and the volume was completed to the mark with methanol. The third derivative (3D) and fourth derivative (4D) spectra of the two series solutions for CARV and HCT were scanned within the range 220-320 nm against methanol as a blank. The values of the 3D and 4D amplitudes at 245.9 and 247.4 nm, respectively (zero–crossing of HCT) were measured for the determination of CARV, while the amplitudes at 230.2 and 226.9 nm, respectively, (zero–crossing of CARV) were recorded for the determination of HCT.
Under the experimental conditions described, standard calibration graphs for CARV and HCT (1.0-20.0 μg mL-1) were constructed by plotting the 3D and 4D values versus concentration of drug and the regression equations were computed and recorded in table 1.
|Concentration range (µg.mL-1)||1.0- 20.0||1.0- 20.0|
|Regression equation (Y)a|
|Correlation coefficient (r)||0.9995||0.9999||0.9998||0.9998||0.9998||0.9999|
|Accuracy (mean%, n=15)||100.50||100.10||99.97||100.92||100.17||100.05|
|Intraday precision (RSD%,n=12)||0.53||0.49||0.85||0.68||0.70||0.93|
|Interday precision (RSD%,n=12)||0.62||0.78||0.57||0.87||0.66||0.71|
Table 1: Analytical parameters for the calibration graphs (n=7) for the determination of CARV and HCT using 3D, 4D and 1DD methods.
Calibration graphs for the first derivative of ratio spectra (1DD): Aliquots from working solutions (100 μg mL-1) equivalent to 10-200 μg of drug were transferred into separate 10-ml volumetric flasks and the volume was completed to the mark with methanol (final concentration range 1.0-20.0 μg mL-1of drug).
For CARV, each of the absorption spectrum was recorded and divided by the spectrum of HCT with a concentration 20 μg mL-1 as divisor. The first derivative of the ratio spectra (1DD) were calculated with Δλ=8 nm and scaling factor (SF)=10. The peak amplitudes were measured at 236.1 nm and the values were plotted against the corresponding concentration of CARV and then the regression equation was obtained (Table 1).
For HCT, a similar procedure was followed with a concentration of 20 μg mL-1 CARV as a divisor. HCT was determined by measuring the amplitude value of the ratio spectra at 261.1 nm with Δλ=8 nm and SF =100. The calibration graph was plotted representing the concentration versus the 1DD amplitude and the regression equation was computed and recorded in table 1.
Procedure for tablets: Ten tablets were weighed, finely powdered and mixed thoroughly. An accurately weighed amount of powder equivalent to 100 mg of CARV and 50 mg of HCT was individually transferred into a 100 mL volumetric flask, diluted with methanol, shaked for about 10 min and then completed to volume with methanol. This solution was filtered to separate any insoluble matter, and the filtrate was collected in a clean flask. After filtration, working solutions were prepared by taking suitable aliquots of clear filtrate and diluted with methanol. The assay was completed as described under General procedures. The contents of CARV and HCT were calculated from the corresponding regression equation.
Procedure for spiked human plasma: A liquots of 1.0 mL of human plasma were spiked with different concentration levels of CARV and HCT (20.0-800 μg for both drugs) and transferred into centrifugation tubes, then completed with methanol to volume of 4 mL. Mix well and leave for 2 min to be sure of complete deproteinization of the plasma. The solutions were centrifuged at 3000 rpm for 30 min. One milliliter of each of the clear supernatant solution was withdrawn and transferred into a series of 10-mL volumetric flask, then the volume was completed with methanol. The final concentration range of 0.5-20.0 μg mL-1 was obtained for both drugs. Then 3D, 4D and 1DD methods were applied for the determination of CARV and HCT in spiked human plasma at their selected wavelengths. A blank experiment was carried out simultaneously. The nominal content of each drug in plasma was determined by using the corresponding regression equation.
Development of simple, rapid, sensitive and accurate analytical methods for routine quantitative determination of samples will reduce unnecessary tedious sample preparations, cost materials and laboratories. UV-spectrophotometric methods of analysis offer cost effective and time saving alternative to HPLC method of analysis .
Zero–order absorption spectra of CARV and HCT (Figure 2) show strong spectral overlap, which interfere with direct spectrophtometric analysis of the studied drugs. The suggested derivative spectrophotometric methods provide simple, convenient and accurate methods for simultaneous analysis of CAR and HCT in their combined dosage forms without derivatization procedure.
The main step in the development and validation of an analytical method of analysis is to improve the conditions and parameters, which should be followed in the development and validation . Different solvents were studied: methanol, ethanol, acetonitrile, water, 0.1 M HCl and 0.1 M NaOH, to develop suitable methods of analysis. From solvent effect studies and spectral behaviors of CARV and HCT, methanol was selected as a solvent for the 3D, 4D and 1DD methods.
Derivative UV- spectrophotometry
The fundamental principles and convention of derivative spectrophotometry have been enounced in the works of O’Haver and Green  and Fell and Smith . The more convenient order of derivative and working wavelengths were selected by preliminary tests. The basic requirements of the present procedure were that neither shape of derivative spectra nor locations of the zero–crossing wavelengths were dependent on the composition of binary mixtures.
First to fourth derivative spectra of methanolic solutions of CAVR and HCT at appropriate concentrations were taken and observed. The good resolution of the derivative spectra allowed to select the optimal working wavelengths from several zero-crossing wavelengths, i.e., those which exhibited the best linear response to analyte concentration and/or higher sensitivity.

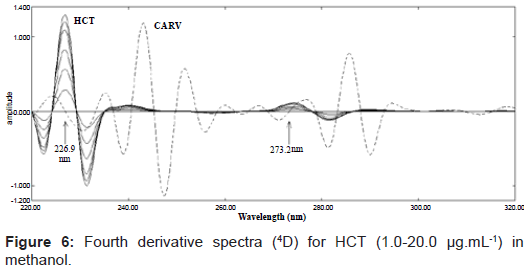

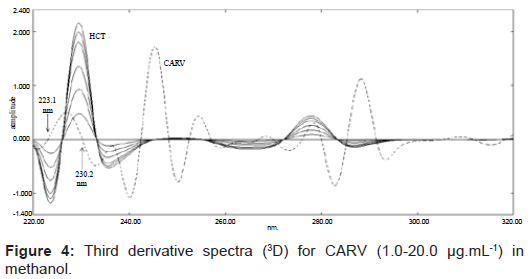

Third and fourth UV derivative spectra of methanolic drug solutions were the best since the derivative absorbance peaks of these drugs were isolated in these spectra (Figures 3-6). Zero-crossing wavelengths at 245.9 or 247.4 nm for CARV and at 230.2 or 226.9 nm for HCT determinations in case of 3D or 4D methods, respectively, were selected since reproducible readings were obtained at these wavelengths. Linear relationships between derivative amplitude and drug concentration were obtained over the concentration range 1.0-20.0 μg mL-1 for both drugs. The regression equations were computed and listed in table 1.
To optimize the simultaneous determination of CARV and HCT by using 1DD method, it is necessary to test the influence of the variables: divisor standard concentration, Δλ and scaling factor (SF). All these variables were studied. From several tests for correct choice of the divisor standard concentration, the best results in terms of signal to noise ratio, sensitivity and repeatability and validity range of Beer’s law were tested.
For method 1DD, a standard spectrum of 20 μg mL-1 for both HCT and CARV was considered as a suitable divisor concentration for the determination of the two drugs in a mixture. The absorption spectra of the mixtures prepared at different concentrations of CARV and HCT were recorded in the range 220-320 nm and stored in the IBM-PC. The stored spectra of the binary mixtures, CARV and HCT were divided by a standard spectrum of 20 μg mL-1 HCT. The ratio spectra were smoothed with Δλ=8 nm and SF=10 and their derivatives were traced with the same Δλ (Figure 7). In the binary mixtures, the concentration of CARV was determined by measuring the amplitude at 236.1 nm corresponding to maximum wavelength.
For the determination of HCT, the stored spectra of the mixtures are divided by 20 μg mL-1 of CARV; Figure 8 shows the first derivative of the ratio spectra (1DD) plotted with the intervals of Δλ=8 nm and SF=100. The contents of HCT in binary mixtures were determined by measuring the amplitudes at 261.1 nm corresponding to maximum wavelength. The calibration graphs at 236.1 and 261.1 nm for CARV and HCT, respectively, were obtained by plotting the values of the first derivative of ratio spectra CARV/HCT and HCT/CARV, with variable concentrations of CARV and HCT, respectively. The proposed method is applicable over the concentration range 1.0-20.0 μg mL-1 for both CARV and HCT and the regression equations were computed and grouped in table 1.
Statistical analysis of the data shows that the slope of the calibration graph for each drug was independent on the concentration of the other component of the mixture. This means that the 3D, 4D, and 1DD amplitudes of the mixture were only a function of the concentration of the drug at the specified wavelength.
Methods validation has been performed as per the International Conference on Harmonization (ICH), guidelines .
Linearity: The linearity of the developed methods was evaluated by analyzing different concentrations of standard solutions of CARV and HCT in triplicates for 3D, 4D and 1DD methods. Beer’s law concentration range was found to be 1.0-20.0 μg mL-1 for both CARV and HCT. The values of correlation coefficients were close to unity indicating good linearity. The characteristic parameters for the constructed equations are summarized in table 1.
Accuracy: The previously mentioned methods were repeated five times for three different concentrations of pure samples. The concentrations were calculated each time from its corresponding regression equation. The mean recovery percentages are found to be 100.50, 100.10 and 99.97% for CARV and 100.92, 100.17 and 100.05% for HCT using 3D, 4D and 1DD methods, respectively, (Table 1). The excellent recoveries obtained suggest the good accuracy of the proposed methods.
Precision: To measure the degree of method repeatability (intraday precision), three different concentrations (within linearity range) were freshly prepared and analyzed, each three times within the same day and in three successive days ( interday precision). The results listed in table 1, show that no significant difference for the assay, which tested within-day (repeatability) and between-day (reproducibility). The RSD values were less than 1% indicating high degree of precision of the proposed methods.
Selectivity: Method selectivity for each drug in presence of the other was achieved by preparing different mixtures of drugs within linearity range. The results obtained in Table 2 are good indication of the high selectivity of the three methods and their potential for the simultaneous determination of CARV and HCT from their mixtures.
|Mean recovery (%)||100.26||99.91||100.48||100.37||100.06||100.49|
Table 2: Determination of carvedilol (CARV) and hydrochlorothiazide (HCT) in laboratory prepared mixtures using 3D, 4D, and 1DD methods.
limits of detection (LOD) and quantitation (LOQ): According to ICH recommendation  the approach based on SD of the response and the slope of Beer’s law (b) was used for determination of the detection and quantitation limits in accordance to the following equations: LOD=3.3×SD/b and LOQ=10×SD/b. Results presented in table 1, indicate the methods are sensitive for determination of the studied drugs.
Standard addition method: Standard addition technique was applied to analysis of the commercial tablets (Dilatrend and Codilatrol tablets) by adding knows amounts of pure drug to a known concentration of preanalyzed tablets at three different levels (50%, 75% and 100%). The concentration of the pure drug was calculated from the corresponding regression equation of CARV and HCT. The recovery results in Table 3 illustrate the suitability of the methods for the analysis of CARV and HCT in their dosage forms without interference from the common excipients.
|Method||Amount, µg.mL-1||Carvedilol (CARV)||Hydrochlorothiazide (HCT)|
|Taken||Added||Found ± RSDa||Recovery ± RSD (%)||Found ± RSDa||Recovery ± RSD (%)|
|3D||245.9 nm||230.2 nm|
|10.0||5.0||4.94 ± 0.05||98.80 ± 1.01||4.99 ± 0.04||99.80 ± 0.80|
|10.0||7.5||7.60 ± 0.6||101.33 ± 0.79||7.48 ± 0.03||99.73 ± 0.40|
|10.0||10.0||9.97 ± 0.09||99.70 ± 0.90||10.05 ± 0.06||100.50 ± 0.60|
|Mean ± RSD(%)||99.94 ± 0.90||100.01 ± 0.60|
|4D||247.4 nm||226.9 nm|
|10.0||5.0||5.02 ± 0.04||100.40 ± 0.80||4.97 ± 0.05||99.40 ± 1.101|
|10.0||7.5||7.47 ± 0.05||99.60 ± 0.67||7.55 ± 0.04||100.66 ± 0.53|
|10.0||10.0||10.03 ± 0.09||100.30 ± 0.90||9.95 ± 0.07||99.50 ± 0.70|
|Mean ± RSD(%)||100.10 ± 0.79||99.85 ± 0.75|
|1DD||236.1 nm||261.1 nm|
|10.0||5.0||4.98 ± 0.03||99.60 ± 0.60||5.02 ± 0.02||100.40 ± 0.40|
|10.0||7.5||7.51 ± 0.04||100.13 ± 0.53||7.49 ± 0.05||99.87 ± 0.67|
|10.0||10.0||9.99 ± 0.07||99.90 ± 0.70||10.02 ± 0.08||100.20 ± 0.80|
|Mean ± RSD(%)||99.88 ± 0.61||100.16 ± 0.62|
Table 3: Recovery data by standard addition method for CARV and HCT in drug formulation (Co-dilatrol tablets).
Application to tablets: The proposed methods were applied for the determination of CARV and HCT in bulk powder and commercial tablets of Dilatrend (for CARV) and Co-dilatrol (for both CARV and HCT) (Table 4). Five replicate determinations were made. Satisfactory results were obtained for CARV and HCT and were in good agreement with label claims. The results of CARV and HCT were compared with those obtained by the HPLC methods [5,13,14], using t-and F-tests. The values at 95% confidence limit did not exceed the theoretical values of 2.306 and 6.39 for t-and F-tests, respectively, indicate no significant difference between the performance of these methods regarding accuracy and precision (Table 4).
|Carvedilol (CARV)||(245.9 nm)||(247.4 nm)||(236.1 nm)|
|Bulk power||Mean ± RSD (%)||100.39 ± 0.93||100.27 ± 0.77||100.50 ± 0.81||100.90 ± 0.69a|
|Dilatrend tablets||Mean ± RSD (%)||99.85 ± 0.62||99.93 ± 0.63||99.90 ± 0.51||99.66 ± 0.72 a|
|Co-dilatrol tablets||Mean ± RSD (%)||99.91 ± 0.51||99.96 ± 0.48||99.93 ± 0.53||99.89 ± 0.70b|
|Hydrochlorothiazide (HCT)||(230.2 nm)||(226.9 nm)||(261.1 nm)|
|Bulk power||Mean±RSD(%)||99.85 ± 0.70||100.28 ± 0.94||100.57 ± 0.84||99.93 ± 0.68c|
|Co-dilatrol||Mean ± RSD (%)||99.90 ± 0.72||99.85 ± 0.61||99.97 ± 0.80||99.72 ± 0.96b|
Table 4: Results of the determination of CARV and HTC using 3D, 4D, 1DD and HPLC methods in bulk power and in commercial tablets.
Application to spiked human plasma: In this part, the 3D, 4D and 1DD derivative spectrophotometric methods were used for the determination of CARV and HCT in spiked human plasma due to their selected analytical signals are highly sensitive and well defined and so they are possible to expect more accurate results. The mean advantage of the use of these methods for the direct determinations of drugs in human plasma is their ability to eliminate the background absorption of the matrix and avoids the need of a preliminary clean-up stage .
The validity of the methods was proved for analysis ICH guideline  (linearity, accuracy, precision, LOD and LOQ). The results are abridged in table 5. The high sensitivity of the proposed methods allowed the determination of CARV and HCT in spiked human plasma.
|Concentration range (µg.mL-1)||0.5- 20.0||0.5- 18.0|
|Regression equation (Y)a|
|Correlation coefficient (r)||0.9996||0.9997||0.9998||0.9996||0.9996||0.9997|
|Accuracy (mean%, n=12)||97.23||99.25||98.32||97.50||97.13||98.52|
|Intraday precision (RSD%,n=12)||0.50||0.48||0.57||0.37||0.36||0.49|
|Interday precision (RSD%,n=12)||0.53||0.40||0.53||0.42||0.54||0.56|
Table 5: Validation and application of the suggested methods for determination of CARV and HCT in spiked human plasma using 3D, 4D and 1DD methods.
Under the experimental condition, calibration curves in plasma were obeyed in the concentration range of 0.5-20.0 μg mL-1 at 245.9, 247.4 and 236.1 nm for CARV and 0.5-18.0 μg mL-1 at 230.2, 226.9 and 261.1 nm for HCT, using 3D, 4D, 1DD methods, respectively. The correlation coefficients were between 0.9996-0.9998; indicate good linearity of the present methods.
The accuracy of the proposed methods were determined by investigating the percentage recovery of spiked human plasma solutions with four concentration levels, each in triplicate, ranging from 4.0-16.0 μg mL-1 for both CARV and HCT. The percentage recoveries are 97.23-99.25% for CARV and 97.13-98.52% for HCT (Table 5), which indicate good accuracy of the proposed methods.
For precision study, intraday precision (repeatability) was evaluated by assaying freshly prepared solutions of plasma spiked with different concentrations of CARV and HCT (4.0-16.0 μg mL-1 for both drugs) in triplicate within the same day and in three successive days (interday precision). The results are listed in table 5 and showed RSD values are less than 1% which indicates high degree of precision of the proposed methods.
From the above studies, the use UV derivative spectra allows the direct determination of CARV and HCT in spiked human plasma at the μg mL-1 level without any extraction or separation step. These methods avoid the matrix effects that occur at wavelength higher than 300 nm. In this region the endogenous components of blood plasma interfere significantly in the fundamental absorption spectra but not in the higher order derivative spectra . Following oral administration of a 25 mg CARV tablet, maximum plasma concentrations were 5 to 99 μg ml-1 (mean 21 μg ml-1) see after 1.46 h , i.e. its concentration in plasma is in the upper limits of concentration range of the proposed methods. HCT is rapidly but-incompletely absorbed after oral administration. Peak plasma concentrations of 0.18 to 0.43 μg ml-1 were attained in 2 to 4 h, following a single oral administration of a 50 mg tablet of HCT . The lower concentration of HCT in plasma may be attained by applying a standard addition method.
The proposed methods (3D, 4D, 1DD) used a simple plasma deproteination step instead of extraction. No interferences from endogenous substances were observed in human plasma samples. The three spectrophotometric methods are suitable techniques for the analysis of commercial formulations containing combination of CARV and HCT. The most striking features of the proposed methods are their simplicity, sensitivity, selectivity and rapidity, which render them suitable for routine analysis in control laboratories. The proposed methods permit direct determination of the two drugs in bulk powder or in binary mixtures without previous separations. High percentage recovery shows that the methods are free from the interferences of the commonly used excipients and additives in the formulations of drugs.
