Statins are commonly used to treat several forms of hypercholesterolemia. They have potent cholesterol-lowering effects and they could reduce morbidity and mortality associated with coronary heart disease significantly, as proved by many clinical trials. Atorvastatin calcium {[R-(R, R*)]-2-(4-flurophenyl)-β,δ-dihydroxy- 5(1-methylethyl)-3-phenyl-4-[phenylamino)carbonyl]-1H-pyrrole- 1-heptanoic acid, calcium salt (2:1) trihydrate} is the most commonly occurring drug in commercially available pharmaceutical formulations used for the clinical treatment of hypercholesterolemia [1]. Several methods have been described for the quantitative determination of atorvastatin by high-performance liquid chromatography (HPLC) in different pharmaceutical preparations, either alone [2-7] or with other active ingredients [8-16]. HPTLC [17], electrochemical [18,19], capillary electrophoresis [20] and spectrofluorimetric [21] methods have been developed for the analysis of atorvastatin from its individual and combined formulations with other active ingredients in pharmaceutical preparations and plasma. Various spectrophotometric methods have been reported for the determination of atorvastatin [8,14,22-26] from its individual and combined formulations with other active ingredients. The official procedures in pharmaceutical preparations utilize non-aqueous titration method [27].

Kinetic methods have certain advantages in pharmaceutical analysis regarding selectivity and elimination of additive interferences, which affect direct spectrophotometeric methods. The literature is still poor in analytical assay methods based on kinetics for the determination of atorvastatin in dosage forms. Some specific advantages that the kinetic methods possess are as follows [28]:

- Simple and fast methods because some experimental steps such as filtration, extraction, etc. are avoided prior to absorbance measurements.

- High selectivity since they involve the measurement of the absorbance as a function of reaction time instead of measuring the concrete absorbance value.

- Other active compounds present in the commercial dosage forms may not interfere if they are resisting the chemical reaction conditions established for the proposed kinetic method.

- Colored and/or turbid sample background may possibly not interfere with the determination process.

Therefore, there is a need for another kinetic approach to estimate the drug in commercial dosage forms. The objective of the present study was to develop a precise, accurate and validated kinetic spectrophotometric method by the application of oxidative coupling reaction for the estimation of AVS in bulk and pharmaceutical formulations.

Apparatus

A Jasco V-530 UV–VIS spectrophotometer (Japan) with 1 cm quartz cells was used for all absorbance measurements under the following operating conditions: scan speed medium (400 nm/min), scan range 400-800 nm and slit width 2 nm. Spectra were automatically obtained by Jasco system software. A digimed pH meter (model T-901) with combined glass pH electrode and a Thornton sonicator (model T-14) were also used.

Chemicals

Atorvastatin calcium (AVS), (C₃₃H₃₄FN₂O₅)₂Ca.3H₂O, 1209.42 g/ mol, was supplied by CADILA Healthcare Limited (India). Its purity was found to be 99.5% according to the official method [27]. All other chemicals and reagents used were of analytical grade and all solutions were prepared with double distilled water.

Formulations

The following commercial formulations were subjected to the analytical procedures:

1. Atoraz tablets (Razi Labs, Syria) labeled to contain 20 mg atorvastatin /tablet.

2. Low-lip tablets (Al Fares, Syria) labeled to contain 10 mg atorvastatin /tablet.

3. Atorvast tablets (Even Zuher, Syria) labeled to contain 40 mg atorvastatin/tablet.

4. Atorvatin tablets (Alpha, Syria) labeled to contain 20 mg atorvastatin/tablet.

5. Atorvex tablets (Asia, Syria) labeled to contain 80 mg atorvastatin/tablet.

6. Lipolysin tablets (Oubari Pharma, Syria) labeled to contain 20 mg atorvastatin/tablet.

Solutions

Stock standard solution of 0.5 mg/mL was prepared by dissolving the appropriate weight of AVS in 100 mL volumetric flask, 5 mL of methanol was added, the volume was then diluted to the mark with distilled water. 1×10^-2 M 3-methyl-2-benzothiazolinone hydrazone hydrochloride monohydrate (MBTH) (Fluka) solution was prepared with double distilled water and 1% Ce(SO₄)₂ (Merck) solution was prepared with sulfuric acid (0.368 M) medium. Freshly prepared solutions were always used.

General procedures

Initial rate method: Aliquots of standard AVS solution (0.1-1.0 mL, 0.5 mg/mL) were transferred into a series of 25 mL calibrated volumetric flasks. Then 1.0 mL of MBTH solution was added and kept aside for 3 min. After that, 1.0 mL of Ce(SO₄)₂ solution was added. The volume was made up to the mark with distilled water. After mixing, the contents of each flask were immediately transferred to the spectrophotometric cell and the increase in absorbance was recorded at 566 nm as a function of time between 0-20 min against reagent blank treated similarly. The initial rate of the reaction (ν) at different concentrations was obtained from the slope of the tangent to the absorbance-time curve. The calibration curve was constructed by plotting the logarithm of the initial rate (log ν) vs. the logarithm of the molar concentration of the AVS (log C). The amount of the drug was obtained either from the calibration graphs or the regression equation.

Fixed time method: Aliquots of standard AVS solution (0.1 -1.0 mL, 0.5 mg/mL) were transferred into a series of 25 mL calibrated volumetric flasks. Then 1.0 mL of MBTH solution was added and kept aside for 3 min. After that, 1.0 mL of Ce(SO₄)₂ solution was added. The volume was made up to the mark with distilled water. After mixing, the absorbance was measured after 800 sec at 566 nm against reagent blank treated similarly. The calibration curve was constructed by plotting the absorbance against the final concentration of the drug. The amount of the drug in each sample was computed either from calibration curve or regression equation.

Procedures for formulations

Twenty tablets containing AVS were weighed and pulverized. An amount of the powder equivalent to 25 mg of the cited drug was dissolved in a 25 mL of methanol and mixed for about 5 min and then filtered through Whatman filter paper number 40. The methanol was evaporated to about 5 mL. The remaining portion of solution was diluted in a 50 mL volumetric flask to the volume with double distilled water to achieve a concentration of 0.5 mg/mL. The general procedure was then followed in the concentration ranges mentioned above.

Absorption spectra

Atorvastatin reacts with (MBTH) in the presence of Ce(SO₄)₂ in an acidic medium to form pink colored oxidative coupling product that can be measured at 566 nm. Under the experimental conditions the pure drug showed a negligible absorbance at the corresponding maximum (Figure 1). Under the reaction conditions, on oxidation, MBTH loses two electrons and one proton forming an electrophilic intermediate, which is the active coupling species. The coupling of the oxidized form of the drug with electrophilic intermediate of MBTH results in the formation of intensely colored product [26]. The reaction mechanism for the method is shown in scheme 1.

Figure 1: Absorption spectra of (a) AVS-MBTH-Ce(SO₄)₂ system against reagent blank (b) vs. distilled water. C_AVS=20 μg/mL+1 mL of 10^-2 M MBTH+1 mL of 1% Ce(SO₄)₂.

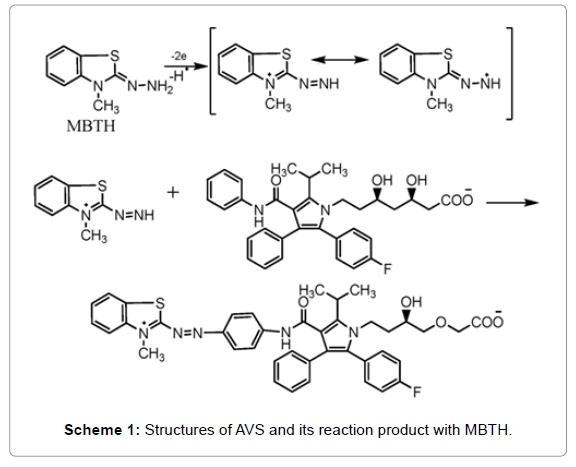

Scheme 1: Structures of AVS and its reaction product with MBTH.

Optimization of reaction conditions

The development of the color product depends on the reaction conditions and was optimized as follows. The effect of various parameters such as volume of MBTH and Ce(SO₄)₂, addition of buffer solutions, waiting time, order of addition of reagents and the stability of colored oxidative coupling product were studied at room temperature. The applicability of MBTH in combination with various oxidizing agents such as FeCl3, KIO₄, NaIO₄, Ce(SO₄)₂, K₂Cr₂O₇ and KMnO₄ were examined. Ce(SO₄)₂ was found to be optimal to form colored oxidative coupling product (AVS-MBTH) and enhanced the final color. Addition of KCl-HCl or Britton buffer solutions effected negativity on the formation of the colored oxidative coupling product. Addition of drug, MBTH and Ce(SO₄)₂ in that order gave maximum absorbance. The laboratory temperature (25 ± 5°C) was found to be optimal for all the experiments. The influence of the reaction time was investigated in the range of 0-20 min. The experimental results show that the final color was achieved with 8 min and the color product was stable for at least 1200 min up to 50°C and was measured at 566 nm.

The most important factor affecting on the formation of pink product was the concentration of MBTH and Ce(SO₄)₂. Figure 2 show that a volume of 1.0 mL of 0.01 M MBTH solution gave maximum sensitivity. Increasing the volume of MBTH leads to decrease in the absorbance; this may be due to the high background absorbance of the reagent. Also, 1.0 mL of 1% Ce(SO₄)₂ was found to be optimal for maximum color development, since the absorbance was found to be maxima at the mentioned volume (Figure 2).

Figure 2: Effect of concentration of MBTH in the presence of 1.0 mL of 1% Ce(SO₄)₂ and concentration of Ce(SO₄)₂ in the presence of 1.0 mL of 10^-2 M MBTH on the formation of colored oxidative coupling product AVS (20 mg/mL) – MBTH – Ce(SO₄)₂.

Quantitation methods

Because the intensity of the color increased with time (Figure 3), this was used as the basis for a useful kinetic method for the determination of atorvastatin. The initial rate, rate constant, variable time (fixed concentration or fixed absorbance) and fixed time methods [29,30] were tested and the most suitable analytical methods were chosen regarding the applicability, sensitivity, the values of the intercept and correlation coefficient (R²).

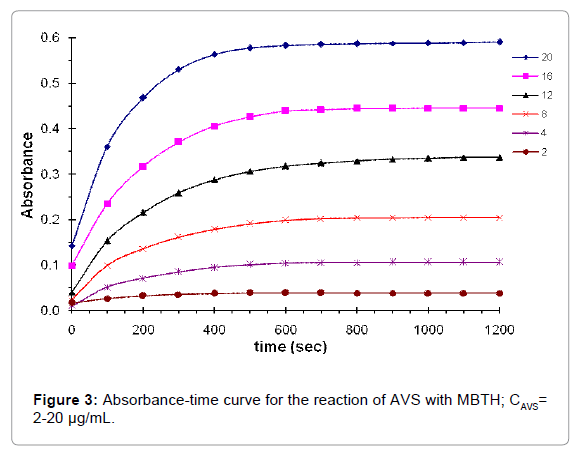

Figure 3: Absorbance-time curve for the reaction of AVS with MBTH; C_AVS= 2-20 μg/mL.

Initial rate method: The initial rate of reaction would follow a pseudo order rate constant and obeyed the following rate equation:

ν = ΔA/Δt = k`Cⁿ

Where ν is the reaction rate, A is the absorbance, t is the measuring time, k' is the pseudo order rate constant, C is the concentration of the drug mol/L and n is the order of the reaction. A calibration curve was constructed by plotting the logarithm of the initial rate of reaction (log ν) versus logarithm of drug concentration (log C) which showed a linear relationship over the concentration range of 2 – 20 μg/mL (Figure 4). The logarithmic form of the above equation is written as follows:

Figure 4: Calibration plot of logarithm rate of the reaction against logarithm molar concentration of AVS for initial rate method.

Log ν = log ΔA/Δt = log k` + n log C

Log ν = log ΔA/Δt = 1.3291 + 0.9557 log [AVS] (R² = 0.9926)

Thus, k` = 21.335 1/S, and the reaction is the first order (n = 0.9557) with respect to AVS concentration. The limit of detection (LOD) and limit of quantification (LOQ) for initial rate method were determined and were found to be 0.093 and 2.0 μg/mL, respectively.

Rate constant method: Graphs of log absorbance versus time for AVS concentration in the range of 2 - 20 μg/mL (1.65×10^-6 to 1.65×10^-5 M) were plotted and all appeared to be rectilinear. Pseudo order rate constant (k`) corresponding to different AVS concentrations were calculated from the slopes multiplied by –2.303 and are presented in table 1. Regression of C versus k` gave the following equation: k` = 47.52 C – 164.9 (R² = 0.9014)

Table 1: Values of rate constant K'.

Variable time method: Reaction rate data were recorded for different AVS concentrations in the range 2 - 20 μg/mL. A preselected value of the absorbance 0.30 was fixed and the time was measured in the seconds (Table 2). The reciprocal of time (1/t) versus the initial concentration of AVS was plotted and the following equation of calibration graph was obtained:

Table 2: Values of reciprocal time taken at fixed absorbance for the different rates of variable concentration of AVS at MBTH constant concentration.

1/t = 1175 C – 0.016 (R² = 0.9473)

The range of AVS concentrations giving the most satisfactory results was limited 12-20 μg/mL (9.92×10^-6 to 1.65×10^-5 M) (Table 2).

Fixed time method: At preselected fixed time, the absorbance of pink colored solution containing varying amounts of AVS was measured at 25°C and 566 nm. Calibration graphs were constructed by plotting the absorbance against the initial concentration of AVS at fixed time 200, 400, 600, 800 and 1000 sec. The regression equations, correlation coefficients and linear ranges are given in table 3. Correlation coefficient, intercept and slope values for the calibration data calculated using the least squares method [31].

Table 3: Regression equations for AVS at fixed time and 25°C.

It is clear that, the slope increases with time and the most acceptable values of the correlation coefficient, linear range and the intercept were obtained for a fixed time of 800 sec. Therefore, the fixed time of 800 sec was utilized for the assay of AVS concentration. The limit of detection (LOD) and limit of quantification (LOQ) for fixed time (800 sec) method were determined and were found to be 0.064 and 2.0 μg/mL, respectively. For more accurate analysis, Ringbom optimum concentration range was calculated to be 4.2-15.7 μg/mL. Table 4 shows the values of molar absorptivity, Sandell's sensitivity and some analytical characteristics for fixed time (800 sec) method.

Table 4: Analytical characteristics of the fixed time (800 sec) method.

Stoichiometric relationship

The composition of colored oxidative coupling product was determined by Job’s method of continuous variation and mole-ratio method [32], for fixed time (800 sec) method. It is apparent from the data that a molar ratio of 1:1 and 1:2 AVS to MBTH.

As a result, the most acceptable values of the correlation coefficients were obtained for an initial rate and fixed time (800 sec) methods. Thus, they were used for the determination of AVS in pure form and pharmaceutical formulations.

Analytical methods validation

The accuracy and precision of the proposed methods were carried out by six determinations at five different concentrations. Percentage relative standard deviation (RSD%) as precision and percentage relative error (Er%) as accuracy of the suggested methods was calculated. Table 5 shows the values of relative standard deviations for different concentrations of AVS determined from the calibration curves. These results of accuracy and precision show that the proposed methods have good repeatability and reproducibility. The proposed methods were found to be selective for the estimation of AVS in the presence of various tablet excipients. For this purpose, a powder blend using typical tablet excipients was prepared along with the drug and then analyzed. The recoveries were not affected by the excipients and the excipients blend did not show any absorption in the range of analysis.

Table 5: Accuracy and precision for the determination of AVS in bulk powder by the proposed initial rate and fixed time methods.

Application to the pharmaceutical dosage forms

The proposed procedure was applied to determine atorvastatin in its pharmaceutical formulations. The results obtained were compared statistically by the student’s t-test (for accuracy) and the variance ratio F-test (for precision) with those obtained by the reference method [27] on samples of the same batch (Table 6). Mean values were obtained with a Student’s t- and F-tests at 95% confidence limit for five degrees of freedom [31]. The results showed comparable accuracy (t-test) and precision (F-test), since the calculated values of t- and F-tests were less than the theoretical data indicating no significant difference between the methods compared. The proposed method has the advantages of being virtually free from interferences by excipients such as glucose, lactose, and starch or from common degradation products (Tables 5 and 6).

Table 6: Application of the proposed method to the determination of AVS in tablet dosage form.

The developed kinetic spectrophotometric method for the determination of atorvastatin was sensitive, accurate and precise and hence can be used for the routine analysis of AVS in bulk and pharmaceutical formulations with a limit of detection of 0.064 μg/mL. MBTH was used as a reagent in acidic medium. The sample recoveries from all formulations were in good agreement with their respective label claims, which suggested non-interference of formulations excipients in the estimation. The developed method is more speed and higher sensitivity as compared to sophisticated spectrophotometric techniques and similar reported methods and has a wider range of linearity. Moreover, the lower reagents consumption along with the short analytical run time of 8 min leads to an environmentally friendly spectrophotometric procedure, which makes it especially suitable for routine quality control analysis work.
