Keywords: Heroine; Morphine; Codeine; 6-Acetyl-morphine; Postmortem brain specimen; GC/MS
The concentration of drugs of abuse, which are susceptible to rapid chemical and metabolic hydrolysis, in blood does not always reflects drug concentration at the site of action , especially in the case of death for heroin overdose, because post-mortem redistribution or drug instability can result in misleading variations of plasmatic drug levels . In fact the detection of heroin in the biological fluids of consumers is difficult due to its short half-life (2–6 minutes after intravenous injection) . In the body, it is rapidly hydrolyzed to 6-monoacetylmorphine (6-MAM), which in turn is converted into morphine. Subsequently, morphine is conjugated with glucuronic acid to give mainly morphine-3-β-d-glucuronide and morphine-6-β-d-glucuronide [3,4]. Direct measurements of heroin metabolites concentrations in the brain are useful in post-mortem forensic toxicology to substantiate fatal overdoses  because drugs of abuse exert their effects via the central nervous system, so that it can be assumed that the encephalic concentration of these drugs, measured in post-mortem specimens, is close or equal to their perimortem concentration at their site of action . Moreover brain samples show several advantages respect to other specimens because brain is an isolate compartment, endowed with lower metabolic activity, resulting in slower decomposition and delayed process of putrefaction [7,8]. On the other hand the brain represents a complex matrix and analysis can be complicated.
In our laboratory, post-mortem samples are routinely subjected to a systematic toxicological analysis (STA) in order to highlight the presence of unknown exogenous compounds (e.g., drugs of abuse, alcohol) that may have played a role in the mechanism of death .
In cases in which STA suggests the presence of morphine and codeine, brain specimens are also typically analyzed . In a previous study , we developed a gas chromatography/mass spectrometry (GC/MS) method to investigate the brain distribution patterns of morphine and codeine, which was then, applied to the determination of their levels in nuclei specimens from 14 fatal cases of suspected heroin overdose. The results of this analysis were subsequently compared to metabolite levels in the blood obtained from the systematic toxicological analysis (STA) . In this work we focused our attention on the detection of 6-MAM, whose presence is extremely important to discriminate between heroin abuse and therapeutic use of morphine [12-15]. Analyses were performed in fifteen brain samples from heroin fatalities belonging to a period of time between 2008 and 2014. The first eight samples were also analyzed in 2012  to determine morphine and codeine levels. The other seven cases were analyzed for the first time. To this end a modified GC/MS method was studied, applied and validated in order to enhance sensitivity, thus helping the determination of 6-MAM using deuterated internal standards (IS-D3, morphine-D3 and codeine-D3).
Post-mortem samples, which were supplied by the Institute of Legal Medicine and Assurance at the University of Palermo, were collected from 15 deceased patients (Table 1). The subjects were mainly men aged between 23 and 56 years (mean 39 years), and circumstantial evidence suggested that the deaths in each case were heroin related. Eight samples (cases 1-8) belonged to people died between 2008 and 2011 and they were analyzed also in 2012 to establish morphine and codeine levels . Seven samples belonged to people died between 2012 and 2014 and they were analyzed for the first time. Nuclei was the brain area withdrawn in all cases as it is representative of the concentration of the analytes in all the brain
All autopsies performed at the Institute of Legal Medicine and Assurance at the University of Palermo was reviewed, and the autopsy documentation, including the charts, final reports and circumstances surrounding each death, were recorded.
Tissue samples from each organ were routinely collected from the subjects during the autopsy and stained with hematoxylin and eosin for histological assessment. During the overall examination of each subject, the cause of death could not be conclusively determined and toxicological analysis was subsequently used to determine it.
Chemicals, reagents and standards
6-MAM, Morphine, Codeine, Morphine-D3, Codeine-D3 (internal standards, IS-D3) was purchased from S.A.L.A.R.S. (Italy). Methanol and acetonitrile were obtained from Sigma–Aldrich (Germany). Sodium tetraborate/hydrochloric acid (pH 9) buffer solution and the mixture BSTFA (N,O-bis(trimethylsilyl) trifluoroacetamide) 99% and TMCS (trimethylchlorosilane) 1% were purchased from Fluka (Switzerland); dichloromethane and isopropyl alcohol were obtained from Prolabo (Italy). Ammonium sulfate was supplied by Carlo Erba (Italy), as well as glacial acetic acid. Water (18.2 MΩ·cm-1) was obtained using a Milli-Q purification system (Millipore, France). All reagents were of analytical grade and stored according to the manufacturers’ instructions.
Standards solutions of 6-MAM (0.1 μg/mL), morphine (0.1 μg/ mL) and codeine (0.1 μg/mL) were prepared in methanol as well as the internal standard solution (IS-D3; 0.5 μg/mL of morphine-D3 and 0.5 μg/mL of codeine-D3). Every day working standard samples (WSS) containing 20 ngtot of 6-MAM, 100 ngtot of morphine and 100 ngtot of codeine were prepared in methanol.
Brain tissue sample preparation and deproteinization
Each sample was homogenized by blending or ball milling (depending on the quantity of the material available) and deproteinized via an ultrasonic bath using the following protocol: 500 mg brain tissue and 100 μl IS-D3 were diluted with 4 ml water and 2 ml pH 9 buffer solution. The resulting mixture was sonicated for 15 min at room temperature. After centrifugation (4000 rpm, 5 min), the clear supernatant was separated and extracted via SPE.
Homogenized and deproteinized encephalic samples were extracted using Bond Elut-LRC Certify solid phase extraction cartridges (Varian, Palo Alto, CA, US) with a Varian vacuum manifold (Varian, CA, USA). Cartridges were first conditioned with 2 ml methanol and 2 ml pH 9 buffer solutions. The supernatants resulting from the centrifugation were loaded on to the cartridges and permitted to absorb through gravity. The cartridges were then washed with 2 ml water, 3 ml of 1 M hydrochloric acid and 0.5 ml methanol. The analytes were subsequently eluted with 2 × 1 ml elution solvent (dichloromethane/isopropyl alcohol/ammonium hydroxide, 8/2/0.2, v/v/v).
The extracts were evaporated to dryness under a stream of nitrogen at 40°C and derivatized with a mixture of BSTFA (N,O-bis(trimethylsilyl) trifluoroacetamide) 99% and TMCS (trimethylchlorosilane) 1% (50 μl) at 70°C for 30 min. GC/MS analysis was performed on a GC 6890 Plus with a mass selective detector and 6890 autosampler. Data were analyzed with MSD ChemStation D.03.00 software (Agilent Technologies). Chromatographic separation was carried out on a RXI- 5silMS (G59) capillary column (30 m × 0.25 mm I.D., thickness 0.25 μm; Restek Bellefonte PA, US).
The GC/MS system was operated under the following conditions: injection temperature: 280°C (splitless mode; 0.25 min splitless time); interface transfer line: 280°C; ion source: 230°C; initial column temperature: 70°C. The temperature was subsequently increased to 180°C at a rate of 40°C min-1, then to 300°C at a rate of 10°C min-1 and held at this temperature for 5 min. Helium was used as the carrier gas at a flow rate of 1.2 ml min-1. Time of analysis 21 min. MS analysis was performed in SCAN (50/550 m/z) and SIM mode with a quadrupole mass detector operated in electron ionization mode, with beam energy of 70 eV. The injection volume was 1 μl. The ions selected for SIM mode acquisition were 287, 340, 399 for 6-MAM-TMS; 401, 414, 429 for morphine-2-TMS; 313, 343, 371 for codeine –TMS; 417, 432 for morphine - D3 –2 TMS and 347, 374 for codeine – D3 – TMS (in bold the quantifier ions).
Specificity: Specificity was assessed by extracting control blank brain samples in each validation run. The lack of interfering peaks at the same analyte retention times was considered as an acceptable selectivity.
Linearity: The linearity of the response of GC/MS analysis was checked for 6-MAM, codeine and morphine by plotting drug/internal standard peak area ratios versus the total amount of drug in the standard solutions, in the interval 10-1000 ng. Linearity was assessed for each analyte in a specific range preparing WSS at a concentration of 10, 15, 20, 50, 100 ngtot for 6-MAM; 50, 100, 250, 500, 1000 ngtot for morphine; 10, 25, 50, 75, 100 ngtot for codeine. To each standard solution 500 mg of blank brain were added, the mixtures were centrifuged, then 4 mL of water, 2 mL of pH 9 buffers and 100 μL of IS-D3 were added. The samples were then sonicated for 15 min and extracted via SPE. Linearity equations were y=0.0092x+0.0551 (R2=0.9905) for 6-MAM; y=0.0072x+0.2869 (R2=0.9977) for morphine; y=0.0118x−0.0057 (R2=0.9815) for codeine. Calibration curves showed good correlation coefficients for all the analytes over the whole range.
Limit of quantitation (LOQ) and limit of detection (LOD): LOD and LOQ were evaluated analyzing a series of decreasing concentrations of drug-fortified homogenized brain samples. LOD was determined to be the lowest analyte concentration with an S/N ratio of at least 3 and resulted 5 ng for 6-MAM, 10 ng for morphine and 5 ng for codeine. LOQ was defined as the lowest concentration with an S/N ratio of at least 10 at which the values of accuracy and precision had a coefficient of variation below 15%. The LOQ was 10 ng for 6-MAM and codeine and 25 ng for morphine; it was calculated by analyzing standard solutions of 6-MAM (10 ngtot), morphine (25 ngtot) and codeine (10 ngtot) during three days
Accuracy: Accuracy was expressed as the recovery (%REC) evaluated by analyzing in triplicate five standard solutions for each analyte. In particular 10, 15, 20, 50, 100 ngtot for 6-MAM; 50, 100, 250, 500, 1000 ngtot for morphine and 10, 25, 50, 75, 100 ngtot for codeine.
%REC was calculated according to: %REC= [Aanalyte/(AIS•RRmed•Ct)] × 100. Where Ct is the total amount of analyte in the standard solution and RRmedium is defined as follows
The quantification of the three drugs was based on the response factor RR, defined as: RR= (Aanalyte/AIS)/Ct. Where Aanalyte and AIS are respectively the peak area of the analyte and the peak area of the IS and Ct is the analyte concentration in the working standard solution expressed as total ng of analyte. The response factor was calculated for all the working standard solutions described above and the averaged RRmedium was considered for the estimation of drugs concentration in brain specimens. Accuracy ranged from 70.5 to 120.5% (mean 100.0%) for 6-MAM; from 84.7 to 112.4% for morphine (mean 100.2%); from 70.9 to 123.8% (mean 100.2%) for codeine.
Precision: The same standard solutions were analyzed in triplicate during three different days in order to evaluate the precision of the method. The RR value was calculated for every standard solution as well as the medium response ratios (RRmedium). Precision was expressed as %CV. The method showed adequate precision for all the analytes, %CV being 20.4% for 6-MAM, 12.2% for morphine and 19.1% for codeine.
In order to evaluate the distribution of morphine and codeine in the brain, in a previous study  a GC/MS method was applied to the determination of morphine and codeine levels in nuclei specimens from fourteen fatal cases of suspected heroin overdose. In this work, we focused our attention on the detection of 6-MAM in eight cases considered in the previous paper, of which a sufficient quantity of brain tissue was still available (cases 1-8). In these samples also the levels of morphine and codeine were evaluated. Moreover we analyzed other seven samples from heroin fatalities belonging to a period of time between 2012 and 2014 (cases 9-15). To this end we studied and validated an analytical method suitable to this purpose, using deuterated internal standards in order to enhance sensitivity (Figure 1).
The results obtained from the analysis of the brain samples and a comparison with the blood levels obtained from STA  is reported in Table 1.
|Case||Age||Gender||Year of death||Brain (ng/g)||Blood (ng/mL)|
Table 1: Overview of the cases studied and concentration of 6-MAM, morphine (Mor) and codeine (Cod) in the brain (ng/g) and in the blood (ng/mL) from STA .
With regards to the brain tissue samples, a wide distribution of both the concentration of morphine and codeine was noted, which is in agreement with the literature .
Even in the blood a high variability was found with regards to the morphine and codeine levels among the fifteen blood samples. As reported in our previous study  no relationship between the levels of the two analytes in each individual sample was found, as it is reasonable, being the concentration of codeine linked to the impurities found in “street heroin” (acetyl-codeine).
As stated before particular attention was devoted to the detection of 6-MAM. From the table it is evident that this analyte was evidenced only the more recent brain samples (Figure 2), probably because it undergoes degradation in the brain tissue. In the blood 6-MAM was detected only in one case. The fact that sometimes 6-MAM is detected in the brain and not in the blood is particularly important. This means that when it is not present in the blood, it is mandatory to carry out the determination in the brain tissue before excluding its presence.

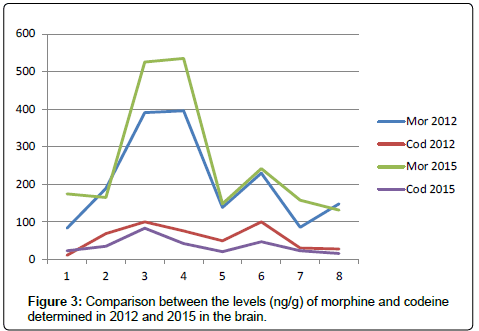

In the cases in which analyses of morphine and codeine were carried out either in 2012 or in 2015, we did a comparison between the concentrations of the two analytes (Figure 3). It is possible to note that the trend of the analyte concentrations was comparable, even if the analytical method was different and a period of time of three years has elapsed between the two determinations. In the case of morphine, we noticed that the levels determined in 2015 are in some cases higher than those of 2012. This could be due to the hydrolysis of 6-MAM, which was not detected in these samples. To confirm this hypothesis, it could be interesting to analyze cases 9-15 after a few months to see if 6-MAM is still present or it has hydrolyzed to morphine.
The determination of 6-MAM in the brain is particularly important because it allows the discrimination between heroin assumption and morphine therapeutic use. On the other hand its determination in brain tissue is particularly difficult because of its low concentration and stability. To this end we optimized and validated an analytical method suitable to this purpose, using deuterated IS for quantitative analysis. Together with 6-MAM we carried out the determination of morphine and codeine in the brain and in the blood to compare their levels and try to establish the distribution of heroin metabolites in different biological matrices. A high variability was found for morphine and codeine, while 6-MAM was detected only in the more recent samples confirming its instability in the brain. Eight samples of fifteen were analyzed in 2012 and 2015. The trend of the concentrations of the analytes was confirmed but the morphine levels found in 2015 were higher than those of 2102. This could be due to the hydrolysis of 6-MAM to morphine. Furthermore in some cases 6-MAM is not detectable in the blood but it is present in the brain, thus highlighting the importance of the analysis of this tissue.
