MN: Micronucleus; MNi: Micronuclei; K-MN: Kinetochore-Negative Micronucleus; K+MN, kinetochore-positive micronucleus; DC: Displaced Chromosome; K+DC, kinetochore- Positive Displaced Chromosome; LC: Lagging Chromosome; K+LC: kinetochore-Positive Lagging Chromosome; CB: Chromosome Bridge.

The micronucleus (MN) test determines chromosomal level DNA damage and is widely used to biomonitor humans exposed to clastogens and aneugens [1,2]. Elevated frequencies of MNi are also found in patients with cancer and other diseases [3,4]. MNi are formed from an entire chromosome or from a chromosomal fragment. The kinetochore is an essential structure composed of a number of conserved protein complexes on the centromere in eukaryotes. It serves as a bridge between the spindle microtubules and chromosomes and regulates chromosome segregation [5,6]. Based on the presence of kinetochores, MNi are further classified into K+MNi and K−MNi. In fixed cells, kinetochores in MNi can be detected by immunofluorescent staining using anti-kinetochore antibodies from the serum of scleroderma (CREST syndrome) patients. Aneugenic agents mainly induce K+MNi in human cells, while clastogenic agents enhance K-MNi. The classification increases the specificity of the MN test [7-11].

In live cells, kinetochores in MNi were identified in a dual-colour fluorescent cell line, HeLa CENP B-GFP H2B-Cherry cells [12]. In these cells, chromosomes and kinetochores were labelled by H2B-m Cherry and CENP B-GFP, respectively. MNi were marked by H2B-m Cherry. K+MNi were identified by CENP B-GFP, while K−MNi did not have the GFP signal. The differences in the origins of K+MNi and K−MNi were investigated using this construction [12]. However, the fates of K+MNi and K−MNi in the mitosis of HeLa cells have not been completely addressed.

Dynamic MN formation was analysed in several types of living cells [13-15]. The MN-bearing cells frequently produced daughter cells with MNi through chromosome lagging during cell division [16]. MNi were partly reincorporated into daughter nuclei after mitosis [17]. If this is the case, there should be significant differences between cells with K+MNi and K−MNi, because K+MNi contain kinetochore structures and K−MNi not. When K+MN-bearing cells enter mitosis, the chromosomes from K+MNi may be indistinguishable from those of the main nucleus and might resume normal biological activity. While K−MN-bearing cells enter mitosis, the chromosomal fragments in K-MNi cannot be caught by spindle microtubules because they do not have functional kinetochores and subsequently fail to be pulled onto the metaphase plate. Chromosomal material from K−MNi may condense into chromosome fragments in meta-anaphase and might reform as K−MNi in daughter cells. In other words, K−MN-bearing cells may produce more chromosome fragments and K−MNi than do MNfree cells during mitosis. K+MN-bearing cells might form more K+LCs and K+MNi during cell division but to a lesser extent, because some of the chromosomes from K+MNi may reincorporate in the main nucleus.

To test this possibility, multi-layer high-resolution imaging was conducted by using HeLa CENP B-GFP H2B-m Cherry cells. The dynamics of mitosis in K+MN- and K−MN-bearing cells were accurately recorded over short intervals during mitosis. The fates of K−MNi and K+MNi in mitosis were investigated by reverse examination of these time-lapse records.

Cell culture

HeLa CENP B-GFP H2B-mCherry dual-colour fluorescent cells were constructed in our laboratory [12] and cultured in DMEM supplemented with 10% foetal calf serum, 1% non-essential amino acids and antibiotics (100 U/mL penicillin and 100 U/mL streptomycin). These regents were purchased from GIBCO. The cell cultures were maintained at 37°C in a humidified atmosphere of 5% CO₂ and 95% air.

Live cell imaging

Live-cell imaging was performed as previously described [12]. HeLa CENP B-GFP H2B-mCherry cells were grown on gridded coverglass bottom dishes (MatTek, Cat.P35G-1.5-7-C-grid) at a density of 2×105cells per dish for 26 h. Images were then automatically acquired at multiple locations on the cover-slip using a Nikon TE2000E inverted microscope fitted with a 60×Nikon Plan Fluor objective, a linearly encoded stage (Proscan, Prior) and a Hamamatsu Orca-ER CCD camera. Fluorescence illumination was implemented using a mercury-arc lamp with two neutral density filters (for a 32-fold reduction in intensity). The microscope was controlled using Simple PCI (Compix) software and housed in a custom-designed 37°C chamber with a secondary internal chamber that delivered humidified 5% CO₂. Fluorescence and differential interference contrast images were obtained every 10 min for 24–48 hrs. Autofocusing was performed every 90 min using the fluorescence channel.

Analysis of the live cell images

The image series were obtained from the live cell imaging experiments and then converted into movies using the Metamorph software (Universal Imaging Corporation, USA). The following criteria were applied to distinguish the abnormal chromosomes and mitoses during the scoring.

MNi: The definition of MNi was the same as described in a previous study [12]. MNi were individually identified in each cell as an extra-nuclear mCherry-positive body with a size less than 1/3rd of the mainnucleus and with similar fluorescence intensity to that of the main nucleus. MNi were identified by H2B-mCherry signals. A K+MN showed a CENP B-GFP signal as well as H2B-mCherry, while a K−MN showed only the H2B-mCherry signal.

Abnormal chromosomes: Chromosomes carry both H2B-mCherry and CENP B-GFP signals in HeLa CENP B-GFP H2B-mCherry cells. Several abnormal chromosomes are defined as following.

Chromosome fragments: Chromosome fragments are kinetochore-negative pieces of chromosomes, which contain only H2BmCherry signals, but no CENP B-GFP.

Kinetochore-positive displaced chromosomes (K+DCs): K+DCs were identified as incorrectly aligned chromosomes that were observed outside of the equatorial plate during metaphase, which carry both H2B-mCherry and CENP B-GFP signals.

Kinetochore-positive Lagging chromosomes (K+LCs): K+LCs were identified as chromosomes that were observed in the mid zone during anaphase in mitosis, which carry both H2B-mCherry and CENP B-GFP signals.

Chromosome bridges (CBs): CBs were abnormal chromosomes that connected the two clusters of segregated chromosomes during anaphase or telophase. CBs were identified using H2B-mCherry signals, regardless of the CENP B-GFP signals.

Bipolar mitoses: Bipolar mitoses indicate those with metaphase equatorial plates oriented in two directions.

Multipolar mitoses: Multipolar mitoses mean those with metaphase equatorial plates oriented in three or more directions.

Statistical analysis: The data were analyzed using the 2×2 chisquare test of Origin Software (OriginLab Corporation). A p-value of less than 0.05 was considered statistically significant, and a p-value of less than 0.001 was considered highly significant.

In the present study, a total of 2,359 HeLa cells were scored by examining long-term real-time images, which included initial MNfree mononuclear cells (MN-free cells, n=556), mononuclear cells each bearing a K−MN (K-MN-bearing cells, n=72) and mononuclear cells each bearing a K+MN (K+MN-bearing cells, n=57) (Figure 1). After these cells entered mitosis, the dynamics of mitosis were recorded and analysed. The polar number of mitosis was compared among three types of cells: MN-free, K−MN-bearing and K+MN-bearing cells. And we investigated the emergence and fate of abnormal chromosomes during mitosis in different type cells.

Figure 1: Representative figures showed a K^-MN and a K⁺MN in HeLa CENP B-GFP H2B-mCherry cells. In the dual-color fluorescent cell line, micronuclei (MNi) were labeled by H2B-mCherry. A K⁺MN carried a CENP B-GFP signal, while K^-MN did not. Selected serial images (including mCherry, GFP and merged images) from time-lapse records show examples of: (A). A representative figure of a K^-MN. An arrow points to a K^-MN carrying the mCherry signal. (B). A representative figure of a K⁺MN. An arrow points to a K+MN carrying both mCherry and GFP signals.

Bipolar and multi-polar mitoses occurred in different type of cells

During the course of time-lapse observation, we found that bipolar and multi-polar mitosis occurred in both MN-bearing and MN-free cells (Supplementary data Figure 1). The overwhelming majority of mitoses were bipolar rather than multi-polar (Figure 2). Bipolar mitosis was predisposed in the three types of cells with similar rates. The bipolar rates for K-MN- and K+MN-bearing cells and MN-free cells were 99.3 ± 0.983%, 99.12 ± 1.24%, 99.64 ± 0.0429%, respectively. The frequencies of multi-polar mitosis in mono-nucleated cells were very low in MNfree cells (0.362 ± 0.0405%) and in K−MN- or K+MN-bearing cells (0.695 ± 0.57% or 0.877 ± 0.655%), while most mitoses in bi-nucleated cells were multi-polar (data not shown). The results suggested that the presence of K−MNi and K+MNi did not increase multi-polar mitosis. K− MN- and K+MN-bearing cells were inclined to bipolar mitosis, as were MN-free cells.

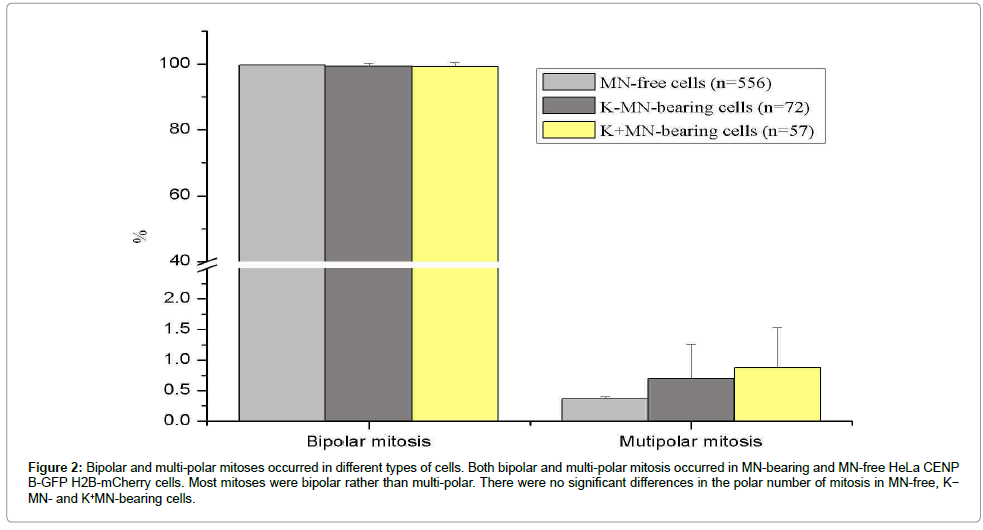

Figure 2: Bipolar and multi-polar mitoses occurred in different types of cells. Both bipolar and multi-polar mitosis occurred in MN-bearing and MN-free HeLa CENP B-GFP H2B-mCherry cells. Most mitoses were bipolar rather than multi-polar. There were no significant differences in the polar number of mitosis in MN-free, K-MN- and K+MN-bearing cells.

Emergence of abnormal chromosomes in different type cells

In this study, the dynamics of abnormal chromosomes were observed through live-cell imaging in HeLa cells. Abnormal chromosomes that emerged during mitosis were classified by CENP B-GFP signals. Chromosomal materials possess H2B-mCherry signals. Chromosome fragments carry only H2B-mCherry signals, but no CENP B-GFP. K+DCs and K+LCs contain both H2B-mCherry and CENP B-GFP signals.

The K-MN-bearing cells produced higher frequencies of chromosome fragments (73.69 ± 14.88%) than did MN-free cells (9.16 ± 2.75%); or K+MN-bearing cells (21.02 ± 0.269%) during mitosis (Figures 3A and 3B and Figure 4A). The K+MN-bearing cells yielded the higher frequency of K+LC (22.63 ± 1.27%) than did MN-free cells (13.1 ± 1.23%) during mitosis (Figures 3C and 4B).

Figure 3: Representative figures of special abnormal chromosomes that frequently emerged during mitoses of K^-MN-bearing and K⁺MN-bearing cells. In the HeLa CENP B-GFP H2B-mCherry cells, selected serial images (including mCherry, GFP and merged images) from time-lapse records show examples of: (A). A K^-MNbearing cell produced a chromosome fragment during metaphase and a K^-MN in a daughter cell. Arrows points to a mother cell, a chromosome fragment and a K^-MN, sequentially. (B). A K^-MN-bearing cell produced a chromosome fragment during anaphase and a K^-MN in a daughter cell. Arrows points to a mother cell, a chromosome fragment and a K^-MN, sequentially. (C). A K⁺MN-bearing cell produced a K⁺LC during anaphase and a K-MN in a daughter cell. Arrows points to a mother cell, a K+LC and a K+MN, sequentially.

Figure 4: Frequencies of abnormal chromosomes were different emerged during mitosis of different HeLa cells. (A) Chromosome fragments produced during mitosis of HeLa CENP B-GFP H2B-mCherry cells. Chromosome fragments carried only H2B-mCherry signals, but no CENP B-GFP. Frequencies of chromosome fragments emerged were different during mitosis of different cells. (B) K+DCs and K+LCs produced during mitosis of HeLa CENP B-GFP H2B-mCherry cells. K+DCs and K+LCs emerged in metaphase and anaphase respectively, and they carried both H2B-mCherry and CENP B-GFP signals. Frequencies of K+DCs and K+LCs emerged were different during mitosis of different cells. (C) Chromosome bridges produced during mitosis of HeLa CENP B-GFP H2B-mCherry cells. CBs were identified using H2B-mCherry signals, regardless of the CENP B-GFP status. Frequencies of CBs emerged were different during mitosis of different cells.

Furthermore, CBs were identified using H2B-mCherry signals, regardless of the CENP B-GFP status. The MN-free cells exhibited a slightly lower frequency of CB (11.51 ± 0.0566%) than did K−MNbearing cells (14.48 ± 1.86%) or K+MN-bearing cells (14.77 ± 9.11%) during mitosis (Figure 4C), but did not reach significance. Different types of cells produced different abnormal chromosomes with different frequencies in mitosis.

Formation of K-MN and K+MN in different cells

The frequency of K-MN formation (73.68 ± 7.45%) during mitosis of K−MN-bearing cells was much higher than that of MN-free cells (14.92 ± 5.27%) or K+MN-bearing cells (22.54 ± 2.41%) (Figure 5). The frequency of K+MN formation in mitosis of K+MN-bearing cells (36.37 ± 4.29%) was significantly higher than that of MN-free cells (16.19 ± 0.94%) or K−MN-bearing cells (21.05 ± 3.72%). Thus, K−MN-bearing cells produced much more K−MNi in daughter cells than did MN-free cells. Similarly, K+MN-bearing cells generated more K+MNi in daughter cells than did MN-free cells, but at a lower frequency.

Figure 5: K^-MNi and K⁺MNi were produced during the mitosis of HeLa CENP B-GFP H2B-mCherry cells. K⁺MNi carried both H2B-mCherry and CENP B-GFP signals. K^-MNi contained only H2B-mCherry signals, but no CENP B-GFP. Frequencies of K-MNi and K+MNi formed were different during mitosis of different cells.

The MN test determines chromosomal level DNA damage and is widely used to biomonitor humans exposed to clastogens and aneugens [1,2]. Elevated frequencies of MNi are also found in patients with cancer and other diseases3, 4. Many inward and outward factors can induce MN formation. Regardless of the origin, MNi are usually stable in cells after formation14. Defects of MN structure affect basic nuclear functions, such as DNA repair and replication, resulting in massive damage in the chromatin of the MN. If MN chromatin is reincorporated in daughter cell nuclei, the damaged MN chromatin might contribute to genome instability. Thus, MNi are not only passive indicators of DNA damage but also active players in the formation of DNA lesions and genome instability [17,18].

In a previous study by our laboratory, the emergence of abnormal nucleic structures was investigated using MN-free HeLa CENP B-GFP H2B-mCherry cells [12]. K−MNi originate mainly from chromosome fragments and CBs. K+MNi derive predominantly from K+DCs, K+LCs and CBs. Several questions remain to be answered, such as: are the processes of MN formation reversible in the next cell division? Can K− MNi transform into chromosome fragments and CB, or K+MNi into K+DC, K+LC and CB, in mitosis?

The frequency of CB was not enhanced in mitosis of K−MN- and K+MN-bearing cells compared to MN-free cells (Figure 5). The data suggested that K−MNi and K+MNi were unlikely transformed into CB in mitosis, although CBs were one of main origins of K−MNi and K+MNi [12,13].

A recent study showed that chromosomes within MNi reincorporated into daughter nuclei at a significant frequency during mitosis [19,20]. In the study, K+MN-bearing cells produced more K+LCs and K+MNs during mitosis than MN-free cells. The results suggested that part of K+MNi may transform into K+LCs and K+MNi. As there are spontaneous K+LCs and K+MNi in mitosis of MN-free HeLa cells, not all K+LCs or K+MNi resulted from K+MNi of mother cells. However, it is not likely that all K+MNi reincorporated into daughter nuclei, for defects of MN structure [20].

In contrast to K+MNi, if chromosomal materials in K−MNi condense into chromosomal fragments during prophase, they are unlikely to return to main nuclei, and frequently evolve into K−MNi in daughter cells. Subsequently, the chromosomes in K+MNi may be able to reincorporate into main nuclei. The cycle of K−MN → Chromosome fragment → K−MN might occur during mitosis.

If this is the case, the more K−MNi cells bear, the more chromosome fragments and K−MNi emerge during mitosis and in daughter cells, respectively. In this study, there were five cells, each of which contained two K−MNi. They produced eight chromosome fragments and transformed into seven K−MNi in six daughter cells (data not shown). In the present study, there were four cells which each carried both a K−MN and a K+MN; these produced four chromosome fragments and one K+LC in mitosis, which further evolved into four K−MNi and one K+MN in daughter cells (data not shown). These results show different fates between K−MN and K+MN in the same cell and kinetochores determine the fates of MNi.

Previous research indicated that the presence of micronuclei did not result in multi-polar mitosis [14]. We further observed that K−MNi or K+MNi did not increase multi-polar mitosis. The overwhelming majority of mitoses of K−MN-bearing and K+MN-bearing cells were bipolar, which was similar to MN-free cells.

This study aimed to investigate the differences in the fates of K−MNi and K+MNi in mitosis. The results can be briefly summarized in the following points.

First, the presence of K−MNi and K+MNi did not result in multipolar mitosis. There were no differences in the polar number of mitosis in K− MN-bearing and K+MN-bearing cells. The overwhelming majority of mitoses were bipolar in both K−MN-bearing and K+MN-bearing cells. Similar results were found in MN-free cells.

Second, there are different fates between K−MNi and K+MNi in mitosis. There were obvious differences in the production of abnormal chromosomes and MNi during mitosis in K−MN-bearing and K+MN-bearing cells. The K−MN-bearing cells produced much more chromosome fragments and K−MNi during mitosis than did MNfree cells. However, the K+MN-bearing cells formed more K+LCs and K+MNi than did MN-free cells. The chromosomes in K+MNi might reincorporate into the main nucleus, while K−MNi may be involved in the cycle of K−MN→ chromosome fragment → K−MN.
