Research Article - (2015) Volume 6, Issue 2

New Method for Isolation of Plant Probiotic Fluorescent Pseudomonad and Characterization for 2,4-Diacetylphluoroglucinol Production under Different Carbon Sources and Phosphate Levels

Sumant Chaubey, Malini Kotak and Archana G*
Department of Microbiology & Biotechnology Centre, Faculty of Science, The Maharaja Sayajirao University of Baroda, Vadodara-390 002, Gujarat, India
*Corresponding Author: Archana G, Department of Microbiology and Biotechnology Centre, Faculty of Science, The Maharaja Sayajirao University of Baroda, Vadodara-390 002, Gujarat, India, Tel: 0091-265-2794396, Fax: 0091- 265-2792508 Email:

Abstract

Aims: Present work describes the new enrichment method for the isolation of effective root colonizing and rhizospheric competent strains of genus fluorescent Pseudomonad and study of metabolic regulation of 2,4-DAPG biosynthesis in them under carbon sources and Pi levels.

Methods and Results: Three rounds of plant assay was performed using root tip attached microorganism mixtures for the next round of root treatment followed by phonotypical separation of fluorescent colonies to isolate fluorescent pseudomonad strains from different crop and vegetables rhizospheres. Isolated strains were characterized for their Plant Growth Promoting Rhizobacteria (PGPR) traits viz phosphate solubilisation, production of siderophore, IAA, HCN, 1-aminocyclopropane-1-carboxylate /L-methionine utilization pathway and antifungal metabolites production. Isolated strains have shown high 2,4-diacetylphluoroglucinol production and strain G2 has shown 4.6 fold high production than Pf CHA0.

Conclusions: Strain G1 and G8 supported 2,4-DAPG production under sucrose and found to be suitable biocontrol for sucrose rich rhizosphere. Strain G1 and G2 showed good 2,4-DAPG production at high Pi and will perform well in phosphate fertilizer supplemented soils.

Significance of Study: Identification of factors favorable for bio-control will facilitate the targeted application of specific strains to plant rhizosphere/soil type/fertilizer supplemented suitable to their biocontrol activity i.e. “prescription” controls.

Keywords: Fluorescent pseudomonad; PGPR traits; PhlD; 2,4- DAPG; Carbon sources; Pi

Introduction

Fluorescent pseudomonad represents a major group of the plant beneficial rhizobacteria present in various crop rhizospheres [1-3]. Fluorescent Pseudomonas sp. control plant diseases by antibiosis [4-6] competition for niches and nutrients i.e. effective root colonization [7]. Competitive root tip colonization by Pseudomonas strains can play an important role in the efficient control of soil borne crop diseases caused by fungi [8-10]. Three major types of molecules found to be involved in the antagonism towards soil borne fungal pathogens: siderophores, antibiotics and HCN [11-13]. Among the antibiotics the polyketide- 2,4-diacetylphloroglucinol (2,4-DAPG) has Received particular attention because of its broad-spectrum antifungal, antibacterial and antihelminthic activity [6,12,14,15]. P. fluorescens CHA0 isolated from a Swiss soil naturally suppressive to black root rot of tobacco caused by Chalara elegans (synanamorph Thielaviopsis basicola,). Pf CHA0 reduces the extent of disease caused by several root-pathogenic fungi such as Thielaviopsis basicola, Gaeumannomyces graminis var. tritici (Ggt), Pythium ultimum, Rhizoctonia solani, and Fusarium oxysporum [16]. In many of these studies, production of 2,4-DAPG has emerged to be a key factor in the biological control activity of Pf CHA0 [17]. Pf CHA0 has been used as a model organism to identify biosynthetic genes of HCN and 2,4-DAPG and to study their regulation [16,17].

Certain plant growth promoting rhizobacteria (PGPR) contain the enzyme ACC deaminase to lower endogenous levels of ethylene by hydrolyzing ACC into α-ketobutyrate and ammonia, which affects plant growth [18], while majority of soil microorganisms produce ethylene from methionine (L-MET) via the 2-keto-4-methlythiobutyric acid (KMBA) pathway. Methionine is deaminated to produce 2-keto- 4-methlythiobutyric acid (KMBA), which is then oxidized to produce ethylene by Escherichia, Pseudomonas, Bacillus, Acinetobacter, Aeromonas, Rhizobium, and Corynebacterium species [19]. Some bacterial strains have either ACC deaminase activity (Pseuodomonas Putida biotype A, A7), or the ability to produce ethylene from L-MET (Acinetobacter calcoaceticus, M9) or both (Pseudomonas fluorescens, AM3) [18].

¨Sugars constitute a major component in root exudates and a very labile source of carbon for microorganisms [20]. Jaeger et al. [21] has reported that sucrose availability was highest at the tip section of the grass root and decreased in progressively older sections. Effective root colonizer and plant growth promoting strains of fluorescent pseudomonas have isolated worldwide and it was found to be a time consuming isolation method. Method of isolation can be made easy by the enrichment of effective root colonizers and plant growth promoting fluorescent pseudomonad using specific enriching conditions. Kuiper et al. [22] described a method to select enhanced grass root tip colonizing bacteria. In this method a mixture of rhizosphere bacteria is applied on a sterile seedling. After plant growth in a gnotobiotic system

those bacteria that have reached the root tip are isolated. These are subsequently used to inoculate a fresh sterile seedling, which again is allowed to grow [23]. After three of these enrichment cycles, excellent competitive root tip colonizers were obtained [15]. Kamilova et al. [15] used this method to select enhanced tomato root tip colonizers. To our knowledge, no procedures have been described, which facilitate the selection of effective root colonizing and plant beneficial fluorescent pseudomonad.

2,4-DAPG producing pseudomonad are commonly found in the rhizosphere of important crops such as cucumber, maize, pea, tobacco, tomato, and wheat and protect from severe phytopathogens [3,9,19,22,24-26]. In the fungus Pythium ultimatum var. sporangiiferum, 2,4-DAPG causes alterations of the plasma membrane, vacuolization, and the disintegration of cell contents [24], suggesting that it impedes the maintenance of membrane integrity. In bacteria, 2,4-DAPG may cause lysis by a novel antibiotic mechanism. For instance, methicillinresistant Staphylococcus aureus will lyse within 2 h of exposure to 5 μM 2,4-DAPG[27], whereas Vibrio parahaemolyticus lyses more slowly and in response to higher 2,4-DAPG concentrations of 114 μM [28]. The biosynthetic locus for 2,4-DAPG includes phlA, phlC, phlB, and phlD, which are transcribed as an operon from a promoter upstream of phlA [29]. PhlD is responsible for the production of monoacetylphloroglucinol (MAPG), and PhlA, PhlC, and PhlB are necessary to convert MAPG to 2,4-DAPG. PhlD is especially interesting because of its homology to members of the highly conserved chalcone and stilbene synthase family of plant enzymes, which is suggestive of a common evolutionary origin [29]. Probes and primers specific for sequences in phlD have been used in combination with colony hybridization and polymerase chain reaction (PCR) to quantify population sizes of 2,4-DAPG producers in the rhizosphere environment [1,14,21,30].

Important obstacle to commercial application of efficient 2,4- DAPG producers is the inconsistency of their performance [31]. Although its ability to reduce the severity of diseases caused by soil borne fungal pathogens under laboratory conditions has been reported in several studies, inconsistent performance in commercial settings and field trials tends to be disappointing [25]. Understanding the sources of variability is key to overcoming this obstacle. Because a primary mechanism of disease suppression available to fluorescent pseudomonad is antibiosis [25], it is thought that variable performance might result from variation in production of antimicrobial compounds like 2,4-DAPG production. Variable performance might be because of variability in 2,4-DAPG production due to variations in environmental conditions, abiotic and biotic, that might confront bacterial metabolite production in the rhizosphere. Inorganic phosphate inhibited PHL production in different ARDRA groups of fluorescent pseudomonad to various degrees in the study by Duffy and Defago, 1999. PHL production by CHA0 was almost abolished by 10 mM phosphate, whereas 100 mM phosphate reduced production by Q2-87 by only 10-fold and no strain was insensitive to 100 mM phosphate [31]. Glucose but not glycerol enhanced 2,4-DAPG production in P. fluorescens Pf-5 and CHA0 [31], whereas in P. fluorescens F113 production of 2,4-DAPG and MAPG is stimulated by sucrose and Fe3+ ions but is poor in the presence of succinate [31]. Thus, much information about the mechanism and factors affecting the action of 2,4-DAPG are available, but a more insight is needed about the ecological interactions taking place in the soil and root environments, which might influence production of 2,4- DAPG [13,17]. This will help to customize the biocontrol strains for use in particular environments, we can understand how to prepare the inoculum for optimal performance, the environment can be modified to be more favourable to strains, or strains could be constructed that are independent of environmental signals.

We have screened the enhanced root tip colonizers and plant growth promoting strain of fluorescent Pseudomonas and checked for their ability to control the disease caused by phytopathogen Rhizoctonia bataticola. In the present study, Pf CHA0 was used as a model organism. This study deals with isolation of rhizospheric fluorescent pseudomonad from various plants and ecologically diverse locations, characterization of their plant growth promoting traits and detail study on 2,4-Diacetyl phloroglucinol production in the isolates.

Materials and Methods

Isolation of efficient root colonizing and plant growth promoting fluorescent pseudomonad

Seed sterilization: Equal size Vigna radiata seeds were thoroughly washed with sterile distilled water. Seed were further treated with 1% HgCl2 (For 2 minute) followed treatment of 70% ethanol (For 2 minute). Final wash of sterile distilled water to remove traces of HgCl2 and seeds were transferred to sterile petri plates containing wet filter paper. Sterile seeds on soaked filter paper were incubated 30 ± 2°C and kept in dark. Seeds were allowed to germinated up to radicle size of 1 cm.

Enrichment method for isolation of fluorescent pseudomonad: Isolation of fluorescent pseudomonad involved the three successive round of plant inoculation. Root samples of were washed with distill water for two to three times to remove all the superficially attached bacteria. The suspensions of tightly attached bacteria were prepared in sterile 0.85% saline after vigorously vertex of root tip samples in 20 ml saline sample for nearly 30 minutes. In the method, a mixture of rhizospheric bacteria was applied on a germinated seedling and incubated for 1 hour and inoculated in Murashige and Skoog media containing 0.8% agar-agar as solidifying agent. The germinated Vigna radiata seedlings were allowed to grow at 30°C under maintained lightdark period. After 7 day, the plants growth was monitored in term of shoot and root weight. Plants showing the enhanced growth compare to uninoculated and/or Pf CHA0 were selected out for further study. The roots were washed twice with sterile distill water so that only those bacteria that have colonized efficiently remain attached. One cm of root tips were sliced from main and lateral roots to resuspended in 1.5 ml of 0.85% sterile saline and vortex vigorously for 30 minutes. Serial dilutions was performed and dilutions were spreaded evenly on the King′s B Agar Medium (KMB). Plates were incubated at 30°C for 24 hours and were observed for the fluorescent colonies as fluorescent pseudomonad produces water soluble green fluorescence pigment when subjected to UV exposure. Screening of microorganisms was done on the basis of fluorescence of the colony. Whole zone/patches of fluorescent colonies was collected by wire loop and resuspended in 1.5 ml of 0.85% sterile saline and vortexes for making it uniform suspension. The suspensions of fluorescent colonies were used to inoculate sterile germinated seedlings and repeated for two more cycles of plant inoculation study. Fluorescent bacteria were purified by repeated streaking on KMB plates and were believed to be good plant growth promoting and root colonizing bacteria.

Identification bacterial cultures by biochemical methods: For the identification of fluorescent pseudomonad biochemical test like catalase test, oxidase Test, Hugh-Leifson′s Oxidation-Fermentation test, Gram staining and arginine dihydrolase test was performed using protocol as described in Bergey′s manual.

Identification bacterial cultures by molecular methods: Modified CTAB method was used for the extraction of genomic DNA. 1.5 ml of overnight grown cultures was centrifuged at 10,000 rpm for 5 minutes at 4°C. The supernatant was drained off and the pellet was resuspended in 200 μl of T. E. Pellet was vortexed vigorously to resuspend the pellet and then was kept at 60°C for 30 minute. 100 μl of 3M NaCl was added to it followed by 80 μl of 10% CTAB. It was mixed properly and then again kept at 60°C for 10 minutes. Equal volume of phenolcholorform- isoamyl alcohol (25:24:1) was added and centrifuged at 10, 000 rpm for 12 minutes at 4°C. Aqueous phase was collected and 2-3 volume of chilled 100% ethanol was added and kept for 1 hour. Further it was centrifuged at 10,000 for 10 minutes at 4°C and supernatant was drained off and the pellet was again washed with 70% ethanol. The ethanol was allowed to evaporate and dried DNA was resuspended in sterile distilled water.

Identification of fluorescent pseudomonad by molecular method involved the amplification of region including the 3' half of the 16S rDNA with the whole 16S-23S rRNA Internal Transcripted Spacer (ITS) sequence using specific primers [11]. Primer sequences ITS1F-5’-AAGTCGTA ACA AG GTAG-3’ and ITS2R-5’- GACCATATATAACCCCAAG-3’ was used to get amplicon size of 560 bp.

PGPR traits of fluorescent Pseudomonas strains

Phosphate solubilization: Phosphate solubilization ability was checked on Pikovaskya′s agar medium (Hi–Media Ltd., India) which contain insoluble dicalcium phosphate. Overnight grown cultures in 1.5 ml centrifuge tube and with equalized OD600 nm. One loopful of each strain was spotted on Pikovaskya′s agar medium and incubated at 30°C for 24 hour and was observed for zone of clearance/colony size.

Antifungal activity: Antifungal activity was checked on potato dextrose agar (Hi–Media Ltd.). Fluorescent Pseudomonas strains were grown in King’s B broth for 24 hrs. Overnight grown cultures in 1.5 ml centrifuge tube and with equalized OD600 nm were centrifuged at 6,000 rpm for 5 minute and further washed with normal saline (0.80% NaCl).50 μl of concentrated pellet were inoculated on the four corners of the plate and R. bataticola inoculated at the centre of potato dextrose agar plate. The inhibition of R. bataticola was observed after 48-72 hours of growth. Percentage fungal inhibition was calculated by the formula. Percentage inhibition=(Radial growth of fungus in absence of inoculants) – (Radial growth of fungus in presence of inoculants/ (Radial growth of fungus in absence of inoculants) × 100.

Siderophore production: For detection of siderophores, overnight grown culture washed with saline and spotted on the Chrome Azurol-S (CAS) agar plates and observed for the colour change from greenishblue to yellowish orange halo around culture pellet [4]. The halo due to chelation of Fe2+from the CAS-Fe2+ conjugate and the diameter of halo zone/colony size was calculated which indirectly represent the ability of siderophore production by isolates. The siderophore production of isolates was compared to the bio-control and siderophore producing standard strain Pf CHA0.

HCN production: HCN production by isolates was checked by method of Bakker and Schipper, 1987 on Kings B Medium. King’s B agar amended with 4.4 g/l glycine is used in HCN estimation single isolates were streaked in each plate. Whatman no. 1 filter paper disc (9 cm in diameter) was soaked in 0.5% Picric acid in 2% sodium carbonate. Soaked disc was placed in the lid of each petriplate. Petriplates were sealed with parafilm and incubated at 30°C for 4 days. An uninoculated medium with the soaked filter paper was kept as control for comparison of results.

IAA estimation: IAA estimation was done using Salkowsky method. Overnight grown 100 μl culture was inoculated in 2 ml minimal media amended with 50 μg/ml tryptophan. Incubated at shaking condition for 48 hours at 30°C at 200 rpm. Grown culture was centrifuged at 10, 000 g for 15 minutes, 1 ml of supernatant was taken fresh tube and 2 to 3 drops of ortho-phosphoric acid added to the supernatant followed by addition of 2 ml of reagent (1 ml of 0.5 M FeCl3 in 50 ml of 35% HClO4). Samples were incubated for 25 minutes and absorbance was measured at 530 nm. Concentration of IAA was measured against standard graph plot of pure IAA (Hi-media, India) at the range of 10-100 μg/ ml

Characterization for ACC deaminase/ KMBA pathway: Plate technique using salt minimal medium containing ACC as sole nitrogen source (enrichment technique) was used to characterize the strains for ACC deaminase activity. The composition of salt minimal media containing ACC as sole nitrogen source in g L-1 is as follows, KH2PO4, 1.36; Na2HPO4, 2.13; MgSO4.7H2O, 0.2; CaCl2.2H2O, 0.7; FeSO4.7H2O, 0.2; CuSO4.5H2O, 0.04; MnSO4.H2O, 0.02; ZnSO4.7H2O, 0.02; H3BO3, 0.003; CoCl2.6H2O, 0.007; Na2MoO4.2H2O, 0.004; Substrate ACC, 5 mM; Glucose, 1.0% dissolved in 1000 ml of distilled water.

The presence of KMBA was determined by precipitation with 2,4-dinitrophenylhydrazine according to Primrose [32]. The culture medium was separated and 0.1 ml of 0.1% 2,4-dinitrophenylhydrazine in 2 M HCl was added to 1 ml of culture filtrate and vortexes at room temperature in darkness. Presence of KMBA was confirmed by formation of a yellow precipitate after 30 min.

Effect of nutritional factors on 2,4-DAPG biosynthesis by fluorescent pseudomonad

Quantification of 2,4-DAPG biosynthesis: Each strain was grown in 1/5 diluted 20 ml King′s B medium at shaking condition at 130 rpm at 26°C for 72 hours. Culture supernatant was acidified by addition of 1N HCl to make pH equal to 2. 10 ml ethyl acetate was added to supernatant and vigorously vortex for 2 minute and allowed to separate in two layers. Upper ethyl acetate phase was extracted and was allowed to evaporate and antibiotic preparation was dissolved in 1 ml methanol and stored in -20°C for Bioassay for 2,4-DAPG was performed using methicillin resistant Staphylococcus aureus 6538 as a sensitive strain and phytopathogen R. bataticola. HPLC analysis. A mixture of 30% ACN: 25% Methanol: 45% MQ water was used as mobile phase using C18 reverse phase column (250 x 4.6 mm) and flow rate at 1.0 ml/min at wavelength 272 nm. 2,4-DAPG was quantified using the standard plot of peak area and concentration (10-100 μg/ml).

Effect of carbon sources and Pi level on 2,4-DAPG biosynthesis: Each strain was grown in 1/5 diluted 20 ml King′s B medium with the supplementation of phosphate to the final concentrations of 0, 8, 12, 17, 50 and 100 mM. Each strain was grown for 72 hours and OD was observed at 600 nm to monitor cell growth. Ethyl acetate extraction and HPLC for 2,4-DAPG was carried out in similar manner as discussed earlier.

Each strain was inoculated in King′s B broth (without glycerol) and supplementation of 1% carbon sources: glucose, sucrose, fructose, mannitol and arabinose. Each strain was grown for 72 hours and OD was observed at 600 nm to monitor cell growth. Ethyl acetate extraction and HPLC for 2,4-DAPG was carried out in the similar manner as discussed earlier.

Plant inoculation study

The seed sterilization and germination was done as described earlier. The germinated seedlings were incubated for 45 minutes in 1.5 ml of overnight grown cultures. Germinated seedlings were inoculated in Murashige and Skoog media supplemented with 0.8% agar as solidifying agent. Plants were allowed to grow for 10 days. At the end of 10 day roots and shoot weight was measured.

Results

Isolation and characterization of fluorescent Pseudomonas strains

The mixtures of rhizosphere bacteria from cotton, sugarcane, groundnut, brinjal, rice, banana and tobacco rhizospheres used to inoculate seedlings of the Vigna radiata and enhanced competitive root tip colonizers were enriched as described in the material and methods (Figure 1). At the end of each cycle the colony diversity in terms of morphology, colour and opacity get decreased and the number of fluorescent colony get increased. After the third cycle of enrichment, 12 fluorescent colonies were selected and checked by fluorescent pseudomonad specific biochemical tests and PCR based method (Table 1). Four newly isolated strains G1, G2, G8 and C2 appeared positive for fluorescent pseudomonad specific biochemical (catalase, oxidase, oxidative/fermentative and arginine dihydrolase test) and molecular identification methods (ITS amplification). All strains were gram negative and rod shaped and has showed amplification of 560 bp using fluorescent pseudomonad specific ITS primers (Figure 2).

    Pf CHA0 G1 G2 G8 C2
Biochemical methods Catalase + + + + +
Oxidase + + + + +
Hugh-Leifson¢s Oxidation/fermentation test Oxd Oxd Oxd Oxd Oxd
Arginine Dihydrolase + + + + +
Gram nature -ve -ve -ve -ve -ve
Morphology Cell shape Rod rod rod rod rod
Molecular method ITS(560bp)Amplification + + + + +

Table 1: Identification of fluorescent pseudomonad by biochemical and molecular methods.

plant-pathology-microbiology-effective-root-colonizing

Figure 1: Enrichment method for effective root colonizing strains of fluorescent Pseudomonas.

plant-pathology-microbiology-Fluorescent-Pseudomonas

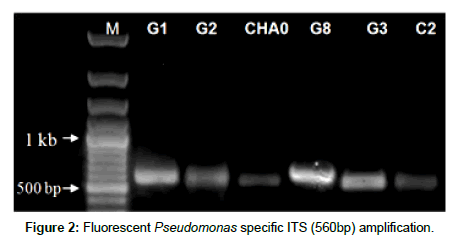

Figure 2: Fluorescent Pseudomonas specific ITS (560bp) amplification.

PGPR traits of fluorescent Pseudomonas strains

Strain G1, G8 and C2 has shown higher IAA production than Pf CHA0. Strain G1, G2, G8, C2 and Pf CHA0 did not showed growth on minimal medium containing ACC as sole nitrogen source but showed growth on L-methionine. Further confirmation for the presence of KMBA pathway in the strains were done by the analysis of precipitate after addition of 2,4-dinitrophenyl hydrazine to the culture supernatant (Figure 3).

plant-pathology-microbiology-fluorescent-Pseudomonas

Figure 3: Characterization for KMBA pathway in fluorescent Pseudomonas strains (a) Uninoculated (b) G1 (c) G2 (d) G8 (e) C2 and (f) Pf CHA0.

All strains showed higher phosphate solubilization than Pf CHA0. Strain C2 showed higher siderophore production than Pf CHA0 while other strains showed siderophore production similar to Pf CHA0. Strain G2, G8 and C2 have shown higher antifungal activity than model bio-control strain Pf CHA0. Except C2, strain G1, G2 and G8 showed HCN biosynthesis ability similar to Pf CHA0.

Effect of nutritional factors on 2,4-DAPG biosynthesis by fluorescent pseudomonad

Amplification of PhlD and biosynthesis of 2,4-DAPG: All selected strain has shown amplification of phl D of 726bp (Figure 4) as previously reported by Raaijmakers, et al. [33]. 2,4-DAPG production by G1, G2, G8 and C2 was significantly high than Pf CHA0 (Table 1) and correlated well with bioassay against S. aureus and R. bataticola (Table 2 and Figure 5).

PGPR Traits   Pf CHA0 G1 G2 G8 C2
Phytostimulation IAA production(ug/ml) 11 ± 1.2 20 ± 0.53 9.3 ± 0.74 14.8 ± 0.75 22 ± 0.73
Growth on ACC(Sole N-source) - - - - -
Growth onL-methionine(Sole N-source) ++ ++ +++ ++ +++
  KMBA pathway + + + + +
Mineralization P-Solubilisation(Cz/Cs) 1.3 1.9 2.1 1.8 1.5
Siderophoreactivity(Cz/Cs) 2 1.8 1.7 2 3
Antibiosis Fungal Inhibition(%) 38.4 38.4 50 57.6 41.6
  HCN production +++ ++++ ++++ ++++ -
  2,4-DAPGproduction(ng/ml) 740 ± 9.21 2340± 87 3350 ±117.5 965 ± 10.27 995 ±25.13
  BactericidalagainstS.aureus +++ ++++ +++++ +++ +++
  Bactericidal
againstS.aureus
+++ ++++ +++++ +++ +++

Table 2: PGPR traits of fluorescent Pseudomonas strains.

plant-pathology-microbiology-Pseudomonas-strains

Figure 4: Amplification of phlD (726bp) in fluorescent Pseudomonas strains 1.G1 2. Pf CHA0 3. 100bp Ladder 4. G2 5. G8 6. C2.

plant-pathology-microbiology-Inhibition-bataticola

Figure 5: Inhibition of S. aureus by 2,4-DAPG extract of (a) Methanol (b) Pf CHA0 (c) G1(d) G2 and (e) Inhibition of R. bataticola.

Effect of carbon sources and Pi level on 2,4-DAPG biosynthesis: Strain G8 has shown remarkably high 2,4-DAPG production in sucrose (Table 3) so G8 could be considered physiology different than other strain including Pf CHA0(Figure 6). Strain G1 has also shown good production in sucrose in compare to Pf CHA0 so it is close to G8 in the dendogram (Figure 6). Strain G2 has shown good 2,4-DAPG production in presence of glucose as in case of Pf CHA0 so it is more close to Pf CHAO (Figure 6). Differential bio-control physiology among G1, G2, G8 and C2 was clearly evident after different response of carbon sources (Glucose, Fructose, Sucrose, Arabinose and Mannitol) on 2,4-DAPG production (Table 3 and Figure 6). The effect of other carbon sources was not much significant and conclusive (Table 3).

  CHA0(ng/ml) G1(ng/ml) G2(ng/ml) G8(ng/ml) C2(ng/ml)
Glucose 859.5 ± 34.95 141±5.05 545±43.5 157.5±17.82 106.5±7.63
Sucrose 203±11.1 572.5± 66.4 84±5.75 1328±28.67 162.2±4.2
Mannitol 337±16.85 239±14.95 229±6.32 160.5±21.95 320±8.59
Arabinose 215±4.12 141±15.97 166±14.3 82.5±7.89 233.5±8.67

Table 3: 2,4-DAPG production by fluorescent Pseudomonas strains under different carbon sources.

plant-pathology-microbiology-production-under

Figure 6: Relatedness based on 2,4-DAPG production under different C-sources.

plant-pathology-microbiology-production-fluorescent

Figure 7: 2,4-DAPG production by fluorescent Pseudomonas at different Pi level.

As reported previously that inorganic phosphate represses the 2,4-DAPG production and in case of Pf CHA0 it get repressed at 10 mM inorganic phosphate level. However strain G2 has resisted the inhibitory effect of Pi on 2,4-DAPG production and has shown good production up to 50 mM supplemented Pi, G1 has shown constant 2,4- DAPG production up to 50 mM (Figure 7). G2, C2, M3 and G8 have shown very much positive effect on plant growth similar to Pf CHA0 (Figures 8 and 9).

plant-pathology-microbiology-growth-promoting

Figure 8: Plant growth promoting effect of isolates growth promoting effect of isolates.

plant-pathology-microbiology-root-weight

Figure 9: Effect of fluorescent Pseudomonas strains on shoot/root weight.

Discussions

Enrichment method developed in present work was the modification of method invented by Kamilova et al. [15] but in such way that it has yielded only plant beneficial, root colonizing fluorescent pseudomonad. Fluorescent pseudomonads strain G1, G2, G8 and C2 showed the presence of specific biochemical enzymes/pathway (arginine dihydrolase, catalase, oxidase, oxidative respiration) and further confirmed by the Internal Transcripted Spacer (ITS) rRNA coding sequence using specific primers as used by Locatelli et al. [22] which was considered to be more effective rather than the identification by 16S rDNA sequencing. These strains have proved to be efficient PGPR strains as they possess the high IAA production , phosphate solubilization, siderophore production and antifungal activity than model bio-control and PGPR strain Pf CHA0. The utilization of L-methionine as a nitrogen source by these strains confirms the presence of KMBA pathway. G1, G2 and G8 showed HCN biosynthesis which has been reported to be effective mechanism of bio-control by fluorescent pseudomonad [20]. Strain G1, G2, G8 and C2 have shown high 2,4-DAPG production and correlated well with bioassay against S. aureus and R. bataticola.

Quantitative and qualitative differences in the sugar composition of root exudates determine the bio-control mechanism by fluorescent pseudomonad strains in given crop-pathogen systems [8,24]. As earlier reports says that glucose but not glycerol and sucrose has enhanced 2,4- DAPG production in P. fluorescens Pf-5, Pf CHA0 and other fluorescent Pseudomonas strains whereas in Pf f113 production of 2,4-DAPG is stimulated by sucrose. Strain G1 and G8 has shown remarkably high 2,4-DAPG production in sucrose so G8 could be considered physiology different than other strain including Pf CHA0. Strain G2 has shown good 2,4-DAPG production in presence of glucose similar to Pf CHA0. Strain G8 and G1 could be considered as good bio-control strain for the sucrose sufficient plant rhizosphere. Strain G2 and G1 could do good bio-control activity even in phosphate rich soil. As reported previously that inorganic phosphate represses the 2,4-DAPG production and in case of Pf CHA0 it get repressed at 10 mM inorganic phosphate level. However strain G2 has resisted the inhibitory effect of Pi on 2,4-DAPG production and has shown good production up to 50 mM supplemented Pi. Differential influence of carbon and mineral sources on 2,4-DAPG production was suggested due to various degrees of adaptation of strains to given rhizospheric nutrient composition.

Acknowledgements

Authors express a gratefully acknowledgement to University Grant Commission for providing Research Fellowship for Meritorious Student (UGC-RFMS) and Gujarat State Biotech Mission (GSBTM), India, for the financial support.

References

  1. Haas D, Defago G (2005) Biological control of soil-borne pathogens by fluorescent pseudomonads. Nat Rev Microbiol 3: 307-319.
  2. Ojiambo PS, Scherm H (2006) Biological and application-oriented factors influencing plant disease suppression by biological control: a meta-analytical review. Phytopathology 96: 1168-1174.
  3. Schippers B, Bakker AW, Bakker PAHM (1987) Interactions of deleterious and benificialrhizosphere microorganisms and the effect of cropping practices. Annu. Rev Phytopathol 25: 339-358.
  4. Lugtenberg BJJ, de Weger LA, Bennett JW (1991) Microbial stimulation of plant growth and protection from disease. CurrOpinBiotechnol 2: 457-464.
  5. Thomashow LS, Weller DM (1995) Current concepts in the use of introduced bacteria for biological disease control: Mechanisms and antifungal metabolites. In: Stacey G, Keen NT (eds) Plant-Microbe Interactions, vol. 1. Chapman & Hall, New York, USA, pp. 187-235.
  6. Vassilev N, Vassileva M, Nikolaeva I (2006) Simultaneous P-solubilizing and biocontrol activity of microorganisms: potentials and future trends. ApplMicrobiolBiotechnol 71: 137-144.
  7. Bolwerk A, Lagopodi AL, Wijfjes AH, Lamers GE, Chin-A-Woeng TF, et al. (2003) Interactions in the tomato rhizosphere of twoPseudomonasbiocontrol strains with the phytopathgenic fungus Fusariumoxysporum f. sp. radicis-lycopersici. Mol Plant Microbe Interact 16: 983-993.
  8. Lemanceau P, Corberand T, Gardan L, Latour X, Laguerre G, et al. (1995) Effect of two plant species flax (Linumusitatissinum L.) and tomato (Lycopersiconesculentum Mill.) of the diversity of soilborne populations of fluorescent pseudomonads. Appl Environ Microbiol 61: 1004 -1012.
  9. Ramette A, Moenne-Loccoz Y, Defago G (2003) Prevalence of fluorescent pseudomonads producing antifungal phloroglucinols and/or hydrogen cyanide in soils naturally suppressive or conducive to tobacco black root rot. FEMS MicrobiolEcol 44: 35-43.
  10. Shahnahan P, O Sullivan DJ, O Gara F (1992) Isolation of 2,4- Diacetylphoroglucinol from a Fluorescent Pseudomonas and investigating physiological factors influencing its production. Appl Environ Microbiol 58: 353-38.
  11. Locatelli L, Tarnawski S, Hamelin J, Rossi P, Aragno M, et al. (2002) Specific PCR amplification for the genus Pseudomonas targeting the 3' half of 16S rDNA and the whole 16S-23S rDNA spacer. SystApplMicrobiol 25: 220-227.
  12. O'Connell KP, Goodman RM, Handelsman J (1996) Engineering the rhizosphere: expressing a bias. Trends Biotechnol 14: 83-88.
  13. Schroth MN, Hancock JG (1982) Disease-suppressive soil and root-colonizing bacteria. Science 216: 1376-1381.
  14. Haas D, Keel C (2003) Regulation of antibiotic production in root-colonizing Peudomonas spp. and relevance for biological control of plant disease. Annu Rev Phytopathol 41: 117-153.
  15. Kamilova F, Validov S, Azarova T, Mulders I, Lugtenberg B (2005) Enrichment for enhanced competitive plant root tip colonizers selects for a new class of biocontrol bacteria. Environ Microbiol 7: 1809-1817.
  16. Haas D, Keel C, Laville J, Maurhofer M, Oberhansli T, et al. (1991) Secondary metabolites of Pseudomonas fluorescens strain CHA0 involved in the suppression of root diseases. Advances in Molecular Genetics of plant- Microbe interactions 1: 450-556
  17. Keel C, Défago G(1997) Interactions between beneficial soil bacteria and root pathogens: mechanisms and ecological impact,In:GangeAC, Brown VK (ed.), Multitrophic interactions in terrestrial systems. Blackwell Science, London, England. p. 27-46.
  18. Shaharoona B, Arshad M, Khalid A (2007) Differential response of etiolated pea seedlings to inoculation with rhizobacteria capable of utilizing 1-aminocyclopropane-1-carboxylate or L-methionine. J Microbiol 45: 15-20.
  19. Picard C, Di Cello F, Ventura M, Fani R, Guckert A (2000) Frequency and biodiversity of 2,4-diacetylphloroglucinol-producing bacteria isolated from the maize rhizosphere at different stages of plant growth. Appl Environ Microbiol 66: 948-955.
  20. Juma NG, McGill WB (1986) Decomposition and nutrient cycling in agro-ecosystems. In: Mitchell MJ, NakasJP (eds) Microfloral and faunal interactions in natural and agro-ecosystems. Martinus-Nijhoff/DR W. Junk Publishers, Boston, Mass, p. 74-137.
  21. Jaeger CH 3rd, Lindow SE, Miller W, Clark E, Firestone MK (1999) Mapping of sugar and amino acid availability in soil around roots with bacterial sensors of sucrose and tryptophan Appl Environ Microbiol 65: 2685-2690.
  22. Kuiper I, Bloemberg GV, Noreen S, Thomas-Oates JE, LugtenbergBJJ(2001) Increased uptake of putrescine in the rhizosphere inhibits competitive root colonization by Pseudomonas fluorescens strain WCS365. Mol Plant-Microbe Interact 14:1096-1104.
  23. Nielsen TH, Sørensen D, Tobiasen C, Andersen JB, Christophersen C, et al. (2002) Antibiotic and biosurfactant properties of cyclic lipopeptides produced by fluorescent Pseudomonas spp. from the sugar beet rhizosphere. Appl Environ Microbiol 68: 3416-3423.
  24. De Souza JT, Weller DM, Raaijmakers JM (2003) Frequency, Diversity, and Activity of 2,4-Diacetylphloroglucinol-Producing Fluorescent Pseudomonas spp. in Dutch Take-all Decline Soils. Phytopathology 93: 54-63.
  25. Keel C, Schnider U, Maurhofer M, Voisard C, Laville J, et al. (1992) Suppression of root diseases by Pseudomonas fluorescens Pseudomonas fluorescens CHA0: importance of the bacterial secondary metabolite 2,4-diacetylphloroglucinol. Mol Plant-Microbe Interact 5:4-13.
  26. Primrose SB, Dilworth MJ (1976) Ethylene production by bacteria. J Gen Microbiol 93: 177-181.
  27. Kamei Y, Isnansetyo A (2003)Lysis of methicillin-resistant Staphylococcus aureus by 2,4-diacetylphloroglucinol produced by Pseudomonas sp. AMSN isolated from a marine alga International. Journal of Antimicrobial Agents 21: 71-74.
  28. Keel C, Weller DM, Natsch A, Defago G, Cook RJ, et al. (1996) Conservation of the 2,4-diacetylphloroglucinol biosynthesis locus among fluorescent Pseudomonas Pseudomonas strains from diverse geographic locations. Appl Environ Microbiol 62:552-563.
  29. Bangera MG, Thomashow LS (1999) Identification and characterization of a gene cluster for synthesis of the polyketide antibiotic 2,4-diacetylphloroglucinol from Pseudomonas fluorescens Q2-87. J Bacteriol 181: 3155-3163.
  30. Landa BB, Mavrodi OV, Raaijmakers JM, McSpadden-Gardener BB, Thomashow LS, et al.(2002) Differential ability of genotypes of 2,4-diacetylphloroglucinol-producing Pseudomonas fluorescens strains to colonize the roots of pea plants. Appl Environ Microbiol 68:3226-3237.
  31. Duffy BK, Défago G (1999) Environmental factors modulating antibiotic and siderophore biosynthesis by Pseudomonas fluorescensbiocontrol strains. Appl Environ Microbiol 65: 2429-2438.
  32. Raaijmakers JM, Weller DM (1998) Natural plant protection by 2,4-diacetylphloroglucinol-producing Pseudomonas spp. in take-all decline soils. Mol Plant-Microbe Interact 11:144-152.
  33. Raaijmakers JM, Weller DM, Thomashow LS (1997) Frequency of Antibiotic-Producing Pseudomonas spp. in Natural Environments. Appl Environ Microbiol 63: 881-887.
