Research Article - (2017) Volume 9, Issue 1

Accurate Method of HPLC-Ms/Ms Determination of Mycophenolic Acid in Human Plasma

Khokhlov AL1,2, Yaichkov II1,2*, Shitov LN1,2, Dzhurko YA2, Shitova AM2,4, Ryska M3, Kubeš V3, Shabrov VN2 and Miroshnikov AE1
1State Budget-funded Educational Establishment of Higher Professional Education, Ministry of Health of the Russian Federation, Yaroslavl State Medical Academy, Yaroslavl, Russia
2Quinta-Analytica Yaroslavl LLC, Yaroslavl, Russia
3Quinta-Analytica s.r.o., Prague, Czech Republic
4State Budget-funded Educational Establishment of Higher Professional Education, Ministry of Health of the Russian Federation, Yaroslavl State Medical Academy, Yaroslavl, Russia
*Corresponding Author: Yaichkov II, State Budget-funded Educational Establishment of Higher Professional Education, Ministry of Health of the Russian Federation, Yaroslavl State Medical Academy, Yaroslavl, Russia, Tel: 375-296053960


A simple, accurate and precise method was developed using HPLC-MS/MS to quantify mycophenolic acid in human plasma. Mycophenolic acid-D3 was used as internal standard. Sample preparation involved protein precipitation. Chromatographic analysis was performed on a Phenomenex Kinetex C18 (30 mm × 4.6 mm, 2.6 μm) column using acetonitrile-water as the mobile phase. Detection in negative ionization mode was used to quantify mycophenolic acid by multiple reaction monitoring. The calibration curve was linear in the range of 0.5-30 μg/mL, with intra-and inter-batch values for accuracy and precision (coefficient of variation) ranging from 99.76 to 111.38% and from 2.54 to 9.01%, respectively. The method was successfully applied to conduct a pharmacokinetic study of 360 mg coated tablet "Myfortic" in 48 healthy participants; 768 blood samples were analysed.

Keywords: Mycophenolic acid, HPLC-MS/MS, Plasma, Myfortic


Mycophenolate sodium is an immunosuppressive drug which effect is based on selective, reversible and competitive inhibition of the enzyme inosine monophosphate dehydrogenase which is necessary for the synthesis of guanosine, and its incorporation into the DNA molecule. This results in inhibition of growth and division of lymphocytes, induces their apoptosis, which leads to a decrease of immunity [1].

Mycophenolic acid is primarily metabolized by glucuronyl transferase with the formation of the main pharmacologically inactive metabolite-phenolic glucuronide of mycophenolic acid. About 28% of the oral dosage of the drug is exposed to the first-pass degradation in patients with a stable functioning kidney transplant, receiving the base immunosuppressive therapy with cyclosporine in the form of a micro-emulsion.

Mycophenolate sodium is highly variable drug. It is associated with enterohepatic recirculation: glucuronide of mycophenolic acid is secreted with bile into the intestine and is destroyed by deconjugation by gut organisms. Therefore, in 6-8 h after administration the drug noted a second peak of concentration, which corresponds to the reabsorption of deconjugating mycophenolic acid. Bioavailability of the coated tablets is 72%, the absorption rate is 93%, time-to-peak concentration is 1.5-2 h, elimination half-time is 11.7 h, volume of distribution is 50 L. Mycophenolic acid and the glucuronide are highly protein-binding: 97% and 82%, respectively [2]. This drug in combination with cyclosporine and corticosteroids is used in kidney transplantation to prevent rejection [3].

The above features of mycophenolate sodium biopharmaceutical properties make high demands to methodology of pharmacokinetic and bioequivalence studies of drugs containing this substance [4]. Also for the right selection of a dosage it is necessary to control concentration of mycophenolic acid in plasma. The phenyl glucuronide of the drug has the ability of back–conversion after blood sampling collection. It can lead to exaggerated measurements and consequently overstated results of bioanalytical studies.

HPLC-MS/MS is generally used for bioassay [5-7]. There are a lot of methods of determination of mycophenolic acid in human plasma using deproteinization [8-13] and solid-phased extraction [14]. But back-conversion of phenyl glucuronide of mycophenolic acid in plasma storage process has not been investigated. Therefore, development of a new fast and accurate method for measurement of mycophenolic acid plasma concentrations is necessary.

Subjects and Methods

HPLC-MS/MS system for measurement of mycophenolic acid concentrations includes two pumps Flux Instruments 2200 Rheos, autosampler СТС Analytics PAL HTS and triple quadrupole mass spectrometer "Thermo Scientific TSQ Quantum Discovery Max" equipped with HESI ion source.

Reference standard of mycophenolate sodium was produced by Emcure Pharmaceuticals Limited (India), mycophenolic acid-D3 (MPA-D3) and phenyl glucuronide of mycophenolic acid (MPAG) were procured by TLC Pharmachem (Canada) (Figure 1). HPLC grade acetonitrile was obtained from Merck (Darmstadt, Germany). Water was prepared with the help of Direct Q3 UV water purification system (Figure 1).

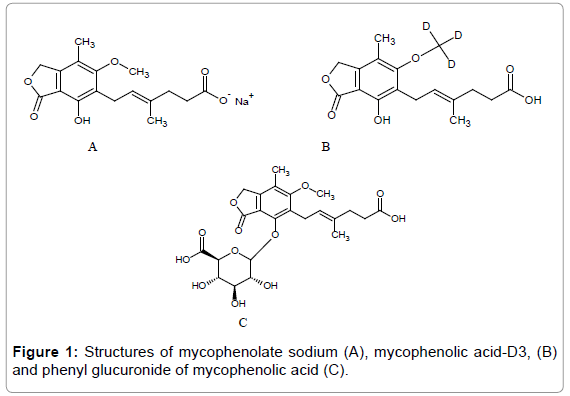

Figure 1: Structures of mycophenolate sodium (A), mycophenolic acid-D3, (B) and phenyl glucuronide of mycophenolic acid (C).

The standard stock solutions of MPA, MPAG and MPA-D3 were prepared by dissolving accurately weighed substances in acetonitrile. Working solutions were prepared by appropriate dilution of stock solutions in acetonitrile. Calibration standards and quality control samples were prepared by adding 50 μL of the working solution to 950 μL of blank plasma. There are eight calibration concentrations: 0.5, 1.0, 4.0, 8.0, 12.0, 18.0, 24.0, 30.0 μg/mL, and six quality control samples: 0.5, 1.5 μg/mL (LQC, low quality control), 5.0, 15.0 μg/mL (MQC, medium quality control), 22.5, 30.0 μg/mL (HQC, high quality control).

The test product was Myfortic 360 mg coated tablet from Novartis Pharma Stein AG, Switzerland (batch number: S0347, expiry date: 12.2014)

Analysis of plasma samples

The plasma samples (50 μL) were deproteinized with internal standard solution (1.5 μg/mL) in acetonitrile (450 μL) and 5 μL portions of supernatant obtained after centrifugation at a speed of 2500 rpm. were directly injected into the chromatographic system.

The chromatographic separation was achieved by using Phenomenex Kinetex C18 (30 mm × 4.6 mm, 2.6 μm) analytical column and Phenomenex Security guard C18 (4 mm × 3 mm) pre-column with gradient elution of the mobile phase composed of acetonitrile and water (Table 1) at a flow rate 0.4 mL/min and a room temperature.

Time (min) Acetonitrile (% v/v) Water (% v/v)
0–1.0 40 60
1.0–1.5 65 35
1.5–2.0 90 10
2.0–2.5 90 10
2.5–3.0 65 35
3.0–3.5 40 60
3.5–4.5 40 60

Table 1: Parameters of gradient elution.

Detection was performed (Table 2) in negative ion mode, using the Heated-ESI ion source. An MRM transition of 319→191+205 m/z was selected for the analyte, and 322→191+205 m/z for the internal standard.

Parameter Value
Spray voltage 3250 V
Capillary temperature 222°C
Sheath gas 30 arb. unit
Sweep gas 2 arb. unit
Aux gas 20 arb. unit
Vaporizing temperature 324°C
Collision gas pressure 1.5 mTorr

Table 2: Parameters of mass spectrometry detection.


Method validation procedures

Validation was conducted in accordance with requirements of FDA [15] and EMEA guidelines [16] on the following parameters: selectivity, linearity, lower Limit of Quantification, accuracy and precision, matrix effect, recovery, carryover effect, dilution integrity and stability.

The chromatograms obtained with blank plasma (6 samples from independent sources, including haemolyzed and hyperlipidaemic plasma) did not have any interference at the retention time of the analyte and the internal standard (Figure 2). Therefore, the developed method is selective.


Figure 2: (A) The chromatograms of blank plasma. (B) Plasma with analyte. (C) Internal standard.

The linearity of analytical procedure was evaluated in the concentration range from 0.5-30.0 μg/mL by measuring area ratio response ("analyte/internal standard"). The correlation coefficient was ranged from 0.9985 to 0.9996. The lower limit of quantification (LLOQ) was 0.5 μg/mL.

Accuracy and precision were determined by analysing of six replicates of QC samples. The results are represented in Table 3 and Figure 3. Diluting plasma sample to half did not affect the accuracy and precision.

Concentration (μg/mL) 0.50 1.50 5.00 15.00 22.50 30.00
Intra-day accuracy and precision
Mean (n=6) 0.54 1.67 5.33 16.93 24.29 31.91
SD 0.02 0.08 0.14 0.74 0.97 1.44
Precision (CV) % 4.42 4.62 2.54 4.36 4.01 4.52
Acc., % 108.62 111.38 106.67 112.85 107.96 106.37
Inter-day accuracy and precision
Mean (n=18) 0.51 1.56 5.19 15.45 22.88 29.93
SD 0.03 0.12 0.18 1.39 1.57 2.24
Precision (CV)% 6.75 7.63 3.42 9.01 6.87 7.48
Acc., % 102.78 104.04 103.83 103.03 101.70 99.76

Table 3: Accuracy and precision for MDA QC samples.


Figure 3: Intra- and inter-day accuracy and precision.

The MDA recovery rate was 84.18% and 90.33% at low and high concentration levels, respectively. Matrix effect was assessed by comparing the mean area ratio of plasma sample with mean area ratio of acetonitrile solutions of MDA and MDA-D3. The Normalized Matrix Factor (NMF) values were 0.892 and 0.877 at low and high concentration levels, respectively; the Coefficients of Variation (CV) for NMF were 11.94% and 1.92%, respectively.

The stability study was carried out at concentrations of 1.50 μg/ mL and 22.50 μg/mL with six replicates of each level. Short-term, long-term, freeze and thaw stability was demonstrated. The results are represented in Table 4.

  Short-term stability (24 h) Long-term stability Freeze and thaw stability
37 days 119 days
1.50 μg/mL
Mean 1.49 1.51 1.55 1.58
Precision, % 4.04 5.72 4.23 5.47
Accuracy, % 99.18 100.38 103.24 105.10
  22.50 μg/ml
Mean 22.38 21.33 22.69 23.30
Precision, % 4.51 2.44 2.82 3.72
Accuracy, % 99.46 94.79 100.86 103.55

Table 4: Stability study of MDA at plasma.

There was no significant carry-over after three high concentration injections: Chromatograms obtained with blank plasma did not have peaks at the retention time of the analyte and the internal standard.

Back-conversion of MPAG was evaluated after addition 50 μL of MPAG acetonitrile solution to 950 μL blank plasma. The concentration of MPAG at plasma samples was 100 μg/mL, which corresponds to a maximum expected concentration of this metabolite in the samples of volunteers. The comparing of concentration of MPA was carried out after preparation of MPAG samples and after 24 h of storage of MPAG samples. There was no significant back-conversion MPAG: concentration of MPA was 2.58% from LLOQ.

The results of all validation tests were acceptable.

The pharmacokinetic study

The investigation was conducted in accordance with requirements of the National Standard of the Russian Federation GOST R 52379- 2005 “Good Clinical Practice requirements” [17], guidances of FDA [18] and EMEA [19] as well as in accordance with ethical principles of the Declaration of Helsinki [20].

The study was conducted on 48 healthy participants aged from 18 to 45 years that met the inclusion criteria: verified diagnosis “healthy”, body mass index in the range of 18.5 kg/m2 to 24.9 kg/ m2, body weight more than 45 kg; ability to follow the requirements of the study protocol, lack of allergy, normalities revealed by clinical instrumental and laboratory investigations at screening, lack of hypersensitivity to mycophenolate sodium, mycophenolate mofetil or to any other substance included in the formulation of the drug, lack of cardiovascular, bronchopulmonary, neuroendocrine, immune, gastrointestinal, liver, kidney, or blood diseases; lack of acute infectious disease within the 4 weeks preceding the investigation; lack of intake of any medicinal products within 2 weeks of the start of the study, lack of excessive alcohol consumption.

All participants were tested for use of drugs and alcohol. Women additionally performed a pregnancy test. Blood samples for subsequent quantitative determination of mycophenolic acid were collected into a pre-labelled vacuum centrifuge tubes containing EDTA as an anticoagulant prior to administrating the drug, 15 min, 30 min, 45 min, 1 h, 1.5 h, 2 h, 3 h, 4 h, 6 h, 8 h, 12 h, 18 h, 24 h, 48 h, 72 h after administration of a tablet of "Myfortic" at a dose of 360 mg [4]. After the blood sampling procedure, tubes were centrifuged at 2500 rpm for 10 min. The resulting plasma was immediately frozen at -20°C until it was assayed. There were taken and analysed 768 blood samples.

Pharmacokinetic parameters such as maximum measured plasma concentration (Cmax), area under the pharmacokinetic “concentrationtime” curve from zero to the last blood sampling procedure (AUC0-t), relative absorption rate (Cmax/AUC0-t), time-to-peak concentration (Tmax) were calculated. Statistical analyses performed with the Rv application packages 3.2.1, Module Bear (Lee, Hsinya and Lee, Yungjin (2014), bear: Data Analysis Tool for Average Bioequivalence and Bioavailability, Rpackage version 2.6.4) and StatSoft Statistica v.12. The results are represented in Table 5 and Figure 4.

Parameters Cmax, μg/ml Tmax, h AUC0-t, μg ∙h/ml Cmax/AUC0-t, h-1
M ± SD 12.29 ± 5.53 2.9 ± 2.4 22.90 ± 11.11 0.5591 ± 0.1812
Min 1.15 1.0 6.90 0.1667
Max 23.34 18.0 57.32 0.9939

Table 5: Pharmacokinetic parameters of coated tablet “Myfortic” 360 mg.


Figure 4: Averaged pharmacokinetic profiles of plasma mycophenolic acid concentrations after a single dose of "Myfortic".


The new accurate, selective, fast method was developed for determining concentration of mycophenolic acid in blood plasma by using HPLC-MS/MS. Validation was conducted in accordance with requirements of FDA and EMEA guidelines. Back-conversion of MPAG was studied. This procedure has been used to investigation the pharmacokinetics of coated tablets of mycophenolate sodium.


  1. BuddeK, Glander P (2008) Pharmacokinetic principles of immunosuppressive drugs. AnnTransp 13: 5-10.
  2. SalvadoriM, Holzer H, Mattos A, Solinger H, Arns W, et al. (2003) Enteric-coatedmycophenolate sodium is therapeutically equivalent to micophenolate mofetil in de novo renal transplantrecipients.  Am J Transp 4: 231-236.
  3. Karam G, Kalble T, Alcaraz A, Aki FT, Budde K,et al. (2013) Guidelines on renal transplantation. Eur Assoc Urol.
  4. KhokhlovAL, Lileeva EG, Sinitsina OA, Speshilova SA, Demarina SM, et al. (2014) Theproblems of undertaking bioanalytical part of bioequivalence studies ofmedicines in Russia. Pharmacokin Pharmacodyn 1: 37-43.
  5. GuanL, Li H, Chen Z, Frick G, Nichols A (2016) An Assessment of thePharmacokinetics and Tolerability of Single-Ascending Doses of DesvenlafaxineAdministered to Healthy Chinese Subjects. J Bioequiv Bioavailab 8: 99-105
  6. KhokhlovAL, Shitov LN, Ryska M, Dzhurko YA, Kubes V, et al. (2016) The PharmacokineticProperties and Bioequivalence of Methyldopa Formulations: Results of anOpen-label, Randomized, Two-period, Crossover, Single-dose Study. J BioequivBioavailab 8: 185-190.
  7. VargasM, Villarraga EA (2016) Bioequivalence Study of Two Formulations ContainingLurasidone 80 mg Tablets in Healthy Colombian Volunteers. J Bioequiv Bioavailab8: 220-223.
  8. BenechH, Hascoet S, Furlan V, Durrbach A (2007) Development and validation of anLC/MS/MS assay for mycophenolic acid in human peripheral blood mononuclearcells. J Chrom B 853: 168-174.
  9. BrandhorstG, Streit F, Goetze S, Oellerich M, Armstrong VW (2006) Quantification byLiquid Chromatography Tandem Mass Spectrometry of Mycophenolic Acid and ItsPhenol and Acyl Glucuronide Metabolites. Clin Chem 52: 1962-1964.
  10. DecaveleASC, Favoreel N, Heyden FV, Verstraete AG (2011) Performance of the Roche TotalMycophenolic Acid assay on the Cobas Integra 400, Cobas 6000 and comparison toLC-MS/MS in liver transplant patients. Clin Chem Lab Med 49: 1159-1165.
  11. FleischmannT, Merdink J, Faulconbridge S, Clarke T (2007) LC/MSMS Methods for QuantitativeDetermination of Mycophenolic Acid in Human Plasma. Curr Sep Drug Devel 22:27-29.
  12. KlepackiJ, Klawitter J, Bendrick-Peart J, Schniedewind B, Heischmann S, et al. (2012) Ahigh-throughput U-HPLC-MS/MS assay for the quantification of mycophenolic acidand its major metabolites mycophenolic acid glucuronide and mycophenolic acidacyl-glucuronide in human plasma and urine. J Chrom B 884: 113-119.
  13. UpadhyayV, Trivedi V, Shah G, Yadav M, Shrivastav PS (2013) Determination ofmycophenolic acid in human plasma by ultra-performance liquid chromatographytandem mass spectrometry. J Pharm Anal 4: 205-216.
  14. AnnesleyTM, Clayton LT (2005) Quantification of Mycophenolic Acid and GlucuronideMetabolite in Human Serum by HPLC-Tandem Mass Spectrometry. Clin Chem 51:872-877.
  15. Foodand Drugs Administration (2013) Guidance for Industry: Bioanalytical methodvalidation. Department of Health and Human Services, USA.
  16. European Medicines Agency (EMEA) (2009) Guidance on Validation ofBioanalytical Methods. London, UK.
  17. Federal Agency on Technical Regulating and Metrology (2005) GoodClinical Practice requirements. National Standard of the Russian Federation, Moscow,Russia.
  18. Foodand Drugs Administration (2010) Guidance for Industry: Waiver of In vi vo Bioavailability and Bioequivalence Studies for Immediate Release Solid OralDosage Forms Based on Biopharmaceutics Classification System. U.S. Departmentof Health and Human Services.
  19. EuropeanMedicines Agency (EMEA) (2010) Guidance on the investigation of bioequivalence,London, UK.
  20. WorldMedical Assembly (2013) Declaration of Helsinki of the AMM-Ethical Principlesfor Medical Research in humans, 64th General Assembly, Fortaleza,Brazil.
